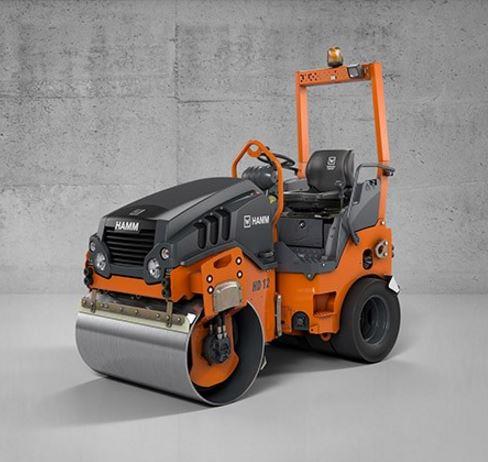

New Hamm HD 12 VT Compactor for Sale

Articulated combi roller with vibratory drum

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Central suspension point
Dimensions
Length 96.8 in. (2,460 mm)
Width 51.6 in. (1,310 mm)
Height 94 in. (2,390 mm)
Weight 5,721.97lbs
Wheelbase 67 in. (1,700 mm)
Inside Turning Radius 93.3 in. (2,370 mm)
Steering Angle +/-32°
Drum Front: Smooth/Non-Split
Engine
Engine Make Kubota
Engine Model D1503-M-E3B
Engine Type 3-cylinder
Horsepower 30.7 hp (22.9 kW) @ 2,700 rpm
Fuel Tank Capacity 11 gal. (42 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 47.24 in. (1,200 mm)
Drum Diameter 28.3 in. (720 mm)
Nominal Amplitude Front I / II: 0.02 in. (0.52 mm)
Vibration Frequency Front I / II: 3,120 / 4,020 vpm (52 / 67 Hz)
Centrigual Force Range Front I / II: 7,200 / 11,700 lbs. (32 / 52 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 47.6 gal. (180 l)
Application Asphalt
Static Linear Drum Load 62.9 lbs./in. (11.2 kg/cm) front
Weights
Operating Weight 7,319 lbs. (3,320 kg) maximum
5,721 lbs. (2,595 kg) with ROPS
Axle Load 2,954 lbs. (1,340 kg) front
2,767 lbs. (1,255 kg) rear
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 99.6”
  • Width: 51.6”
  • Total Height: 97.4”
  • Drum Width: 47.2”
  • Height, loading, min: 69”
  • 12 V outlet
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling with interval switch
  • Operator’s platform with entry from both sides
  • Left and right drive lever
  • Mechanical battery isolation switch
  • Vibration-isolated operator’s platform
  • Track offset, mechanical
  • Automatic vibration system
  • Water filtering (triple)
  • Central lifting bracket
  • Central water drain
  • Plastic scraper, foldable
  • ROPS, foldable
  • Protective roof, plastic tarpaulin
  • Edge pressing and cutting equipment
  • Back-up alarm
  • Working light
  • Battery isolation switch operated with external activation
  • V-belt protection
