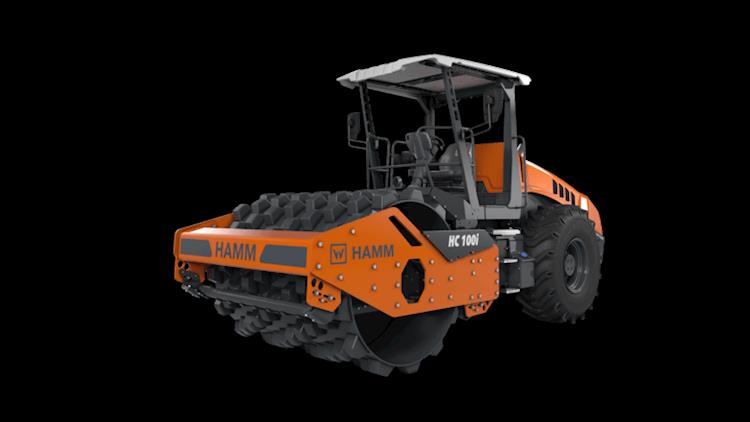

Kirby-Smith Machinery has a Hamm HC 100i P Compactor for Sale. The compactors of the HC series offer an innovative and powerful complete package for earthmoving. With impressive compaction performance, intuitive handling and maximum driving comfort, the single-drum compactors are ideally suited for almost all earthmoving tasks. The compactors of the HC series are also characterized by environmentally friendly and modern engines.
|
| Dimensions | |
|---|---|
| Length | 240.8” |
| Width | 97.4” |
| Height | 120.2” |
| Weight | 25,269 lbs. (no cab, wo/ROPS) |
| Wheelbase | 128.6” |
| Ground Clearance | 18.1” |
| Inside Turning Radius | 162.6” |
| Curb Clearance | 18.8” (left/right) |
| Centrifugal force | 34,875 lbs. (Front, II) 56,250 lbs. (Front, I) |
| Width over Tires | 84.8” |
| Tire Size | TR 23.1-26 12 PR |
| Front Slope Angle | 33.7° |
| Rear Slope Angle | 23.7° |
| Engine | |
|---|---|
| Engine Make | John Deere |
| Engine Model | JDPS 4045EWS |
| Cylinders | 4 |
| Horsepower | 114 HP |
| Fuel Tank Capacity | 74 GPM |
| Emission Standards | EU Stage V/EPA Tier 4 |
| Rated Power | 2000 RPM |
| Drivetrain | |
|---|---|
| Tires | 2 |
| Steering | Articulated |
| Speeds | 0-7.4 MPH |
| Climbing ability | 61% |
| Drive Regulation | Hammtronic |
| Operational | |
|---|---|
| Drum Width | 84.3” |
| Drum Diameter | 66.4” |
| Drum Shell Thickness | 0.8” |
| Vibration Frequency | 2,160 VPM (Front, II) 1,800 VPM (Front, I) |
| Static Linear Drum Load | 177.8 lbs./in |
| Drum Type | Compactor with padfoot drum |
| Amplitude | 0.033” (Front, II) 0.077” (Front, I) |
| Number of Padfeet | 140 |
| Padfeet Height | 3.9” |
| Weights | |
|---|---|
| Operating Weight | 26,868 lbs. (w/ROPS) 27,419 lbs. (w/cab) 31,598 lbs. (max.) |
| Axle Load | 12,436 lbs. (Rear) 14,983 lbs. (Front) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Hamm |
| MODEL | HC 100i P |
