NEW MINING EXCAVATOR
Powerful model increases performance in quarry and mining applications

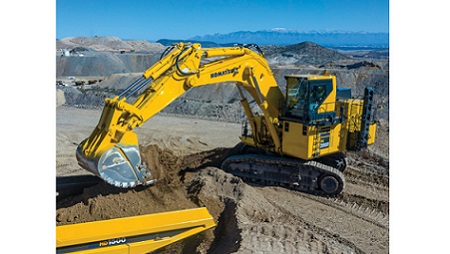

Typically, large machinery is used for high-volume digging when the top priority is moving mass amounts of material quickly. Another reason is completing the job in the most efficient and cost-effective manner. Komatsu Senior Product Manager, Mining Support Equipment Joe Sollitt said companies can better achieve both objectives with the new 200-ton-class PC2000-11 excavator that delivers increased horsepower, compared to the Dash-8 model it replaces.
“Customers told us they want better multifunction performance and productivity than the previous model and the competition,” Sollitt said. “With more available engine horsepower, we were able to increase pump absorption and re-engineer the engine-pump-control logic. In combination with a more efficient hydraulic system, the PC2000-11 can load out more material per shift.”
The upgraded excavator has four working modes to tailor machine performance to operating conditions and maximize production and/or efficiency. Among them is an all-new Power Plus (P+) mode that increases productivity up to 12 percent while moving more material per gallon of fuel burned.
Greater reliability, durability
Sollitt emphasized that Komatsu designed the PC2000-11 for greater reliability and durability. It has thicker, stronger boom plates and castings that are highly resistant to bending and torsional stress. The center and track frame were strengthened, and the excavator has larger diameter carrier rollers for extended service life.
“No stone was left unturned when designing this new model. The work equipment and superstructure were engineered to withstand the most demanding applications, and service life of the undercarriage components has been extended. A ground-level service center is standard,” said Sollitt. “The PC2000-11 maintains the power module design that service technicians have grown to love. It provides low noise levels in the cabin, excellent accessibility to major components and reduced labor hours when it comes time for planned overhaul.”
Brief Specs on Komatsu’s PC2000-11 Excavator
| Model | Net Horsepower | Operating Weight |
Bucket Capacity |
| PC2000-11 | 1,046 HP | 445,179-456,926 lbs. | 15.7-17.9 cu yd |
Other standard features of the new PC2000-11 include:
Tier 4 Final Certified Engine Technology
- Komatsu’s new U.S. EPA Tier 4 Final emission regulation-compliant SSA12V140E-7 engine has a net horsepower of 1,046hp (up from 956hp on the PC2000-8)
- Dual Komatsu Diesel Particulate Filters (KDPF)
- No Selective Catalytic Reduction (SCR) system, so does not require a Diesel Exhaust Fluid (DEF)
- Auto Idle and Auto Idle Shutdown to help reduce fuel consumption
Accessibility and Operator Comfort
- 45° hydraulically actuated boarding ladder and secondary access ladder
- Platforms and handrails aid service and maintenance
- New, large capacity air conditioning system
- Large cab with excellent visibility
Work Equipment and Hydraulics
- New EPC valves optimize main valve spool control, increasing work equipment speed, especially during compound movement
- New, stronger boom design for increased durability to complement the productivity enhancements
- Heavy lift mode – 10% more boom lifting force
