Trail King HT Hydraulic Tail

New Trail King Open Deck Construction for Sale

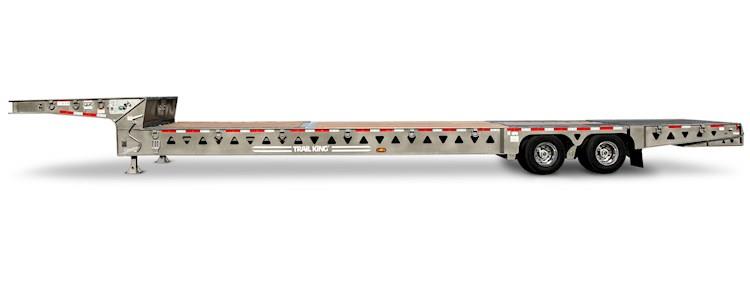

New Trail King HT Hydraulic Tail Trailer for Sale

Reduced load angle of 12.5 degrees, improved weight distribution and a redesigned tail make the Trail King Hydraulic Tail your go-to choice. This trailer is easy to operate with new controls and a smaller remote and features wider track axles for increased stability. The HT offers the most scalability while maintaining dependable load-hauling strength and durability.

  • Front Access Panel: Front Access Panel offers easy access for hydraulic, air, and electrical lines.  The zinc-coated panel may be opened for internal maintenance by removing four bolts
  • Simplified Operation: Lighted, push/pull hydraulic controls (on both sides of neck) and remote (winch only).  Optional full function remote (shown) offers 2-speed operation.  Slow speed function improves maneuverability
  • Upper Deck Ramp: 10’ hydraulic, recessed ramp at an 11 degree load angle.  A locking mechanism ensures that the upper deck ramp stays in place during loading
  • Winch, Roller & Skid Plate: 20,000-lb. winch & 9/16” cable with winch guard and 80’ cable with locking safety hook.  A skid plate is standard, or opt for a roller (right)
  • Side-Access Toolboxes: Two side-access toolboxes at front of upper deck with chrome T-handles and aluminum floor for corrosion resistance.  Option for top access with gas shock and/or interior lighting
  • Aluminum Valve Cover: Protective panel on the underside of the gooseneck shields hydraulic valving.

Models

  • TK80HT
Body
Upper Deck Length 9’ (straight drop)
Paint/Finish 2-part epoxy primer and polyurethane topcoat
Ramp 10’ recessed upper deck ramp w/ramp locks (11 degrees)
Floor 10-ga. Floor plate decking on upper deck
Decking 1 3/8” (NET) apitong decking (deck/upper deck ramp)
Tail Tail raises to 58” dock height & lowers to the ground
Dimensions
Length 47’11”
Width 102”
Operational
Axles 25,000 lbs. (5/8” wall)
Brakes 4S2M ABS brakes
Suspension Air ride suspension
Tires 245/70R 17.5 – 18 ply radial tires
Capacity 50,000 lbs. (in 10’)
80,000 lbs. (uniform)
Wheels 49” loaded 5th wheel height
6.75 x 17.5 8-hole steel disc wheels
Winch 20,000 lbs. (hydraulic winch w/level wind) (mounted above kingpin)
80’ winch cable w/locking safety hook
Load Angle 12.5 degree with 245/70R 17.5 tires
Swing Clearance 88” (for 14” kinpin)
Axle Spacing 49”
Kingpin Setting 14" w/88"swing
Hydraulic Tail 12'2"
8' main tail with 52" fold-under
Electrical
Electrical Electrical system per DOT regulations
Lighting LED lights, 50 state legal
Mid-turn signal clearance lights
Three tail lights per side (amber in center)
  • Winch guard
  • Wireless remote for winch (1 function, 2 buttons)
  • 2 tool boxes at front of upper deck
  • ¼” floor plate over wheels w/last 2’ Star Traction over ¼” smooth steel
  • Star Traction over 10 ga. Smooth steel on deck and fold-under
  • Air ride raising /lowering with switch on upper deck
  • Internal 2-way key slots alternating w/stake pockets in outer beams approx. 24” on center
  • Automatic slack adjusters
  • One-piece oil seals
  • Zip Tork axle nuts
  • Lighted hydraulic valve controls (each side)
  • 2 speed park stands
  • Rubber mounted sealed lights with sealed harness system
  • Red & white conspicuity markings
  • Mud flaps
  • Heavy duty I-beam style tail hinge beam
  • Twelve vertical supports inside fold under
  • Top access toolbox with gas shocks & lighting
  • Additional light packages
  • Work light packages
  • Side access steps
  • Tie-down packages
  • RTAC compliant (custom only)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

All machines are not available at all locations.
