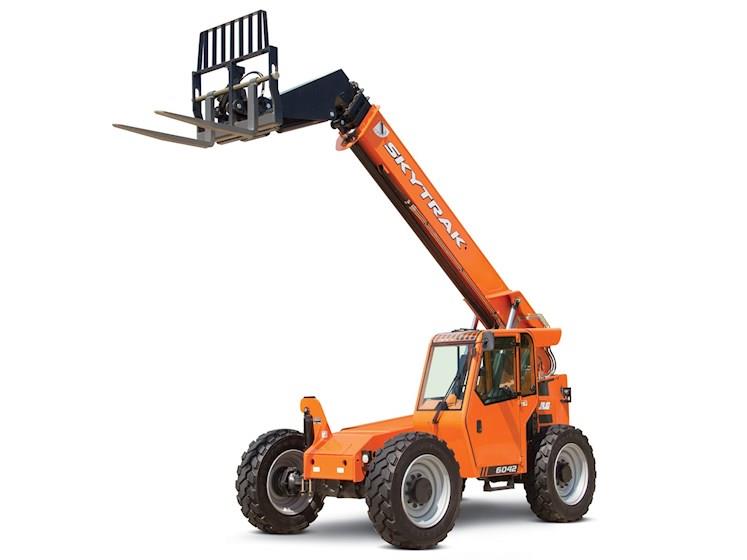

New Sky Trak 6042 Telehandler for Sale

SkyTrak® telehandlers reach the greatest heights of performance. They feature three steering modes to meet various maneuverability requirements.

  • Equipped with Tier 4 Final engines for greater fuel efficiency and reduced emissions
  • Choose from our award-winning selection of all terrain telehandler

SkyTrak® is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they've been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible on SkyTrak telehandlers for quicker maintenance.
Body
Max. Load @ Full Height 6,000 lbs.
Dimensions
Length 19’6”
Width 8’3”
Height 8’6”
Weight 25,100 lbs.
Wheelbase 9’5”
Ground Clearance 1’3”
Turning Radius 14’
Engine/Drivetrain
Transmission Nr Forward Gears Standard-4
Nr Reverse Gears-3
Engine Make Cummins
Engine Model QSF3.8L Tier 4 F
Cylinders 4
Horsepower 74 HP (Optional-85 HP)
Displacement 229 cu in. 3.8 L
Torque 1400 rpm 340 lb-ft 461 Nm
Fuel Tank Capacity 35 gallons
Rated RPM 1400 rpm
Operational
Pump Gear Pump
Brakes Hydraulically actuated inboard wet disc brakes.
Emergency brake with transmission declutch feature.
Service Brake: Wet Multi-Disc
Tires Standard 370/75-28
Optional Foam-Filled or Solid
Steering 4-Wheel, Power steering., Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front., Integrated arm rest.
Front Axle Full-time planetary 4-wheel drive; High Bias, Limited Slip
Rear Axle Full-time planetary 4-wheel drive.
Oscillating rear axle with Stabil-Trak system.
  • New, intuitive single joystick controls all boom functions
  • Maximize productivity with improved boom speeds
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
  • Greater job site versatility—rear counterweight includes an integrated tow hitch

Instruments

  • DEF gauge
  • Voltmeter
  • Hourmeter
  • Engine oil pressure gauge
  • Temperature gauge
  • Fuel gauge

Attachments

  • Standard Carriage: 50 in., 60 in., 72 in.
  • Side-Tilt Carriage: 50 in., 60 in., 72 in.
  • Swing 90° Carriage: 72 in.
  • Side-Shift Carriage: 50 in.
  • Dual Fork Positioning Carriage: 50 in.
  • Tower: 8 ft 50" Standard Carriage
  • Pallet Forks: 2.36 in. x 4 in. x 48 in., 2.36 in. x 5 in. x 48 in., 2.00 in. x 6 in. x 72 in.
  • Lumber Forks: 2 in. x 7 in. 60 in., 2.36 in. x 6 in. x 60 in.
  • Cubing Forks: 2 in. x 2 in. x 48 in.
  • Fork Extensions: 90 in.
  • Material Bucket: 72 in., 1.0 cu yd; 96 in., 1.5 cu yd; 102 in., 2.0 cu yd.
  • Grapple Bucket: 96 in., 1.75 cu yd
  • Truss Boom: 12 ft, 2000 lbs., 15 ft, 2000 lbs., 12 ft w/winch, 2000 lbs.
  • Fork Mounted Work Platform: 8 ft, 1000 lb. Capacity
  • Lifting Hook, Fork Mounted
  • Material Handling Arm: 4000 lbs. capacity
  • Trash Hopper: 72 in., 1.9 cu yd; 2000 lb. capacity
  • Enclosed Cab
  • Work Lights
  • Road Lights
  • Rotating Beacon
  • Fenders
  • Reverse Sensing System
  • Air Conditioning
  • 85 hp (63 kW) Tier 4 Final Engine

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Sky Trak
MODEL 6042

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Sky Trak 6042

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Sky Trak 6042 Telehandler for Sale

SkyTrak® telehandlers reach the greatest heights of performance. They feature three steering modes to meet various maneuverability requirements.

  • Equipped with Tier 4 Final engines for greater fuel efficiency and reduced emissions
  • Choose from our award-winning selection of all terrain telehandler

SkyTrak® is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they've been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible on SkyTrak telehandlers for quicker maintenance.
GENERAL INFORMATION
Manufacturer
Sky Trak
Model Year
Model
6042
Condition
NEW
Body
Max. Load @ Full Height
6,000 lbs.
Dimensions
Length
19’6”
Width
8’3”
Height
8’6”
Weight
25,100 lbs.
Wheelbase
9’5”
Ground Clearance
1’3”
Turning Radius
14’
Engine/Drivetrain
Transmission
Nr Forward Gears Standard-4 Nr Reverse Gears-3
Engine Make
Cummins
Engine Model
QSF3.8L Tier 4 F
Cylinders
4
Horsepower
74 HP (Optional-85 HP)
Displacement
229 cu in. 3.8 L
Torque
1400 rpm 340 lb-ft 461 Nm
Fuel Tank Capacity
35 gallons
Rated RPM
1400 rpm
Operational
Pump
Gear Pump
Brakes
Hydraulically actuated inboard wet disc brakes. Emergency brake with transmission declutch feature. Service Brake: Wet Multi-Disc
Tires
Standard 370/75-28 Optional Foam-Filled or Solid
Steering
4-Wheel, Power steering., Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front., Integrated arm rest.
Front Axle
Full-time planetary 4-wheel drive; High Bias, Limited Slip
Rear Axle
Full-time planetary 4-wheel drive. Oscillating rear axle with Stabil-Trak system.
