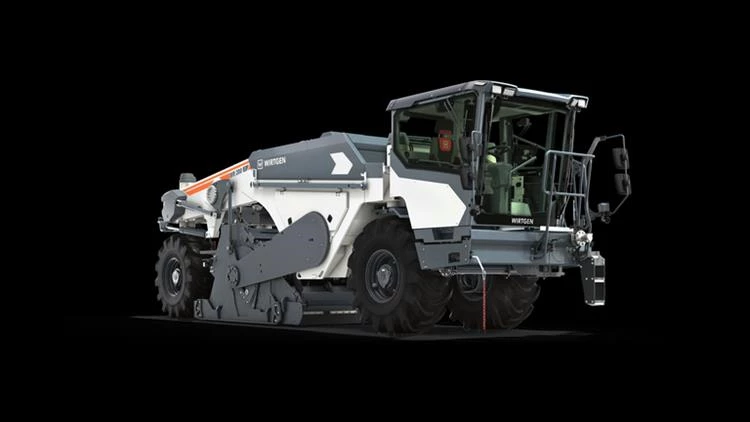

New WIRTGEN WR 200 X Stabilizer/Cold Recycler for Sale

The WR series cold recyclers and stabilizers have a variable mixing chamber and microprocessor-controlled injection systems for the addition of bitumen emulsion, water, or foamed bitumen. Thanks to an efficient hydraulic flow divider, the all-wheel drive provides maximum traction, while the four-fold full-floating axles ensures best possible ground clearance in challenging terrain. The WR series machines are therefore ideal for a variety of application scenarios ranging from cold recycling - structural road rehabilitation - to the stabilization of various construction materials such as, for example, in soil stabilization or consolidation in the construction of traffic infrastructure.

Cold Recyclers and Stabilizers for Maximum Mixing Performance and Quality

  • The WR series machines are ideal for a variety of application scenarios from cold recycling and structural road rehabilitation to the stabilization of a wide range of construction materials in processes such as soil stabilization or consolidation in road construction.
  • The WR 200 X impresses with compact dimensions and low machine weight that guarantee maximum flexibility when transporting it from place to place.
  • The intuitive man-machine interface (MMI) of the X-Tier models provides comprehensive assistance for proper operation to increase the in-situ mixing quality of the construction material being produced and to boost machine productivity.
  • The MIX ASSIST digital components and the WIRTGEN GROUP COPILOT enable significantly greater efficiency, which in turn leads to considerably lower operating costs per square meter.
Body
Tires 620/75 R26
Dimensions
Length 30’2”
Width 8’4”
Height 9’10”
Weight 54,013 lbs.
Ground Clearance 1’3”
Transport Length 30’2”
Transport Height 9’10”
Transport Width 8’4”
Lateral Inclination 8°
Engine
Engine Make Mercedes Benz/Deutz
Engine Model OM 470 LA/TCD 10.7
Engine Type EU Stage 5/US EPA Tier 4f
Horsepower 429 HP
Displacement 653 in³
Fuel Consumption 10.3 GPH (full load)
9.2 GPH (jobsite mix)
Fuel Tank Capacity 219 Gallons
Water Tank Capacity 100 Gallons
Number of Cylinders 6
Drivetrain
Working Speed 7.8 MPH
Hydraulic
Hydraulic Oil Capacity 53 Gallons
Operational
Cutting Diameter 4’10”
Working Width 6’7”
Working Depth 20”
AdBlue Tank Capacity 21 Gallons
Electrical
Power Supply 24 V
Sound Power ≤106 dB(A) (EN 500-3: engine)
≤73 dB(A) (operator’s platform)
  • Exhaust emissions category: EU Stage 5/US EPA Tier 4f
  • Working speed: 7.8 MPH
  • Working width max: 6’7”
  • Working depth: 20”
  • Operating weight: 54,013 lbs.
  • Displacement: 653 in³
  • Maximum power: 429 HP





Standard Equipment

  • Machine Control and Leveling System
    • Automatic function for positioning and end of cut process
    • Self-explanatory diagnostic technology with continuous function monitoring
    • Separate CAN bus systems for increased machine reliability
  • Operator’s Platform
    • Roll-over protection system (ROPS and FOPS) integrated in the cab frame
    • Safety seat belt as support system for the operator
    • Comfortable, high-quality operator’s cabin with flexible mountings, roof hatch and vent window on the right for ventilation
    • Recirculating and fresh air filters can be changed without tools
    • Ergonomic, air-cushioned operator’s seat
    • User-friendly working environment with intuitively laid out controls on the respective arm consoles
    • Automatic air conditioner, heater and radio
    • LED working lights integrated in the operator’s cabin roof
    • Steering operation either by steering wheel or equivalent finger-tip steering in the left arm console
    • Large windows with an excellent view of the respective work area and built-in windshield wipers
    • Mirrors on right and left in the front area of the machine
    • In order to prove an ideal view over the zero edge, the operator’s cabin can be shifted over the right-hand side of the machine
    • Reverse assist with graphic auxiliary lines in the camera image
    • 90° revolving operator’s seat
    • Various shelves and storage compartments as well as 12 V and USB type A/C sockets
  • Track Unit and Height Adjustment
    • Four different steering modes for easy maneuvering with a minimum turning radius
    • Powerful all-wheel drive for maximum traction
    • 4-way oscillation with lifting column concept for optimum cross-country mobility and ground clearance
  • Miscellaneous
    • European type certification, EuroTest mark and CE conformity
    • Comprehensive LED lighting for the working area and the surroundings
    • Extensive safety package with 3 EMERGENCY STOP switches
    • “Welcome-and-Go-Home-Light” with LED lighting in the ladder area
    • Comprehensive tool kit in lockable storage compartment

Standard Equipment, can be replaced with optional equipment if desired

  • Machine Control and Leveling System
    • Transverse tilt display
  • Operator’s Platform
    • Rear view camera with graphic reverse assistant
  • Miscellaneous
    • Standard painting in RAL 9001 (cream)
    • John Deere Operations Center: Digital solutions for optimizing processes, machines, and services
    • Storage compartment at the rear of the machine for tool
  • Milling and Mixing Unit
    • Standard rotor housing FB2400
  • Milling and Mixing Rotor
    • DURAFORCE milling and mixing rotor FB2400 HT22 PLUS LA20 with 120 WCC tools and 24 round-shank picks D22
    • DURAFORCE milling and mixing rotor FB2400 HT22 PLUS LA25 with 152 round-shank picks
    • DURAFORCE milling and mixing rotor FB2400 HT22 PLUS LA25 with 128 WCC tools and 24 round-shank picks D22
  • Injection System/Addition of Binders
    • Single spraying system with VARIO spraying bars for water or bitumen emulsion (211 gal/min (800 l/min))
    • Single spraying system for water (476 gal/in (1,800 l/min))
    • A filter unit for VARIO spraying system for water or bitumen emulsion (211 gal/min (800 l/min))
    • One Filter unit for spaying unit for water (476 gal/min (1,800 l/min))
    • Hose connection for spraying systems, optional for tanker or Camlock
  • Machine Control and Leveling System
    • Cross-slope sensor
  • Operator’s Platform
    • Rear view camera with graphic reverse assist, four additional cameras, and an extra 12-inch HD touch color display
  • Miscellaneous
    • Painting in one special color (RAL)
    • Painting in two special colors (RAL)
    • Version without JDLINK
    • Pre-fitting for WPT Stabilizing and AutoTrac
    • Large storage compartment at the rear of the machine for tool and up to 20 toolboxes
    • USB interface for retrieving the job data
    • WPT (WIRTGEN GROUP Performance Tracker) Stabilizing
    • WPT (WIRTGEN GROUP Performance Tracker) Stabilizing and AutoTrac (satellite-enabled steering system)
    • AutoTrac satellite-based steering system
    • High-pressure water cleaner at 2,176 psi (150 bar) and 4 gal/min (15 l/min)
    • Battery-operated hydraulic unit
    • Milling drum rotation device
    • Pneumatic hammer with pick ejector and driver mount
    • Hydraulic round-shank pick ejector
    • Additional side storage compartment for 8 toolboxes
    • “Go to tool change” control unit for rotor tool exchange
    • Diesel tank filling pump with 24 ft 6 in (7.50 m) suction hose
    • Wiggins fast fill system for diesel refuelling
    • Suction hose for water or emulsion 3”, 5000 LG – connections optionally in tank truck or Camlock type
    • Support arm for holding the push bar and feed lines whilst changing tankers
    • Central lubrication system
