VOGELE VR 600

VOGELE VR 600

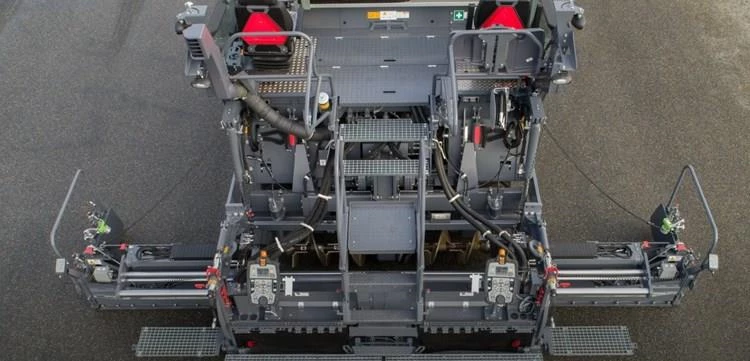

New Vogele VR 600 Screed for Sale

This comes in VR 600 & VR 600 -5 Screeds.

Like the VF 600, the VR 600 Extending Screed is tailored to meet the requirements of the North American and Australian markets.

Extendable Screed for the Dash 5 Generation

Robust yet flexible: Thanks to the newly designed guide system, the VR 600 with rear-mounted extensions features precise screed width control together with the ErgoPlus 5 operating concept. Its optimized design offers good visibility of all relevant paving areas. Developed for the 10-foot highway-class pavers, it is particularly suitable for medium to large paving jobs and high paving speeds in North America.

The precision extending screed for 10-foot pavers of the Highway Class

The VR 600 Extending Screed has been specially developed for Highway Class pavers and is ideally suited to the requirements of road construction in the USA and Australia. The rear-mounted VÖGELE screed is the ideal tool for paving in widths between 10 ft and 19 ft 8 in. Equipped with our proven electrical screed heating system, the VR 600 Extending Screed builds superbly even, top-quality road pavements.


Dimensions
Width 10 ft.
Weight 8,270 lbs.
Depth 5 ft.
Height Adjustment VF 600: -0.2" to 1.4"
Screed Weight VR 600: 8,380 lbs.
VR 600 -5: 8,270 lbs.
Screed Depth 5'
Engine
Output Generation Three-phase AC generator
Hydraulic
Hydraulically Adjustable 10" to 19'8"
Operational
Heating System Screed plates, heated electrically by heating rods
Working Width 10 ft. - 19 ft. 8 in.
Working Depth 4 ft. 1 in.
Vibrator Speed 50 Hz, eccentric
Center Crown Adjustment -2.5% to 5%
Frequency VF 600 -5: 50 Hz
Controls VF 600: electric, by heating rods
VF 600 -5: fully automatic, thermostat-controlled
Heating Rods On screed plates
Compacting System V
Version: eccentric vibrators
Slope, extending units 10%
Paving
Paving Width VF 600: 10'-25'11"
VF 600 -5: 10'-28'3"
Bolt-On Extensions VF 600: 2'6"-10"
VF 600 -5: 26"
  • Type: Extending Screeds
  • Maximum Paving Width: 28’3”
  • Minimum Paving Width: 10’
  • Compacting/Screed Systems: V (with vibration)
  • Basic Width: 10’
  • Infinitely Variable Range: up to 19’8”

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE VOGELE
MODEL VR 600

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

VOGELE VR 600

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Vogele VR 600 Screed for Sale

This comes in VR 600 & VR 600 -5 Screeds.

Like the VF 600, the VR 600 Extending Screed is tailored to meet the requirements of the North American and Australian markets.

Extendable Screed for the Dash 5 Generation

Robust yet flexible: Thanks to the newly designed guide system, the VR 600 with rear-mounted extensions features precise screed width control together with the ErgoPlus 5 operating concept. Its optimized design offers good visibility of all relevant paving areas. Developed for the 10-foot highway-class pavers, it is particularly suitable for medium to large paving jobs and high paving speeds in North America.

The precision extending screed for 10-foot pavers of the Highway Class

The VR 600 Extending Screed has been specially developed for Highway Class pavers and is ideally suited to the requirements of road construction in the USA and Australia. The rear-mounted VÖGELE screed is the ideal tool for paving in widths between 10 ft and 19 ft 8 in. Equipped with our proven electrical screed heating system, the VR 600 Extending Screed builds superbly even, top-quality road pavements.


GENERAL INFORMATION
Manufacturer
VOGELE
Model Year
Model
VR 600
Condition
NEW
Dimensions
Width
10 ft.
Weight
8,270 lbs.
Depth
5 ft.
Height Adjustment
VF 600: -0.2" to 1.4"
Screed Weight
VR 600: 8,380 lbs. VR 600 -5: 8,270 lbs.
Screed Depth
5'
Engine
Output Generation
Three-phase AC generator
Hydraulic
Hydraulically Adjustable
10" to 19'8"
Operational
Heating System
Screed plates, heated electrically by heating rods
Working Width
10 ft. - 19 ft. 8 in.
Working Depth
4 ft. 1 in.
Vibrator Speed
50 Hz, eccentric
Center Crown Adjustment
-2.5% to 5%
Frequency
VF 600 -5: 50 Hz
Controls
VF 600: electric, by heating rods VF 600 -5: fully automatic, thermostat-controlled
Heating Rods
On screed plates
Compacting System
V Version: eccentric vibrators
Slope, extending units
10%
Paving
Paving Width
VF 600: 10'-25'11" VF 600 -5: 10'-28'3"
Bolt-On Extensions
VF 600: 2'6"-10" VF 600 -5: 26"
