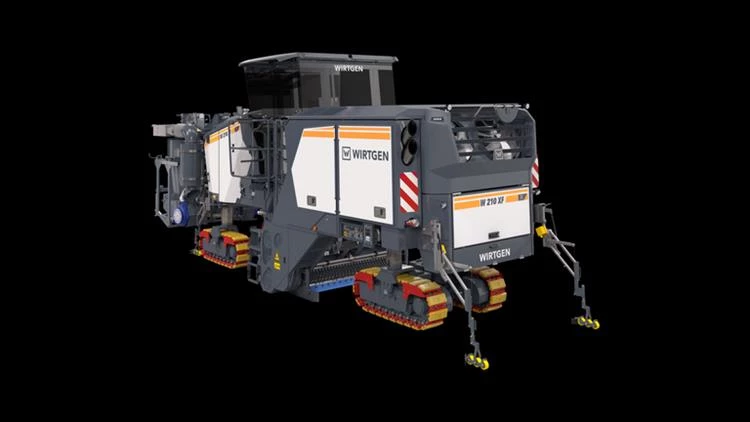

WIRTGEN W 210 XF Precision Grinding

New Cold Milling Machine

Kirby-Smith Machinery has new WIRTGEN W 210 XF Precision Grinding Cold Milling Machine for Sale

The powerful professional machine with compact dimensions offers a wide range of applications and grinding profiles.

A powerful extraction system draws off all the grinding slurry and pumps it into the collection buckets provided.

The LEVEL PRO ACTIVE leveling system enables precision grinding of pavement surfaces and enormous improvements in terms of evenness, cross slope, and roughness.

A wide range of profiles can be created using the extensive selection of grinding discs available.



01 Powerful Grinding Unit

  • Broad spectrum of grinding shaft speeds for a wide range of applications
  • Smart spraying and slurry control for reduced grinding disc wear
  • Ruggedly-constructed belt drive system for stable grinding shaft drive

02 Wide Range of Grinding Profiles

  • Combination of grinding profiles according to needs
  • Extremely wear-resistant grinding discs for a wide range of applications
  • Quick-change grinding shafts with ideal auxiliary tools

03 Reliable Slurry Extraction System

  • Two high-performance radial ventilators for the extraction of the air/slurry mix from the grinding housing
  • Additional sound damping for a significant reduction of the noise level in the pneumatic extraction process
  • Two powerful cyclone separators for the separation of air and slurry in the filtering process
  • Two pumps for transporting the separated slurry into external containers

04 High-Precision LEVEL PRO ACTIVE Leveling System

  • High-precision machine-height leveling with Multiplex system for maximum evenness
  • Additional sensors for cross slope and height scanning in all situations on construction sites
  • Reliable machine operation with digital depth limitation

05 Effective Water Spray

  • Semi-automated control of variable water quantity added with water spray as required
  • Optimized water injection into the grinding process for low grinding disc wear
  • Sensor-monitored slurry temperature measurement for early detection of insufficient cooling of grinding discs
Dimensions
Operating Weight 65,350 lbs.
Engine
Engine Make John Deere
Engine Model 6180HD-NC-Pinb-N
Cylinders 6
Horsepower 778 HP
Emission Standards EU Stage 5/US EPA Tier 4f
Operational
Grinding Depth 2”
Grinding Width 6’2”
  • Exhaust Emissions Category: EU Stage 5/US EPA Tier 4f
  • Operating Weight, CE: 65,350 lbs.
  • Milling Depth Max: 2”
  • Rated Power: 580 kW/778 hp 1,700 min-1

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE WIRTGEN
MODEL W 210 XF Precision Grinding

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

WIRTGEN W 210 XF Precision Grinding

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Kirby-Smith Machinery has new WIRTGEN W 210 XF Precision Grinding Cold Milling Machine for Sale

The powerful professional machine with compact dimensions offers a wide range of applications and grinding profiles.

A powerful extraction system draws off all the grinding slurry and pumps it into the collection buckets provided.

The LEVEL PRO ACTIVE leveling system enables precision grinding of pavement surfaces and enormous improvements in terms of evenness, cross slope, and roughness.

A wide range of profiles can be created using the extensive selection of grinding discs available.



01 Powerful Grinding Unit

  • Broad spectrum of grinding shaft speeds for a wide range of applications
  • Smart spraying and slurry control for reduced grinding disc wear
  • Ruggedly-constructed belt drive system for stable grinding shaft drive

02 Wide Range of Grinding Profiles

  • Combination of grinding profiles according to needs
  • Extremely wear-resistant grinding discs for a wide range of applications
  • Quick-change grinding shafts with ideal auxiliary tools

03 Reliable Slurry Extraction System

  • Two high-performance radial ventilators for the extraction of the air/slurry mix from the grinding housing
  • Additional sound damping for a significant reduction of the noise level in the pneumatic extraction process
  • Two powerful cyclone separators for the separation of air and slurry in the filtering process
  • Two pumps for transporting the separated slurry into external containers

04 High-Precision LEVEL PRO ACTIVE Leveling System

  • High-precision machine-height leveling with Multiplex system for maximum evenness
  • Additional sensors for cross slope and height scanning in all situations on construction sites
  • Reliable machine operation with digital depth limitation

05 Effective Water Spray

  • Semi-automated control of variable water quantity added with water spray as required
  • Optimized water injection into the grinding process for low grinding disc wear
  • Sensor-monitored slurry temperature measurement for early detection of insufficient cooling of grinding discs
GENERAL INFORMATION
Manufacturer
WIRTGEN
Model Year
Model
W 210 XF Precision Grinding
Condition
NEW
Dimensions
Operating Weight
65,350 lbs.
Engine
Engine Make
John Deere
Engine Model
6180HD-NC-Pinb-N
Cylinders
6
Horsepower
778 HP
Emission Standards
EU Stage 5/US EPA Tier 4f
Operational
Grinding Depth
2”
Grinding Width
6’2”
