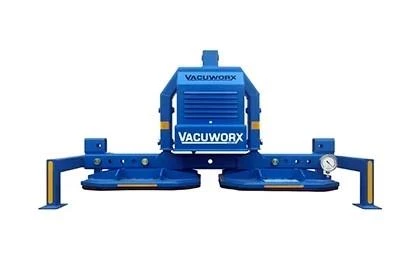

THE CM 3 COMPACT MODULAR VACUUM LIFTING SYSTEM takes skid steer attachments to a new level! Easily adaptable to multiple applications and host machines, the CM 3 features rugged all-steel construction to handle materials up to 6,600 lb (3 tonne). The first vacuum lifting solution of its kind, the patent pending CM 3 is adaptable to a wide variety of material handling needs, allowing larger skid steers and track loaders to lift concrete slabs, steel plates and pipe with ease.
|
|
Length |
71” |
Width |
40” |
Height |
31.5” |
Weight |
499 lbs. |
Fits to Manufacturer |
Also compatible with small excavators and cranes using clevis hook connection |
Control Valve |
Factory pre-set flow control valve to ensure optimal performance on any host machine |
Hydraulic Hoses & Quick Disconnects |
Quick-connect hydraulic hoses |
Lift Capacity |
6,600 lbs. |
Vacuum Pump |
Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (minimum 10 GPM required with maximum 3,000 psi) |
- Weighs the same as a standard bucket so there is no change in lift capacity of the host machine
- Can accommodate single or double pad configurations to lift a variety of material weights and sizes
- Adjustable spreader bar for double pads extends from 61” to 85” (outside to outside of seal channel)
- Rotatable bearing system to adjust the lateral angle for precise pad placement (optional)
- Mounting plates designed to attach quickly and easily to most skid and track steer models
- Removable legs for storage
- Parts & Accessories
- PT3000-700A Tough Seal™, 10 ft (3 m)
- PTSS2-KIT Filter Kit
- PT8300-200A Side Attachment Mounting Assembly
- PT8300-300A Top Attachment Mounting Assembly
- CM3-U-JOINT Rotating U-Joint (works with PT8300-300A)
- PT8301-100A Spreader Beam for Dual Pad Assembly
- CM3-CRADLE Replacement Storage Legs
