Trail King Schnable System

Trail King Schnable System

Trail King offers a complete line of open deck and materials hauling trailers for the construction, agriculture, transportation, and specialized hauling markets. With load capacities ranging from 12,000-1,000,000 pounds, there's a Trail King trailer perfectly suited to meet your hauling needs.

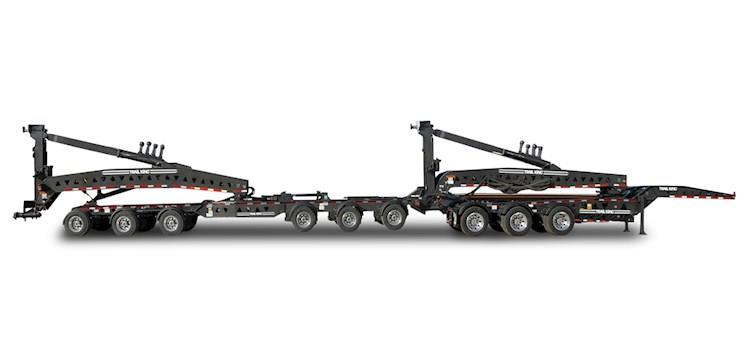

The ultimate wind tower hauling solution... featuring front and rear Schnable goosenecks that are rugged, lightweight, adjustable, and user-friendly, combined with lightweight, low-profile hydraulic steering dollies that deliver accurate, intuitive maneuverability even in the toughest conditions.

  • Models
    • 24' Gen 3 Front Gooseneck
    • 24'6" Gen 3 Rear Gooseneck
Operational
Brakes 12.25 x 7.5
Steering Front steer design
Hydraulic steering
Auto steer or manual steer
Gross Axle Wt Rating (GAWR) 20,000

TK100JLW Jeep:

  • Pivot lock for 5th wheel
  • 13 H.P. self-contained hydraulics for gooseneck
  • Removable pivot locks on 5th wheel
  • Individual poly fenders
  • Provisions for pintle hitch at rear with air and electrical 2-speed landing gear



TK120LPSD-HS Rear Steering Dolly:

  • Adjustable steering ratio
  • Manual steer by wireless or wire-type remote
  • Auto-alignment after manual steer
  • Individal Poly fenders on all axles
  • 13 H.P. Honda self-contained unit
  • Auxiliary air outlet for power tools
  • Power beyond for hydraulics
  • Wide load sign brackets at rear
  • Support plate for gooseneck support arm
  • Grote sealed wiring harness
  • Provisions at rear for connecting to front schnable
  • Lightweight push bar and brackets for positioning on site



24’0” Gen 3 Front Schnable Gooseneck:

  • Pivoting tower raises and lowers load
  • Telescoping single tower adapts to flange diameter
  • Hydraulic support
  • Requires external hydraulic supply
  • 140’ of air and electrical lines
  • 1 set of tension hooks
  • Single upper tower support
  • Hydraulic controls on both sides
  • Air lock for main lift and gooseneck support arm
  • King pin in pivot plate requires locked 5th wheel



24’6” Gen 3 Rear Schnable Gooseneck:

  • Pivoting tower raises and lowers load
  • Telescoping single tower adapts to flange diameter
  • Hydraulic support arm
  • Requires external hydraulic supply
  • 1 set of tension hooks
  • Single upper tower support
  • Lights for towing in reverse direction
  • Hydraulic controls on both sides
  • Air lock for main lift and gooseneck support arm
