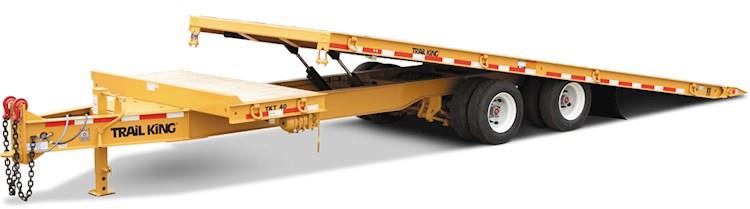

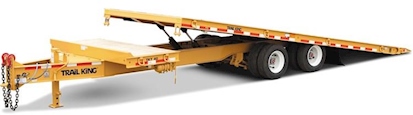

New Trail King LP Tilt Trailer for Sale

Trail King’s Tilt trailer is equipped to haul medium-sized to heavy-duty equipment with easy loading and unloading. Our tilt trailers have powerful suspension systems, strong steel main frames, and platform-cushioning cylinders that make hauling long-distance or over rough terrain smoother and more secure.

  • Safety Headboard: The safety headboard provides an extra dimension of safety and load-hauling security
  • Brighter Penny Lights: PC-rated lamps spread the light 90 degrees on each side, providing more light output
  • Safety Chains: Heavy-duty safety chains with GVWR-rated grab hooks are built tough for longevity
  • Drop Leg Jack: Bolt-on 12,000-lbs. jack with drop leg
  • I-Beam Crossmembers: Crossmembers consist of 80,000 PSI yield beams spaced for maximum strength and deck life
  • Adjustable Hitch: Accommodate a wide variety of towing vehicles with an adjustable 4-bolt hitch, rated for the full GVWR of the trailer
  • Protected Electrical System: Rubber-mounted, shock-proof sealed lights and rubber mounted grommets for all wiring through the frame
  • Adjustable Platform Lock: Adjustable platform lock mechanism and safety lock pin keep your deck from accidentally tilting while in transport mode
  • Heavy-Duty Bent D-Rings: Forged D-rings to handle even your toughest hauling requirements
  • Cushioning Cylinders: Dual platform cushioning cylinders make loading and unloading a smooth operation
  • Break-Away System: Sealed electric break-away system on TKT24LP models with electric brakes located in tongue area
  • Deck Counterweights: Smoother tilt operation with built-in counterweights
  • Oak Decking: All models come with 1.5” nominal oak decking that is double screwed to crossmembers to prevent cupping
  • Fold-Down Approach Plate: Fold-down approach plate meets U.S. Federal under-ride protection requirements.  It also achieves the lowest possible load angles and extra protection for tail lights



Models:

  • TKT24LP
  • TKT40LP
  • TKT50LP
  • TKT60LP
Body
Frame Structural Steel Main Frame
Paint/Finish 2-Part Epoxy Primer & Polyurethane Topcoat
Tongue 5’ Tongue Length
Ring (10) D-Rings: (4) on Stationary Deck & (8) on Tilt Deck
Decking 1.5” Oak Decking (Raised)
Dimensions
Deck Height TKT24LP: 34”
TKT40LP/TKT50LP: 33”
TKT60LP: 33.5”
Deck Width 102”
Deck Length TKT24LP/TKT40LP: 4’ Stationary/24’ Tilt
TKT50LP/TKT60LP: 6’ Stationary/24’ Tilt
Operational
Axles TKT24LP: (2) 12,000 lbs.
TKT40LP: (2) 22,500 lbs.
TKT50LP/TKT60LP: (3) 22,500 lbs.
Hydraulic Cylinders Cushioning
Brakes TKT24LP: Electric
TKT40LP/TKT50LP/TKT60LP: 12.25” x 7.5”
Suspension Hutch 9700
Tires TKT24LP: 235/80R X 16
TKT40LP: 215/75R X 17.5
TKT50LP: 215/75R X 17.5
TKT60LP: 235/70R X 17.5
Payload Capacity TKT24LP: 24,000 lbs.
TKT40LP: 40,000 lbs.
TKT50LP: 50,000 lbs.
TKT60LP: 60,000 lbs.
Wheels TKT24LP: 6” x 16”
TKT40LP/TKT50LP/TKT60LP: 6.75” x 17.5”
ABS TKT40LP/TKT50LP/TKT60LP: 4S2M
Pintle Eye Hitch TKT24LP: 19.5" to 30.5"
TKT40LP/TKT50LP/TKT60LP: 18.5" to 30"
Electrical
Electrical Electrical System per DOT Regulations
Lighting LED Lights
Rubber Mounted Sealed Lights w/Sealed Harness System
  • 12,000 lbs. HD Jack with Spring foot
  • 12 Degree Tilted Deck Slope
  • Manual Deck Lock
  • Fold-Down Approach & Under Ride Protection
  • .25” Floor Plate on the Approach & Fold-Down
  • Safety Chains with Grab Hooks
  • Lockable Toolbox
  • Headboard
  • Registration Holder
  • Mud Flaps
  • Red and White Conspicuity Markings
  • 25K Single 2-speed landing gear
  • Dual air deck locks operated with one switch (requires air supply)
  • Air operated approach plates (requires air supply)
  • (2) Strobe lights in tail channel with switch
  • Hold valve for tilt bed
