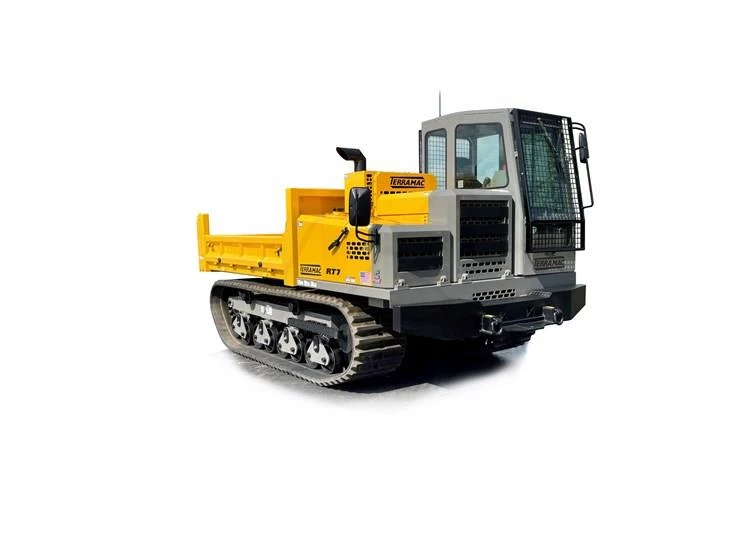

Kirby-Smith has Terramac RT7 Straight Frame Crawler Carrier for Sale Our straight frame crawler carriers are anything but standard. Rubber tracks create low ground pressure that allows you to access areas where wheeled equipment simply can’t go – all while having a minimal impact on the environment. Choose from multiple bed options and enjoy the ultimate in customizability thanks to a chassis design that makes adding attachments easy. Don’t let the size fool you. The RT7 delivers 14,000 lbs. of carrying capacity while fitting into the tight spaces other machines can’t step foot Keep your crew productive from the first load to the last. Equipped with low ground pressure rubber tracks, this carrier maximizes daily hauls while protecting sensitive terrain. Plus, its optimized dimensions allow for effortless transport between jobsites without the need for costly oversized permits, keeping your downtime to a minimum.
|
| Dimensions | |
|---|---|
| Length | 16’10” |
| Width | 8’2” |
| Height | 9’6” |
| Weight | 18,540 lbs. (w/bed) |
| Ground Clearance | 18” |
| Track Width | 23.6” |
| Dump Angle | 60° |
| Height of Rock Bed | 15” (Vessel) |
| Length of Rock Bed | 9’2” (Vessel) |
| Width of Rock Bed | 7’7” (Vessel) |
| Front Overhang | 4’4” |
| Track Gauge | 6’2” (Center-to-Center) |
| Height of Dump Bed | 4’11” (loading height over side) |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | B4.5 Performance Series |
| Horsepower | 155 HP |
| Displacement | 275 cu. In. |
| Fuel Tank Capacity | 40 Gallons |
| Battery | (2) GRP 31, 1125 CCA |
| Electrical System | 12 VDC |
| Travel Speed | 3.3 mph (1st Gear) 6.7 mph (2nd Gear) |
| Hydraulic | |
|---|---|
| Transmission | HST |
| Max. Carrying Capacity | 14,000 lbs. |
| Tandem Gear Pump Max Flow | 14 gpm @ 2500 PSI (Front Section – Aux Output) 20 gpm @ 380 PSI (Rear Section – HST Drive) |
| Operational | |
|---|---|
| Turning Radius | Zero Turn |
| Gradeability | 27% (15°) (loaded) 58% (30°) (unloaded) |
| Ground Pressure | 6.2 PSI (loaded) 3.6 PSI (unloaded) |
| Undercarriage Length | 10’ (Idler to Drive Hub) |
| Drive Pump Max Flow | 32 gpm/side (x2) |
| Drive Pump Max Pressure | 5500 PSI |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Terramac |
| MODEL | RT7 |
