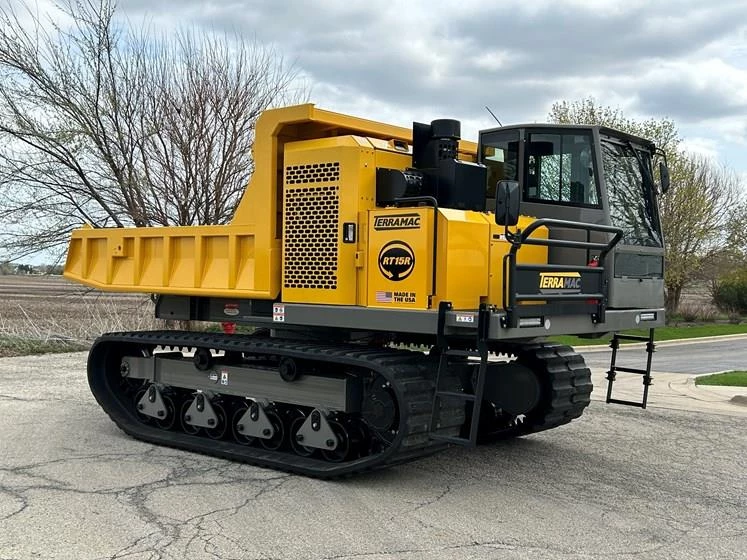

Kirby-Smith has Terramac RT15R Rotating Crawler Carrier for Sale Terramac rotating crawler carriers bring new efficiencies to your job site while minimizing environmental damage. Operators can offload materials from virtually any angle with greater precision, while simultaneously reducing cycle time for faster output. Same Soul, Serious Strength. The RT15R evolves past its predecessor to deliver a 7% boost in carrying capacity and premium new features. Engineered for non-stop productivity. By pairing continuous 360-degree rotation with an extra ton of carrying capacity, the RT15R delivers unmatched versatility, superior operator visibility, and minimal ground disturbance to keep your projects moving safely forward.
|
| Dimensions | |
|---|---|
| Length | 20’4” |
| Width | 10’ |
| Height | 10’11” |
| Weight | 40,410 lbs. (w/bed) |
| Ground Clearance | 23” |
| Track Width | 2’8” |
| Dump Angle | 60° |
| Height of Rock Bed | 21” (Vessel) |
| Length of Rock Bed | 10’11” (Vessel) |
| Width of Rock Bed | 9’6” (Vessel) |
| Front Overhang | 2’8” |
| Track Gauge | 7’5” (Center-to-Center) |
| Height of Dump Bed | 7’3” (loading height over side) |
| Engine | |
|---|---|
| Engine Make | Cummins |
| Engine Model | B6.7 Performance Series Stage V/T4F |
| Horsepower | 318 HP |
| Displacement | 408 cu. In. |
| Fuel Tank Capacity | 86 Gallons |
| Battery | (2) 12V GRP31, 1000CCA each |
| Electrical System | 12 VDC |
| Travel Speed | 3.6 mph (1st Gear) 6.9 mph (2nd Gear) |
| Hydraulic | |
|---|---|
| Transmission | HST |
| Max. Carrying Capacity | 30,000 lbs. |
| Tandem Gear Pump Max Flow | 19.7 gpm @ 3045 PSI (Front Section – Aux Output) 24.5 gpm @ 2825 PSI (Rear Section – HST Drive) |
| Operational | |
|---|---|
| Turning Radius | Zero Turn |
| Gradeability | 58% (30°) |
| Ground Pressure | 8.13 PSI (loaded) 4.77 PSI (unloaded) |
| Undercarriage Length | 12’3” (Idler to Drive Hub) |
| Drive Pump Max Flow | 64 gpm/side (x2) |
| Drive Pump Max Pressure | 6090 PSI |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Terramac |
| MODEL | RT15R |
