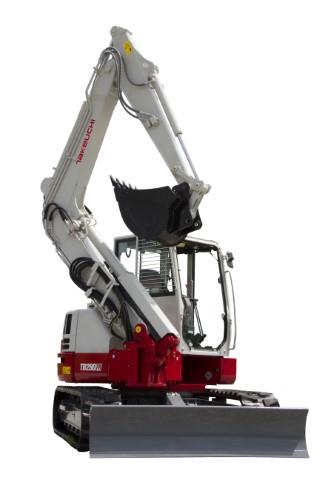

Takeuchi TB280FR

Takeuchi TB280FR

With its exclusive Side-to-Side (STS) boom and compact design the TB280FR is incredibly versatile and capable of working in much more confined applications than other machines in this class.  Due to the design of the boom the operator can experience unmatched visibility, balance, and performance.

  • Performance
    • Turbocharged Engine
    • EPA Final Tier 4 Engine w/ DOC+DPF
    • Side-to-Side (STS) Boom
    • First and Second Auxiliary Hydraulic Circuits
  • Durability
    • Wrap Around Counterweight
    • Cushioned Cylinders
    • Standard Long Arm
    • Heavy Duty Swing Bearing
  • Comfort and Convenience
    • Pilot Joystick Controls
    • Deluxe High Back Suspension Seat
    • Pattern Change Valve
    • Multi-Information Display
  • Service and Uptime
    • Large Engine Hood for Panoramic Access
    • Dual Element Air Cleaner
    • Automatic Fuel Bleed System
    • 2 Year, 2,000 Hour Warranty
  • Takeuchi Fleet Management (TFM)
    • 2 Year Standard Equipment
    • Remote Diagnostics
    • Proactive Maintenance
    • Control Costs
Dimensions
Length 20’7.4” (transport)
Width 7’7”
Height 8’11.4” (transport)
Weight 18,810 lbs. (cab rubber)
19,240 lbs. (cab steel)
Ground Clearance 12”
Fuel Tank Capacity 26.3 gal
Front Swing Radius 5’3.5”
Engine
Engine Make Yanmar
Engine Model 4TNV98CT
Engine Type EPA Final Tier 4
Cylinders 4
Horsepower 69.2 hp
Cooling 14.8 qt
Displacement 202 cu in
Torque 227.2 ft-lb @ 1,300 rpm
Fuel Consumption 2.4 gal/hr (65% of full load)
Electrical System 12 volts/80 amps
Rated Speed 2,000 rpm
Lubrication System 14.8 qt
Drivetrain
Track Width 17.7”
Brakes Parking: Spring applied, hydraulically released
Track Length 7’3” (track ground contact length)
Track Type Permanently sealed, triple flanged
Track Rollers 5 per side
Ground Pressure 5.5 psi (rubber)
5.7 psi (steel)
Traction Drive Planetary Reduction w/Automatic Shift Down
Hydraulic
Pump Twin Variable Displacement Piston Pumps w/Two Gear Pumps
Hydraulic Tank Capacity Reservoir: 18.7 gal
System: 31.7 gal
Hydraulic Flow Total: 52.5 gal/min
Primary Auxiliary: 39.0 gal/min
Secondary Auxiliary: 15.0 gal/min
Operating Pressure 3,990 psi
Operational
Blade Height 19.6”
Dig Depth Max: 14’11”
Vertical: 11’5.5”
Arm Length 6’7”
Dump Height 14’8.4”
Bucket Breakout Force 16,335 lbs.
Travel Speed - Forward Low: 1.7 mph
High: 3.2 mph
Maximum Reach 23’7.2”
Boom Swing Angle 30° Left/15° Right
Tail Swing Radius 4’2.4”
Slew Speed 10.0 rpm
Traction Force 19,783 lbs.
Max. Arm Digging Force 7,037 lbs.
  • ENGINE
    • EPA Final Tier 4 Compliant
    • Automatic Fuel Bleed System
    • Extended Life Coolant
    • Dual Element Air Filter
    • Automatic Idle
    • Engine Modes Include: Power, Eco and High Altitude
    • High Capacity Radiator
    • High Capacity Fuel Filters
  • ELECTRICAL
    • Multi-Information Display Includes Digital Gauges for Coolant Temperature, Fuel Level, Engine Speed, PM (Particulate Matter) Accumulation, and Lift Load Percentage
    • Audible and/or Visual Alerts for Battery Level, Engine Oil Pressure, Fuel/Water Sensor, High Engine Coolant Temperature, Engine Air Filter Restriction, Fuel Filter Restriction, Low Fuel Level, Automatic Idle, Regeneration Status, Engine Preheat, Travel Speed Indicator, Work Light Indicator, Blade Float Indicator
    • 12 Volt System with 55 Amp Alternator
    • Multi Function Switch Bank
    • Work lights: Boom
    • Engine Preheat
    • Travel Alarm and Horn
  • UNDERCARRIAGE AND FRAME
    • Triple Flanged Track Rollers
    • Automatic Track Tensioning System
    • Sloped Frame with Open Centers
    • Two-Speed Travel with Automatic Shift
    • Heavy Duty Dozer Blade
    • Large Wrap Around Counterweight
    • 17.7" Rubber or Steel Tracks
    • Available 17.7" Road Liner Tracks
  • HYDRAULIC
    • Cushioned Main Boom, Arm, and Offset Cylinders
    • Pilot Joystick Controls with Proportional Slide Switches for Auxiliary Circuits
    • Primary Auxiliary Circuit Plumbed to Arm with 1-Way and 2-Way Operation
    • Second Auxiliary Circuit Plumbed to Arm
    • Accumulator
    • Hydraulic Oil Cooler and Sight Gauge
  • WORKING EQUIPMENT
    • Main Boom Cylinder Guard
    • Patented Side-to-Side (STS) Offset Boom System
    • Long Arm
    • Available Dual Pin Position Bucket
    • Available Mechanical Bucket Quick Coupler
    • Available Main Pin Hydraulic Thumb
  • OPERATOR'S STATION
    • Enclosed Cab with Air Conditioner, Heat, Defrost, Wiper, and AM / FM /MP3 Radio
    • Tilt-Up Operator Station
    • Adjustable, High Back Suspension Seat
    • Quick Change Control Pattern (ISO or SAE)
    • Proportional Slide Switch for Auxiliary Hydraulics
    • Automatic Climate Control Cystem for Air Conditioning and Heat
    • 2" Seat Belt
    • Available 3" Seat Belt
  • TAKEUCHI FLEET MANAGEMENT (TFM)
    • Minimize Downtime
    • Remote Diagnostics
    • Utilization Tracking
    • Proactive Maintenance
    • Control Costs
