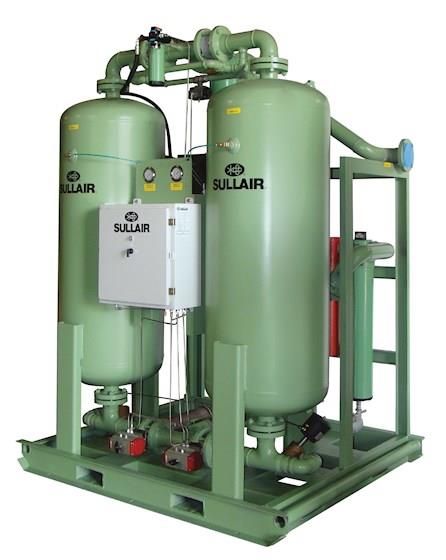

Sullair RDHL-800

Sullair RDHL-800

Rated at -40°F (-40°C) dew point at 100 psig (6.9 bar), these dryers are mounted on draggable skids with air-in, air-out out, and power connections. Their rugged design makes them well-suited for the punishing rental industry. Pre-filter with DP gauge protects desiccant bed from oil and particulate contamination. After-filter with DP gauge removes dust and desiccant fines from the final air system.

Also available with After Cooling.
Specs
Actual Delivery 800 scfm at 100 psig
880 scfm at 125 psig
960 scfm at 150 psig
1050 scfm at 175 psig
Dimensions
Length 70"
Width 70"
Height 94"
Weight 3600 lb
Operational
Operating Pressure 175 psig
Inlet & Outlet Size 3" FLG
  • Rated at -40°F dew point at 100 psig (-40°C dew point at 6.9 bar)
  • Dryer mounted on draggable skid with air-in, air-out, and power connections
  • Rugged design suited for the rental industry
  • Choice of 24 VDC or 115 VAC models
  • Mounted pre-filter with DP gauge to protect desiccant bed from oil and particulate contamination
  • Mounted after-filter with DP gauge to remove dust and desiccant fines from final air system
  • Ball float drain standard on pre-filter
  • NEMA 4 electrics for outdoor operation
  • Fail-safe valves so flow will not be interrupted should the dryer shutdown
  • Maximum operating pressure: 175 psig (12.1 bar)
  • ASME VIII coded pressure vessels with 1/16-inch (1.55 mm) corrosion allowance
  • High-impact scratch- and corrosion-resistant acrylic polyurethane paint
  • Pneumatic controls available at an additional charge
  • Low ambient option available for below freezing applications
  • Four (4) point lifting provisions

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Sullair
MODEL RDHL-800

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Sullair RDHL-800

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Rated at -40°F (-40°C) dew point at 100 psig (6.9 bar), these dryers are mounted on draggable skids with air-in, air-out out, and power connections. Their rugged design makes them well-suited for the punishing rental industry. Pre-filter with DP gauge protects desiccant bed from oil and particulate contamination. After-filter with DP gauge removes dust and desiccant fines from the final air system.

Also available with After Cooling.
GENERAL INFORMATION
Manufacturer
Sullair
Model Year
Model
RDHL-800
Condition
NEW
Specs
Actual Delivery
800 scfm at 100 psig 880 scfm at 125 psig 960 scfm at 150 psig 1050 scfm at 175 psig
Dimensions
Length
70"
Width
70"
Height
94"
Weight
3600 lb
Operational
Operating Pressure
175 psig
Inlet & Outlet Size
3" FLG
