Why rent when you can own?
Call us to see if ownership makes economical sense for you and your organization.

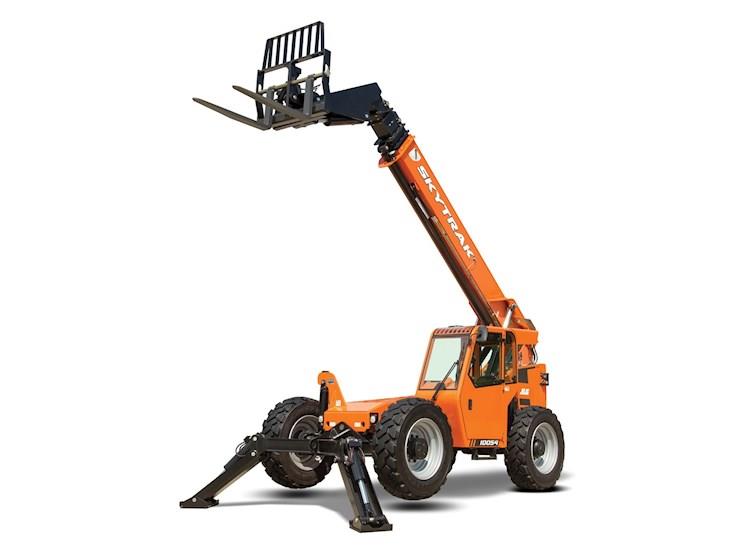

SkyTrak® telehandlers reach the greatest heights of performance. They feature three steering modes to meet various maneuverability requirements.
SkyTrak® is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they've been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible on SkyTrak telehandlers for quicker maintenance.
|Engine Model||QSF3.8L Tier 4 F|
|Max Travel Speed||20 mph|
|Fuel Tank Capacity||35 gallons|
|Steering||4-Wheel, Power steering., Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front.|
|Rated RPM||1500 rpm|
|Maximum Lower Speed||15 seconds|
|Maximum Telescope Speed||In: 16 seconds, Out: 18 seconds|
|Rated Capacity||10,000 lbs.|
|Transmission Type||Powershift-4-speed forward and 3-speed reverse.|
|Transmission||Nr Forward Gears Standard-4
Nr Reverse Gears-3
|Front Axle||Full-time planetary 4-wheel drive; High Bias, Limited Slip|
|Rear Axle||Full-time planetary 4-wheel drive.
Oscillating rear axle with Stabil-Trak system.
|Displacement||229 cu in. 3.8 L|
|Torque||1500 rpm 348 lb-ft 472 Nm|
|Pump||Var Load Sensing Piston Pump|
|Hydraulic Tank Capacity||52 gallons|
|Hydraulics||Variable flow, load sensitive hydraulic system., Load holding valves on frame level, stabilizer, attachment tilt, extend and lift cylinders., Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components. Consists of valves, controls and hydraulic lines.|
|Brakes||Hydraulically actuated inboard wet disc brakes.
Emergency brake with transmission declutch feature.
Service Brake: Wet Multi-Disc
Optional Foam-Filled or Solid
|Reach @ Max Height||38’9”|
|Max Lift Height||53’2”|
|Lift Capacity||Max: 10,000 lbs.
Full Height: 4,000 lbs.
Max Reach: 1,400 lbs.
|Lift Speed||16 seconds
Boom Retracted: Up-16.4 seconds, Down-14.7 seconds
|Max. Load @ Max. Reach||3,000 lbs.|
|Max. Load @ Full Height||4,000 lbs.|
|Drawbar Pull||24,500 lbs.|
|Outriggers Up Lift Capacity||Full Height: 4000 lbs.
Full Reach: 3000 lbs.
|Outriggers Up Max||Forward Reach: 38’9”
Lift Height: 53’2”
|Boom Speed||Extended 17.6 sec, Retracted 15.9 sec|
