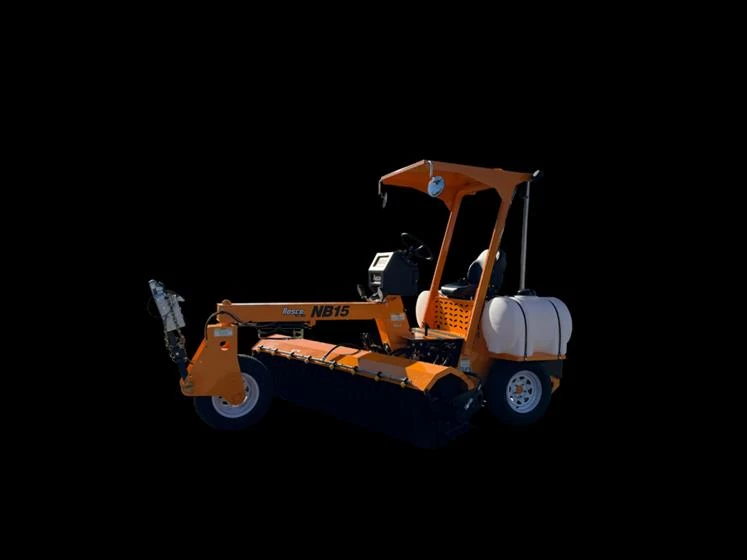

Kirby-Smith has a Rosco NB15 Broom for Sale The Rosco NB15 is a three-wheeled, self-propelled sweeper engineered specifically for professional use. It features a comfortable, ergonomic design and a powerful brush core for quality cleaning. The machine is also designed to be easily towed, making transport simple. This makes the NB15 a perfect fit for rental companies or any operation needing a dependable sweeper for paved surfaces. |
| Specs | |
|---|---|
| Towing Setup | Single axle w/one point disconnect for towing |
| Warning System | Monitors oil pressure, water temperature, voltmeter |
| Body | |
|---|---|
| Rims | 3 steel modular, 14” x 5.5” – 5 lug x 4.5” |
| Steering Column | Fixed |
| Dimensions | |
|---|---|
| Length | 15’1” w/trailer hitch down 13’ w/trailer hitch up 12’2” wo/tow package |
| Width | 9’ Brush centered 7’11” brush fully rotated |
| Height | 8’2” Beacon 8’9” Beacon flipped up, operating |
| Weight | 2,620 lbs. wo/water 3,205 lbs. w/water |
| Wheelbase | 8’5” |
| Turning Radius | 10’4” center front wheel |
| Track Width | 4’3” |
| Engine/Drivetrain | |
|---|---|
| Ground Clearance | 7” |
| Transmission Type | Foot pedal transmission, forward and reverse |
| Engine Make | Kubota |
| Engine Model | D1105 |
| Horsepower | 25 HP |
| Brakes | Service: Foot operated two-wheel shoe and drum type Parking: Hand operated |
| Electrical System | 12 volt system, alternator and battery |
| Speeds | 0 to 10 mph |
| Rated Power | 3300 RPM |
| Turning Circle | 4’ inside rear wheel |
| Towing Speed Rating | 65 mph |
| Drive Mechanism | Direct hydraulic motor |
| Fuel Reservoir Capacity | 8 Gallons |
| Hydraulic | |
|---|---|
| Hydraulic Reservoir | 12 Gallons |
| Hydraulic Circuit | Two separate circuits – one for travel, one for brush control and power steering |
| Operational | |
|---|---|
| Tires | ST205/75-15R14, load range C (6 Ply) |
| Steering | Orbital, hydrostatic type |
| Brush Speed | 180 RPM Max, variable by engine speed |
| Brush Sweep Angle | 30°, left or right |
| Brush Frame | Steel welded construction |
| Gauge | Analog hour meter & fuel gauge |
| Brush Control Type | Hydraulic Control |
| Brush Down Pressure | Hydraulic Down Pressure |
| Brush Filler | Wafer Type, poly, 24” diameter, 8’ long |
| Brush Location | Center-Mount |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Rosco |
| MODEL | NB15 |
