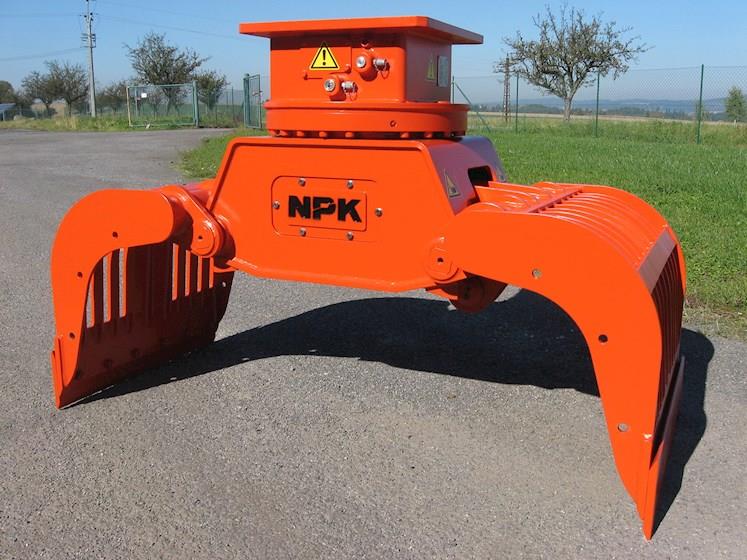

NPK DG-16

NPK’s demolition grabs, or sorting grabs / grapples, are designed to meet the high standards of today’s market.  High durability and low maintenance cost make them highly efficient for sorting and recycling construction and demolition waste.
The DG-16 demolition & sorting grab is compatible with excavators in the 11-17.5 ton range.

Robust and resilient for extended life

Both the frames and the arms of NPK demolition grabs are built with high tension, special wear steel ensuring rigidity and impressive wear resistance.  The large jaw opening and high closing force makes completing any job a breeze.  Grapples can be customized with different styles or widths of arms for specialized applications.  When combined with other heavy duty components, NPK demo grabs deliver superb quality, enhances durability and productivity, and longer life.


360° hydraulic rotation

Built with powerful hydraulic-rotation motors, NPK sorting grabs provide an operative angle to tackle any application.  A double motor suited for heavy loading applications requiring high torque is standard for all grapple models DG-20 and above.  A single motor option is available upon special request.  The hydraulic motors are protected by a double shock valve and a brake valve protects the internal motor seals and no drain line is needed.  Rotation speed and speed of opening & closing of the arms can easily be adjusted - accessible by an access panel in the swivel top.


Designed for straightforward maintenance

Engineered with fewer hydraulic component connections that are fully encased, the possibility of NPK grapples being damages and/or leaking is significantly reduced. Hydraulic connections on both sides of the swivel top allow for easy access.  The oversize pins, replaceable bushings with dust seals and heavy duty slewing ring help to increase durability and productivity while reducing down-time.  Easy access to grease ports means that greasing is easy from any angle.



NPK dedicated mounting kits enable demolition & sorting grabs to be mounted as excavator attachments for carriers within the recommended weight range for each model.


Potential applications include:

  • Construction and Demolition (C&D) recycling / sorting
  • Industrial recycling systems
  • Commercial demolition
  • Loading and unloading
  • Dismantling


Dimensions
Length 73”
Width 34”
Height 47”
Weight 1,895 lbs.
22,000-35,000 (Excavator)
Opening 73” (max)
Carrier Weight Range 11-17.5 tons
Hydraulic
Operating Pressure 3,625-5,075 PSI
Rotation: 1,450-2,030 PSI
Operational
Lift Capacity 0.56 cu yd
Rotation Double Motor: N/A
Single Motor: Standard
Chuck Oil Flow 26 gpm
Oil Flow: 5-8 gpm
Closing Force 4.8 tonf
  • 360 Degrees Hydraulic Rotation, No Drain Line Required
  • Replaceable Pin Bushings
  • Main Pins Equipped With Dust Seals
  • Robust Closing Force
  • Heavy-duty, High Torque Applications
  • Frame Made of High-Strength, Wear Resistant Steel Alloy/Hardox
  • Fully Protected Hydraulic Components
  • Cutters Are Interchangeable and Reversible
  • Standard check valve protects against unexpected opening of the arms
  • Interchangeable and reversible cutters
  • Optional side covers and/or arm covers for loading activities
  • Optional breaker plates for special demolition jobs

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE NPK
MODEL DG-16

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

NPK DG-16

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

NPK’s demolition grabs, or sorting grabs / grapples, are designed to meet the high standards of today’s market.  High durability and low maintenance cost make them highly efficient for sorting and recycling construction and demolition waste.
The DG-16 demolition & sorting grab is compatible with excavators in the 11-17.5 ton range.

Robust and resilient for extended life

Both the frames and the arms of NPK demolition grabs are built with high tension, special wear steel ensuring rigidity and impressive wear resistance.  The large jaw opening and high closing force makes completing any job a breeze.  Grapples can be customized with different styles or widths of arms for specialized applications.  When combined with other heavy duty components, NPK demo grabs deliver superb quality, enhances durability and productivity, and longer life.


360° hydraulic rotation

Built with powerful hydraulic-rotation motors, NPK sorting grabs provide an operative angle to tackle any application.  A double motor suited for heavy loading applications requiring high torque is standard for all grapple models DG-20 and above.  A single motor option is available upon special request.  The hydraulic motors are protected by a double shock valve and a brake valve protects the internal motor seals and no drain line is needed.  Rotation speed and speed of opening & closing of the arms can easily be adjusted - accessible by an access panel in the swivel top.


Designed for straightforward maintenance

Engineered with fewer hydraulic component connections that are fully encased, the possibility of NPK grapples being damages and/or leaking is significantly reduced. Hydraulic connections on both sides of the swivel top allow for easy access.  The oversize pins, replaceable bushings with dust seals and heavy duty slewing ring help to increase durability and productivity while reducing down-time.  Easy access to grease ports means that greasing is easy from any angle.



NPK dedicated mounting kits enable demolition & sorting grabs to be mounted as excavator attachments for carriers within the recommended weight range for each model.


Potential applications include:

  • Construction and Demolition (C&D) recycling / sorting
  • Industrial recycling systems
  • Commercial demolition
  • Loading and unloading
  • Dismantling


GENERAL INFORMATION
Manufacturer
NPK
Model Year
Model
DG-16
Condition
NEW
Dimensions
Length
73”
Width
34”
Height
47”
Weight
1,895 lbs. 22,000-35,000 (Excavator)
Opening
73” (max)
Carrier Weight Range
11-17.5 tons
Hydraulic
Operating Pressure
3,625-5,075 PSI Rotation: 1,450-2,030 PSI
Operational
Lift Capacity
0.56 cu yd
Rotation
Double Motor: N/A Single Motor: Standard
Chuck Oil Flow
26 gpm Oil Flow: 5-8 gpm
Closing Force
4.8 tonf
