The NBT60 is outstanding in its class, and not just because it is the largest National Crane ever built. Even with its size this crane is still roadable without the need for additional permits, which saves time and money before the job even begins, all while maintaining the flexibility that National Cranes are known for.

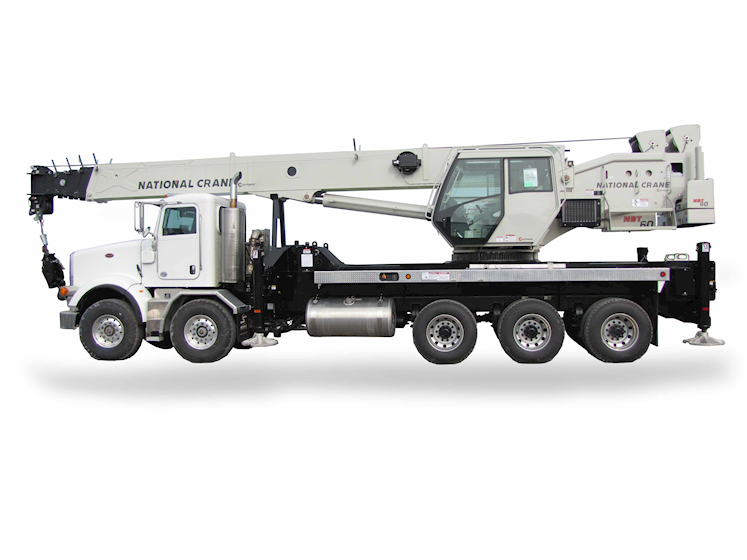

National Crane NBT60
Five-section boom: The Series NBT60 is equipped with a 39,0 (128 ft) boom. An optional 7,9 m - 13,7 m (26 ft - 45 ft) two-section offsettable manual extension is available
Counterweight: Two-piece 1361 kg (3000 lb) each (total 2722 kg [6000 lb]) hydraulically removable counterweight slabs. Removable counterweight slabs can be stowed on front outrigger box for roading.
Outriggers: Equipped with left and right ground-level and incab CANbus outrigger controls. The Series NBT60 outriggers allow quick and easy crane set-up and includes a new outrigger beam position sensing system that aids the operator in selecting the right load chart based on the crane’s outrigger footprint. The front outrigger box has an X-shaped footprint that eliminates the need for a single front outrigger.
Deluxe tilting operator’s cab: The Series NBT60 operator’s cab includes: all-steel construction with 0⁰ to 20⁰ hydraulic tilting capability and acoustical lining and tinted glass throughout, air conditioning, deluxe seat with arm rest mounted single-axis electric controllers, windshield and sliding skylight with electric wipers, diesel heater with defroster, circulating fan, fire extinguisher, and dual cab mounted work lights.
|Gross Axle Wt Rating (GAWR)||Front: 20,000-40,000 lbs.
Rear: 66,000 lbs.
Pusher & Tag: 8,000 lbs.
|Max Tip Height||179'|
|Jib||FJM-OS, 2-section offsettable|
Front: 23.25 ft. (7.09 m)
Rear: 24.25 ft. (7.39 m)
Front: 15.5 ft. (4.72 m)
Rear: 16.08 ft. (4.9 m)
|Capacity||60 T (54.4 t)|
|Boom Length||128 ft. (39 m)|
|Max Tip Height-Boom||135'|
|Lift Speed||Low: 19-191 fpm (5.8-58.2 m/min.)
High: 38-383 fpm (11.6-116.7 m/min.)
|Max Jib Length||45 ft. (13.7 m)|
|Weight||44,121-50,909 lbs. w/fluids|
