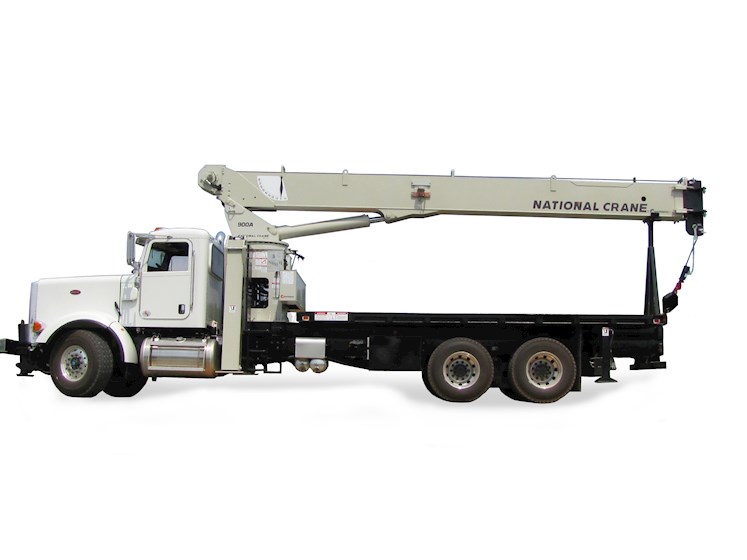

The 900A provides a 26-ton capacity and the longest boom length in its size range. It is available as a standard behind cab mount or as a rear mount. Boom lengths include 90 and 103 feet, and the 25 - 44 foot jib can be used with either boom size. The 900A is also available as a wireline machine.
| Body | |
|---|---|
| Chassis | Stability Front: 8,800 lbs. (3,991 kg) Rear: 9,500 lbs. (4,309 kg) |
| Cab | 192 in. (488 cm) |
| Frame | Section Modulus (SM) Under Crane with 110,000 psi (758 MPa): 20 ci (327 cm³) Section Modulus (SM) Over Rear Stabilizers with 110,000 psi (758 MPa): 15 ci (245 cm³) |
| Dimensions | |
|---|---|
| Wheelbase | 256 in. (650 cm) |
| Gross Axle Wt Rating (GAWR) | Front: 16,000 lbs. (7,257 kg) Rear: 34,000 lbs. (15,422 kg) |
| Max Tip Height | 155' |
| Hydraulic | |
|---|---|
| Jib | 9FJ44M |
| Operational | |
|---|---|
| Outriggers | A frame with 21 ft. span |
| Capacity | 26 T (23.6 t) |
| Winch | Planetary |
| Boom | |
|---|---|
| Boom Extensions | 30.75-102.83 ft. (9.37-31.4 m) |
| Boom Type | 4-section |
| Boom Length | 102 ft. 10 in. (31.4 m) |
| Max Tip Height-Boom | 143' |
| Lift Speed | 19 - 135 fpm (5 - 41 m/min.) |
| Max Jib Length | 44 ft. (13.41 m) |
| Stabilizers | RSOD 16 ft. out and down, rear |
| Measurements | |
|---|---|
| Weight | 22,150 lbs. (10,047 kg) dry 22,735 lbs. (10,312 kg) with oil |
| Turning Radius | 360° |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | National Crane |
| MODEL | 9103A |
