The Series 1400A offers best-in-class boom length. A new hydraulic system uses pressure-compensated control valves with a load-sensing variable displacement piston pump for smoother operation and reduced maintenance. The Vision Cab™ provides enhanced visibility and includes ergonomic single joystick controls, ventilation fans, and a diesel heater for cold weather comfort.

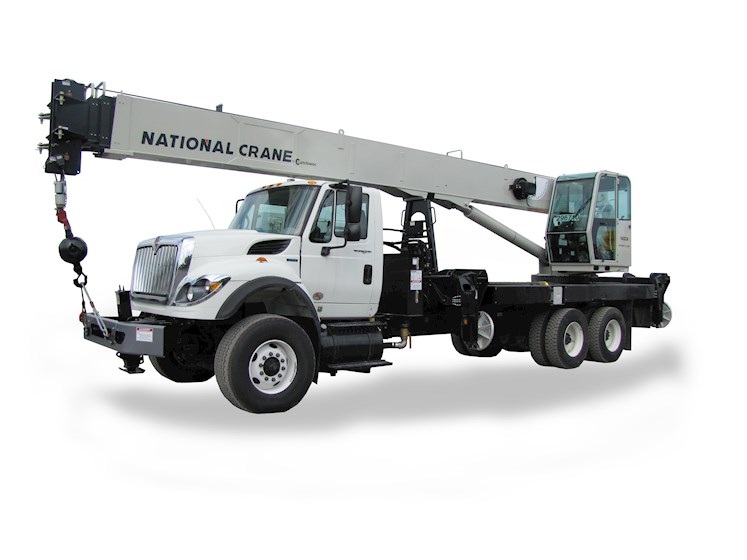

National Crane Series 1400A
29,9 t (33 USt) maximum capacity
41,15 m (135 ft) maximum tip height (main boom)
52,43m (172 ft) maximum tip height (boom with jib)
Outriggers: Two sets of “H” style outriggers with 7,47 m (24 ft 6 in) span, with removable ball and socket aluminum foot pads. Independent controls located on each side of the crane can be positioned at mid-span setting of 5,18 m (17 ft). Single front stabilizer (SFO) comes with first-up feature.
Deluxe operator’s cab: Vision Cab™ has a rigid powder coated steel structure, is well insulated, with ample safety glass for operator visibility and comfort. Multi-position seat with arm rest single axis controls, ventilation fans, diesel heater, and wipers. Optional air conditioning is available. Optional open-seat control station in lieu of enclosed cab is available
Overload protection: All National Crane boom trucks are equipped with overload protection. A Load Moment Indicator (LMI) is standard on all Series 1400A machines. The LMI display console with Work Area Definition System (WADS) is weatherproof. The LCD display is visiblein full or low light and displays all crane load lifting values simultaneously.
Five-section boom: At 38,72 m (127 ft), the Series 1400A five-section boom is the longest in its size range. The long boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency. Also available are optional four-section boom lengths and 33,5 m (110 ft).
Front: 9,000 lbs. (4,082 kg)
Rear: 8,000 lbs. (3,629 kg)
|Cab||180 in. (457 cm)|
|Frame||Section Modulus (SM) Front Axle to End of Afterframe with 110,000 psi (759 MPa): 30 ci (492 cm³)|
|Wheelbase||258 in. (655 cm)|
|Gross Axle Wt Rating (GAWR)||Front: 20,000 lbs. (9,072 kg)
Rear: 34,000 lbs. (15,422 kg)
|Max Tip Height||172'|
|Outriggers||2 sets of "H"-style with 24 ft. 6 in. (7.47 m) full span|
|Capacity||33 T (29.9 t)|
|Boom Length||127 ft. (38.72 m)|
|Max Tip Height-Boom||135'|
|Lift Speed||Low: 21-170 fpm (6-52 m/min.)
High: 43-340 fpm (13-104 m/min.)
|Max Jib Length||30 ft. (9.15 m)|
|Weight||32,380 lbs. (14,718 kg) with oil|
