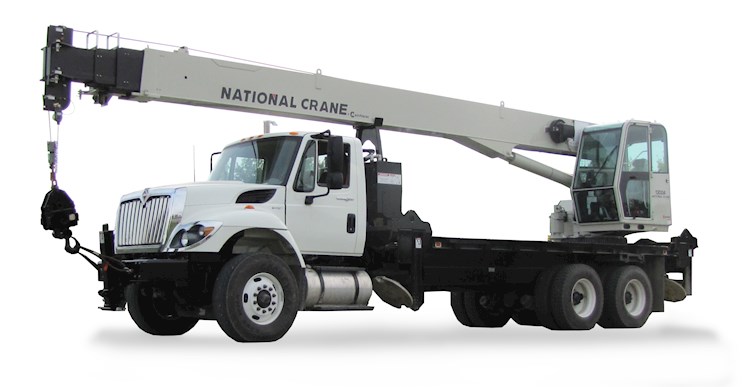

The 1300A provides a 30-ton capacity at a 5 foot-radius. Dual "H" style outriggers offer excellent stability and allow mid-span and full-span capabilities. The enclosed air-conditioned VISIONCAB boasts integrated armrest crane controls, CANBUS electronics, a graphic LMI display and standard Work Area Definition System (WADS). The crane is available in 69-,100-, and 110- foot boom lengths.
Body | |
---|---|
Chassis | Bare Weight Front: 9,000 lbs. (4,082 kg) Rear: 8,500 lbs. (3,856 kg) |
Cab | 192 in. (4.88 m) |
Frame | Section Modulus (SM) Front Axle to End of Afterframe with 110,000 psi (759 MPa): 20 ci (327 cm³) |
Dimensions | |
---|---|
Wheelbase | 258 in. (6.55 m) |
Gross Axle Wt Rating (GAWR) | Front: 18,000 lbs. (8,165 kg) Rear: 34,000 lbs. (15,455 kg) |
Max Tip Height | 163 ft |
Hydraulic | |
---|---|
Jib | 13FJ44M |
Operational | |
---|---|
Outriggers | 2 sets of "HO"-style with 20 ft. (6 m) full span, 14 ft. (4.2 m) mid span |
Capacity | 30 T (27.2 t) |
Winch | Planetary |
Boom | |
---|---|
Boom Type | 4-section |
Boom Length | 100 ft. (30.48 m) |
Max Tip Height-Boom | 119' |
Lift Speed | 23-164 fpm (7-50 m/min.) |
Max Jib Length | 44 ft. (13.41 m) |
Measurements | |
---|---|
Weight | 28,233 lbs. (12,806 kg) with oil |
Turning Radius | 360° |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | National Crane |
MODEL | 13100A |
