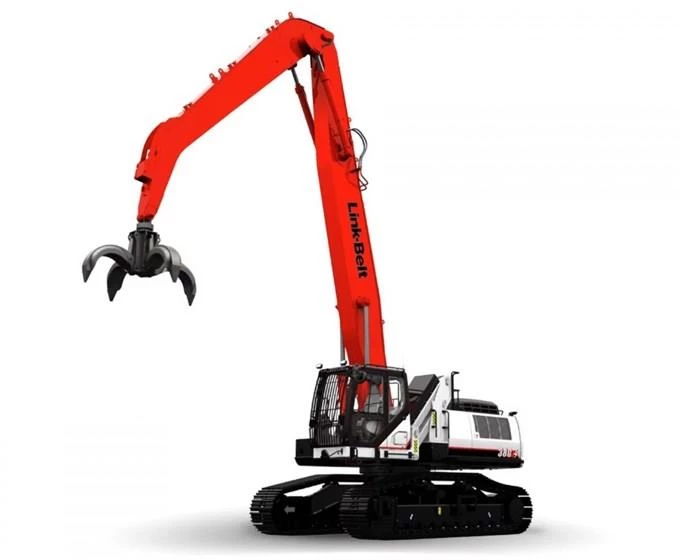

Link-Belt material handling equipment has a proven record in the harshest, most demanding applications. These purpose-built machines feature heavy-duty, high-wide undercarriages, oversized turn tables, and larger drive motors for dependable, long life service. Depending on the application, Link-Belt material handlers can be equipped with a variety of specialized attachments and components to be fit-up to your needs
| Dimensions | |
|---|---|
| Length | 42’9” |
| Width | 12’2” |
| Height | 12’2” |
| Weight | 103,617 lbs |
| Fuel Tank Capacity | 153 gallons |
| Maximum Reach Ground | 49’10” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Engine Type | Turbocharged Diesel Engine |
| Cylinders | 6 |
| Net Horsepower | 268 HP |
| Cooling | Water-cooled |
| Displacement | 7.8 L |
| Torque | 729 lbf-ft @ 1500 rpm |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% |
| Drawbar Pull | 76,200 lbf |
| Alternator | 50 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 10.7 psi |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Pump Output: 2 x 79.3 gpm Pilot Pump Maximum Flow: 7.5 gpm |
| Hydraulic Tank Capacity | 46 gallons |
| Hydraulic Cylinders | number of cylinders-bore x rod x stroke -Boom: 2-6.3” x 55.1” -Arm: 1-5.3” x 57.5” |
| Relief Valve Setting | Boom Up/Arm Out: 4,970 psi Swing Circuit: 4,270 psi Travel Circuit: 4,970 psi |
| Operational | |
|---|---|
| Dig Depth | 17’1” |
| Dig Height | 56’1” |
| Travel Speed - Forward | 1.7-2.8 mph |
| Tail Swing Radius | 11’8” |
| Swing | Planetary reduction powered by axial piston motor. Internal ring gear with grease cavity for swing pinion. Swing bearing is single-row shear type ball bearing. Mechanical disc swing brake. Auto power swing. |
| Swing Torque | 110,600 lbf-ft |
| Swing Speed | 0-7.5 rpm |
| Track Link Pitch | 9” |
| Shoes | 50 per side |
| Shoe Width | 29.5” |
| Battery | |
|---|---|
| Battery | (2) 12-volt 128 amp hours |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 380 X4 MH |
