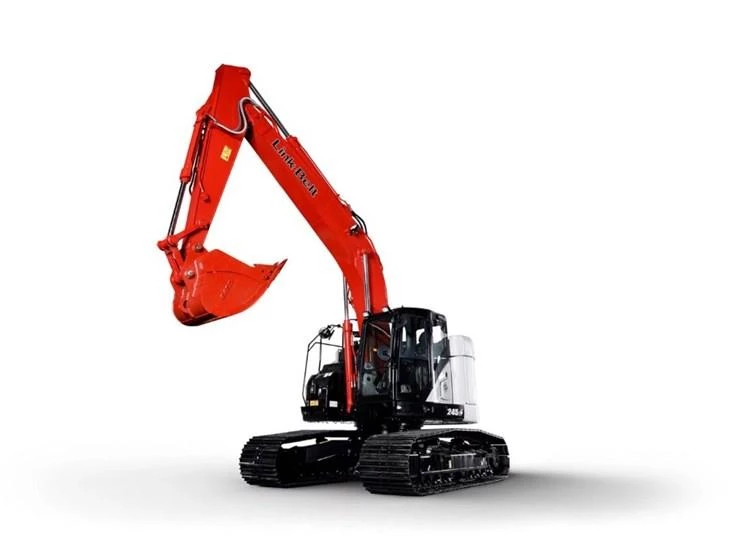

245 X4 Spin Ace
Spin Ace Minimum Swing Radius Excavators get you in and out of tight work spaces easily.
Link-Belt 245 X4 Series excavators are built to exceed your expectations.
We redesigned the control spools and incorporated spool stroke control (SSC) functions into the hydraulic system to reduce pressure loss and distribute hydraulic oil more smoothly, reducing cycle times by up to 10%.
Expect more power and fuel efficiency, thanks to an innovative Final Tier 4 engine that delivers up to 5% improved fuel efficiency, without a Diesel Particulate Filter (DPF) to maintain or replace! Settle in to the roomiest, most accommodating cab in its class, with more legroom and a new highback, heated seat for shift-long comfort. Daily maintenance is a snap, with ground-level access to all service points, easily opened by hand.
|Cab||ROPS and FOPS Level 1 certified with automatic climate control A/C and heat with defroster, 7″ LCD Hi-Definition color monitor with full time rear view camera display, fuel efficiency gauge, low-effort joysticks are pre-wired for auxiliary hydraulics, dual cab lights, pattern control valve, safety glass windows, sunroof with sunshade, shockless cab suspension with four fluid-filled cab mounts, SCM High-Back reclining suspension seat, sliding 4-position tilting control consoles, AM/FM sound system with MP3 auxiliary input jack, digital clock, dome light, seat belt, coat hook, cup holder, storage compartments, floor mat, footrests, ashtray, 24V cigarette lighter, 12V outlet, travel alarm, handrails, mirrors, side-entry cab filter.|
|Controls||Three selectable work modes, RemoteCARE Telematics GPS system, anti-theft password protection system, onboard self-diagnostic system with memory and service interval reminders, auto idling system, one-touch decelerator, auto-idle engine shutdown, auto-power boost, neutral safety start, gate-lock safety shutoff.|
58,100 lbs. (w/dozer blade)
|Fuel Tank Capacity||85 Gallons|
|Maximum Reach Ground||31’9” (9'8" Arm)
30’1” (7’10" Arm)
|Engine Type||Final Tier 4 Turbocharged diesel engine w/electronic control (ECM) and high pressure common-rail fuel injection|
|Net Horsepower||160 HP|
|Displacement||317 cu in|
|Torque||457 lbf-ft @ 1600 rpm|
|DEF Tank Capacity||11.4 Gallons|
|Drawbar Pull||45,000 lbf|
|Track Rollers||8 per side|
|Ground Pressure||5.80 psi|
|Carrier Rollers||2 per side|
|Pump||Pump Output: 2 x 55.7 GPM
Pilot Pump Maximum Flow: 4.8 GPM
|Hydraulic Tank Capacity||30 Gallons|
|Hydraulic System||Open-center system, two variable-displacement electronically controlled axialpiston pumps and one gear pump for pilot controls, main control valve with one 4-spool section and one 5-spool section with auxiliary spool: stackable, Auxiliary Control System, oil cooler, Auto-Power boost, boom and arm anti-drift valves, 6 micron return filter, firewall, hydraulic oil sample port.|
|Hydraulic Cylinders||Number of cylinders-bore x stroke
Boom: 2-4.7” x 53.9”
Arm: 1-5.5” x 57.4”
Bucket: 4.7” x 39.8”
|Relief Valve Setting||Boom/Arm/Bucket: 4,970 PSI
In Power Boost: 5,410 PSI
Swing Circuit: 4,260 PSI
Travel Circuit: 4,970 PSI
|Dig Depth||21’10” (9'8" Arm)
20’1” (7’10" Arm)
|Dig Height||35’8” (9'8" Arm)
34’6” (7’10" Arm)
|Bucket Digging Force||34,600 lbf|
|Dump Height||26’2” (9'8" Arm)
25’ (7’10" Arm)
|Bucket Capacity||0.61-1.75 cu yds|
|Travel Speed - Forward||2.0-3.1 mph|
|Maximum Reach||32’4” (9'8" Arm)
30’9” (7’10" Arm)
|Tail Swing Radius||5’10”|
|Swing||Planetary reduction powered by axial-piston motor, Internal ring gear with grease cavity for swing pinion, Swing bearing is single-row, shear type ball bearing, Mechanical disc swing brake, Free swing.|
|Max. Arm Digging Force||30,000 lbf|
|Swing Torque||47,200 lbf-ft|
|Swing Speed||11.5 rpm|
|Track Link Pitch||7.48”|
|Shoes||49 per side|
|Battery||(2) 12-volt 92 amp hours|
