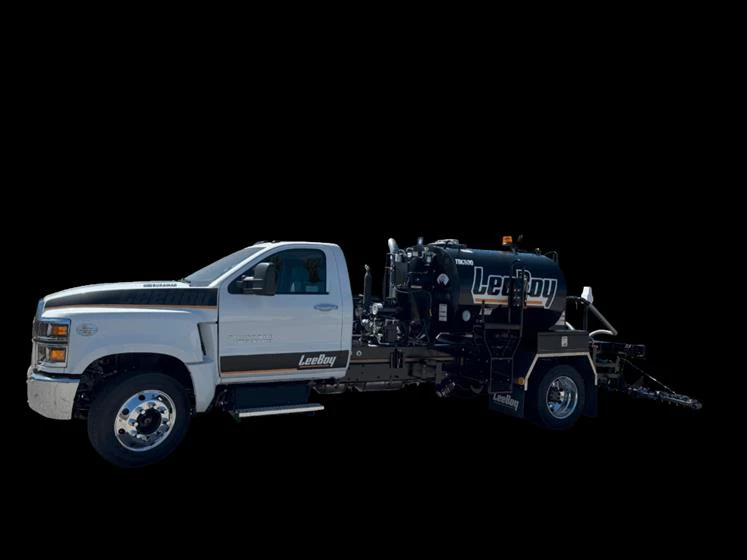

New LeeBoy TDC600 Tack Distributor for Sale The TDC600 Tack Distributor provides a cost-efficient option for large projects and is perfect for the all inclusive commercial paving contractor. This chassis mounted tank, along with its many standard features, such as long-ranged wireless remote controls, allows you to complete many of your daily tasks with efficiency and ease. Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs. |
| Body | |
|---|---|
| Manhole Diameter | 20” 10” (Fill hole) |
| Manhole Pressure Relief | 3 PSI |
| Temperature | Adjustable Material Temperature Set Point |
| Dimensions | |
|---|---|
| Length | Dependent upon type of truck purchased |
| Width | Dependent upon type of truck purchased |
| Height | Dependent upon type of truck purchased |
| Weight | Dependent upon type of truck purchased |
| Tank Capacity | 600 Gallons |
| Nozzle Spacing | 4" centers |
| Tank Length | 64” |
| Tank Width | 70" |
| Tank Height | 42” |
| Shipping Weight | 5,320 lbs. |
| Loading Weight | 10,180 lbs. |
| Bar Length | 12' full circulating bar |
| Center Section | Two 4' sections |
| Nozzle Type | #0 nozzles |
| Spray Width Increment | 4" increments (via quick-disconnect) |
| Wing Section | Two 2' folding sections |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Horsepower | 24.8 HP |
| Fuel Tank Capacity | 16 gallon |
| Temperature Gauge | 0 – 500ºF Adjustable angle faceplate |
| Flush Tank | 7 gallons |
| Operational | |
|---|---|
| Heating System | One 300,000 BTU diesel burner Five pass flue system Galvanized exhaust stack Material temperature set point adjustable from in-cab controls automatically turns off burner when reached. |
| Pump Capacity | 150 GPM |
| Clean Out | 4” |
| Heat System Burners | 1 300,00 BTU Diesel |
| Pump Type | Viking Asphalt |
| Sampling Valve | 1” |
| Flue Design | Five pass flue system Galvanized exhaust stack |
| Bar Lift/Lower Mechanism | Manual (trailer tongue jack) |
| Nozzle/Valve Material | Brass, slotted (non-clogging) |
| Individual Spray Valve Control | Levers can be flipped to deactivate/shorten spray width |
| Wing Fold Direction | Outer 2' sections fold vertically |
| Wing Safety Feature | Angle switch auto-disables spray when wings folded up |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | LeeBoy |
| MODEL | TDC600 |
