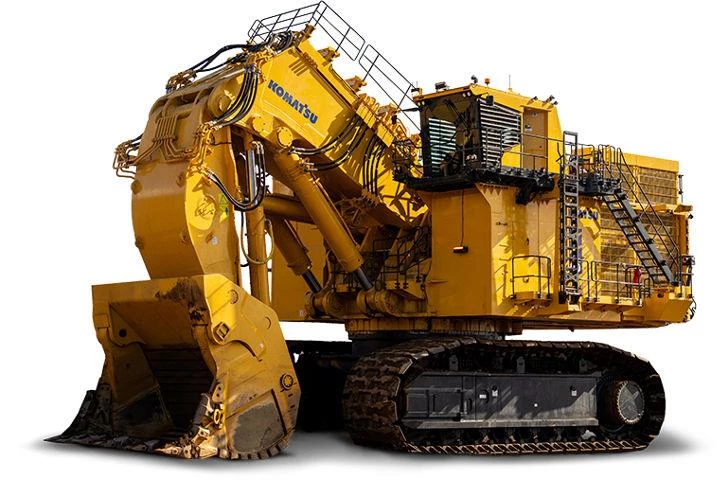

Kirby-Smith has new Komatsu PC9000-12 Mining Excavator for Sale Power, performance and reliability The Komatsu PC9000 is the next class of hydraulic mining excavators engineered for maximum performance in large-scale mining operations. It is available in front shovel and backhoe configuration and can be equipped with diesel engines or electric motors to fit your unique mining application. It is optimized for Komatsu trucks in the range of 240 - 400 short-tons, up to the 980E series, ensuring optimal truck match and high productivity in demanding mining environments. Features and benefits
|
| Specs | |
|---|---|
| Wear Package | Standard/Heavy Duty (front shovel) Standard (Backhoe) |
| Body | |
|---|---|
| Controls | Joystick: electro-hydraulic joystick controls Foot: foot control for shovel clam, crawler and swing brake |
| Configuration | Bucket: 60 yd³ (front shovel) 64 yd³ (backhoe) |
| Heater/Defroster/Air Conditioning | AC System: Automatic air-condition unit |
| Seat | Suspension: Full suspension operator seat with belt Heating: Electrically heated Belt: Operator and Trainer seat with belt Adjustment: Multiple adjustments |
| Radio | AM-FM radio with USB charging, Blue-tooth, Hands-free telephone function, DAB optional |
| Number of Shoes | 41 (each side) (Track Shoes) |
| Window | Sliding: ESG escape window, VSG according to ECE R43 Tinting: Parsol green Penetration proof: Impact resistant front window (21 mm and tolerances) |
| Number of Rollers | Top: 3 (each side) Bottom: 6 (each side) |
| High Pressure Screen | 200 microns |
| Windshield | Heating: Heated windshield Washers: 1 large parallel windshield wash wiper Washer speed: two speeds and intermittent operation |
| Mirror | 2 heated additional rear mirrors |
| Blinds | Sun: internal and external Roller: standard on all windows (excluding rear door) |
| Walkway | Walkway around the cab |
| Dimensions | |
|---|---|
| Length | 37’7” |
| Width | 30’11” |
| Height | 33’8” |
| Operating Weight | 1,948,884-1,977,544 lbs. (front shovel) 1,975,340-2,004,000 lbs. (backhoe) |
| Fuel Tank Capacity | 4611 Gallons |
| Cutting Width | 19’4” (front shovel) 17’4” (backhoe) |
| Stick Length | 19’2” (front shovel) 18’4” (backhoe) |
| Overall Bucket Width | 19’4” (Front Shovel Bucket) 17’4” (Backhoe Bucket) |
| Bucket Opening Width | 10’8” (front shovel) |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SSDA16V160E-3 |
| Engine Type | Direct injection |
| Horsepower | 2250 HP (diesel) 2280 HP (electic) |
| Cooling | Water-cooled |
| Electrical System | 24 V |
| Governor | All-speed, electronic |
| Rated RPM | 1800 RPM |
| Lubrication System | Three hydraulically powered single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1x 660l and 1x 330l (total 990l). Replenishment of the containers is through the quick coupling connections on the service arm. |
| Aspiration | Two-stage turbocharged and aftercooled |
| Cycles | 4 |
| Engine Oil Capacity | 156 Gallons |
| DEF Tank Capacity | 2 x 155 Gallons |
| Engine Amount | 2 |
| Engine Lubrication Capacity | 262 Gallons |
| Travel Speed | 1.2 mph |
| Engine Coolant Capacity | 303 Gallons |
| Drivetrain | |
|---|---|
| Brakes | Service: Hydraulic Brake Parking: Multiple Brake |
| Gradeability | 48.8% |
| Alternator | 2x 260A (T4) |
| Ground Pressure | 31.8-39.9 PSI (front shovel) 32.2-40.5 PSI (backhoe) |
| Track Adjuster | Automatic hydraulic type |
| Hydraulic | |
|---|---|
| Pump | 8 swash plate pumps |
| Hydraulic System | The power train consists of two main drives. Each of the two gearboxes drives four identical main pumps which draw hydraulic oil from an unpressurised hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency. |
| Hydraulic Flow | 273 GPM (per pump) |
| Number of Cylinders | 16 |
| Hydraulic Motors | 3 (and swing gears) |
| Hydraulic System Capacity | 3354 Gallons |
| Hydraulic System Pressure | 4641 PSI (all circuits) |
| Hydraulic Oil Tank Filling Capacity | 1940 Gallons |
| Operational | |
|---|---|
| Dig Depth | 10’10” (front shovel) 28’10” (backhoe) |
| Dig Height | 59’2” (backhoe) |
| Dump Height | 43’10” (front shovel) 38’2” (backhoe) |
| Frequency | 50/60 Hz |
| Flow | The five-circuit systems feature a load-limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritizes hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components. The hydraulic system includes large vertical air-to-oil hydraulic coolers with temperature-regulated hydraulically driven fans. |
| Boom Length | 27’3” (front shovel) 38’5” (backhoe) |
| Swing Speed | 3.4 RPM |
| Shoe Width | 5’5”-6’11” |
| Pad Type | Enclosed steel cab mounted on vis-cous pads (Damping Pads) |
| Swing Brake | Dynamic: Hydraulic Parking: Multiple-disc |
| Swing Ring Teeth | External |
| Swing Flow Rate | 547 GPM |
| Digging Reach | 61’4” (front shovel) 72’4” (backhoe) |
| Arm Crowd Force | 651,946 lbf. (front shovel) |
| Cutting Height | 68’10” (front shovel) |
| Arm Breakout Force | 538,417 lbf. (front shovel) 476,594 lbf. (backhoe) |
| Tear Out Force | 439,501 lbf. (front shovel) |
| Bucket Teeth | 6 |
| Level Crowd at Ground Level | 18’2” (front shovel) |
| Battery | |
|---|---|
| Voltage | 6.0-7.2 kV |
| Amps | 385-321 A |
| Battery | 6x 12 V |
| Electrical | |
|---|---|
| Lighting | 14 LED lights (standard working lights) Service: Throughout the platform, on the roof and boom, including emergency egresses and stairways |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC9000-12 |
