Komatsu PC1250SP-11

New Komatsu Excavator PC120SP-11 for Sale

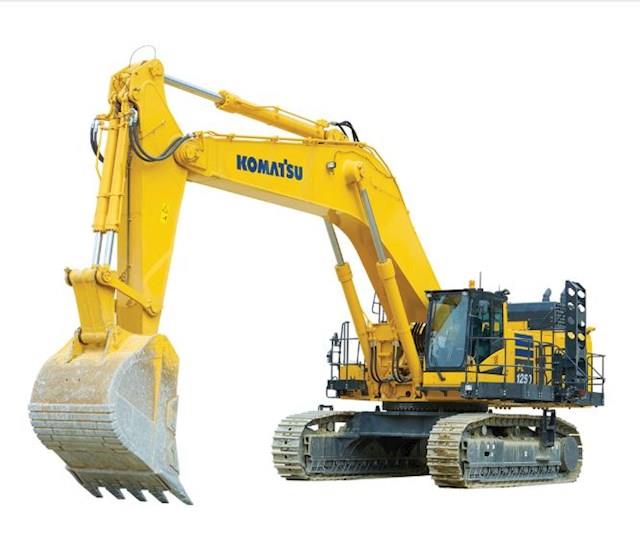

New Komatsu PC1250SP-11 Excavator for Sale

The PC1250SP-11, equipped with a shorter 25’7” (7800 mm) boom and 11’2” (3400 mm) arm is designed for larger buckets, provides high digging forces and is an ideal match to 50-70 ton class rigid frame trucks.

FEATURES

  • INCREASED PERFORMANCE: The PC1250SP-11 engine power is 13% greater than the former model. This increased engine power provides greater hydraulic power and up to 8% faster cycle times than the PC1250LC-8. This advantage shows up in faster digging and boom up, arm out swing to truck cycle segments. The PC1250SP-11 is an excellent match for loading 60 – 100 ton rigid frame trucks.
  • UPDATED CAB AND MONITOR: The PC1250SP-11 uses a cab mount damping system that incorporates long stroke vibration isolators. This cab mounting system combined with a strengthened left and right side decks, aids vibration reduction at the operator’s seat. An upgraded 7” color monitor is now 40% larger than the previous model and incorporates the updated operator interface introduced on the smaller Dash 11 Komatsu excavator models.
  • KOMATSU KOMVISION BIRD’S EYE CAMERA SYSTEM STANDARD: A new 4 camera bird’s eye vision system provides improved visibility around the machine, a real benefit when working around trucks on a busy loading area. An updated monitor interface provides an overhead bird’s eye view, selectable single camera views or a full screen viewing mode.
  • OPTIONAL HYDRAULIC ACCESS LADDER AND SERVICE TIE OFF POINTS:
  • A new hydraulic powered access ladder provides significantly easier access to the operator cab and walk ways. When lowered, the ladder provides a 45 degree stair, when raised, it stores out of the way in a vertical position. The access ladder is available factory installed or as a field installation kit. When working in elevated positions on the boom and arm, tie off points provide anchors for technician harness lanyards.
  • KOMTRAX AND KOMTRAX PLUS: KOMTRAX Plus provides expanded machine monitoring beyond KOMTRAX using Iridium® satellite and wireless LAN communication modes. Advanced Iridium® satellite communication technology provides uninterrupted KOMTRAX data transmission in remote locations. Machine health and performance can be analyzed from a remote location in a near real time basis including component condition and trend data.
  • CENTER AISLE MAINTENANCE WALKWAY: A wide center walkway provides easy access to key inspection and maintenance areas. Additionally, grouped inspection and maintenance points facilitate efficient service in checks.
Body
Frame Center: H-leg frame
Track: Box-section
Steering Two levers with pedals
Dimensions
Length 48’8”
Width 18’3” (walkway installed)
11’5” (Upper L/R walkways walkway removed)
7’5” (Upper R walkway walkway removed)
Height 13’6”-20’7”
Weight 259,960-265,900 lbs.
Ground Clearance Counterweight-5’10”
Minimum-3’3”
Fuel Tank Capacity 359.3 Gallons
Engine
Drive Type Hydraulic
Engine Make Komatsu
Engine Model SAA6D170E-7
Engine Type Water-cooled, 4-cycle, direct injection
Cylinders 6
Horsepower 775 HP
Net Horsepower 758 HP
Bore x Stroke 6.69” x 6.69”
Governor All-speed, electronic
Rated RPM 1800 RPM
Aspiration Turbocharged, aftercooled, cooled, EGR
Piston Displacement 1,413 in³
Drivetrain
Drive Fully hydrostatic; 2 x hydraulic motors
Brakes Service-Hydraulic
Parking-Oil disc
Gradeability 70%, 35°
Track Length 21’1”; 16’5” (on ground)
Drawbar Pull 154,320 lbf
Track Type Sealed
Track Rollers Standard, SP-8 (each side)
Long undercarriage-10 (each side)
Ground Pressure 15.64- PSI-21.85 PSI
Carrier Rollers 3 (each side)
Track Adjuster Hydraulic
Hydraulic
Pump Variable capacity piston, Sub-pump for control circuit-Gear Type, Fan drive-Variable-capacity piston type
Std Pump Flow Implement & Travel: 2x130.5 gal/min; Swing: 1x158.5 gal/min
Hydraulic Cylinders Number of cylinders-bore x stroke x rod diameter
Cylinder Boom: 2-8.9" x 94.1" x 6.3"
Cylinder Arm: 1-9.8" x 95.9" x 6.7"
Number of Buckets: bore x stroke x rod diameter
Standard: 2-6.3" x 71.8" x 4.5"
SP: 2-6.3" x 76.8" x 4.5"
Relief Valve Setting Implement circuits: 4,550 psi
Travel circuit: 4,980 psi
Swing circuit: 4,267 psi
Pilot circuit: 455 psi
Travel Motor Axial piston motor, in-shoe design
Hydraulic Motors Travel: 2 x axial piston motors with parking brake
Swing: 2 x axial piston motors with swing holding brake
Hydraulics Open-center load sensing system, 1 selectable working mode
Operational
Dig Depth 25’11”
Dig Height 42’8”
Arm Length 11’2”
Dump Height 27’9”
Bucket Capacity 4.1-11.9 yd³
Travel Speed - Forward High-2 mph, Low-1.5 mph
Boom Length 25’7”
Tail Swing Radius 15’11”
Swing Torque 299,524 lb-ft
Swing Speed 5.8 RPM
Shoes Standard, SP-48 (each side)
Long undercarriage-55 (each side)
Track Gauge 12’10”
Swing Reduction Planetary gear
Swing Circle Lubrication Grease-bathed
Swing Lock Mechanical disc brake
Hydraulic Type Open-center load sensing system, 1 selectable working mode
Digging Reach 46’2”
44’10” (at ground level)

ENGINE

  • Automatic engine warm-up system
  • Dry type air cleaner, double element
  • Engine, Komatsu SAA6D170E-7
  • Fuel pre-filter with water separator
  • Variable speed cooling fan, hydraulic drive, reversible

ELECTRICAL SYSTEM

  • Alternator, 24 V/90 A
  • Auto idle shutdown (programmable)
  • Auto-decelerator
  • Batteries, 2 x 12 V/220 Ah
  • Battery disconnect switch w/lock out - tag out
  • Circuit breaker
  • Lever lock auto-lock
  • Power supply, 12 V
  • Starting motor, 2 x 24 V/11k
  • Step light with timer
  • Service isle light
  • Working lights, 2 boom, 2 cab roof front, 1 right front, 2 LED rear facing

GUARDS AND COVERS

  • Cab guards
    -Bolt-on top guard, OPG Level 2 (ISO 10262)
  • Strengthened revolving frame underguards
  • Revolving frame swivel guard
  • Track guiding guards, ends and center
  • Travel motor guard
  • Radiator and oil cooler dustproof net

HYDRAULIC SYSTEM

  • 2 speed travel with auto shift
  • Power+ work mode
  • Automatic swing holding brake
  • Fully hydraulic, with Open-Center Load-Sensing and engine speed sensing
    (Pump and engine mutual control system)
  • Heavy lift mode
  • In-line high pressure pump outlet filters
  • Pressure Proportional Control (PPC) hydraulic control system
  • Shockless control system for boom
  • Two-mode setting for boom

OPERATOR ENVIRONMENT

  • 2 x 12V power ports in cab
  • Auto climate control, A/C with defroster
  • AM/FM radio
  • Auxiliary input (3.5 mm jack)
  • Cab with opening front window
  • Engine shut down secondary switch
  • High back air suspension seat, heated
  • KomVision, 4 camera system
  • Large high resolution LCD color monitor
  • Lock lever
  • Mirrors (RH,LH)
  • Rear & Side view monitor system
  • Seat belt, retractable, 3" 75 mm
  • Washable cab floor mat

OTHER EQUIPMENT

  • Counterweight, 36,640 lb 16620 kg
  • Electric priming pump for fuel system
  • Equipment Management Monitoring System
  • Grease gun, with hose reel and air power pump
  • Hand rails & guard rails
  • Horn, air
  • KOMTRAX 5.0 with KOMTRAX Plus
  • One-touch engine oil drainage
  • Preventive Maintenance (PM) service connector
  • Tie off points on boom & arm
  • Rear reflector
  • Seat belt indicator
  • Slip-resistant plates
  • Travel alarm
  • Vandalism protection locks
  • Wide walkways

PC1250SP-11 UNDERCARRIAGE

  • Carrier rollers, 3 (Each side)
  • Hydraulic track adjusters (Each side)
  • Track rollers, 8 (Each side)
  • Track shoes, 27.6" 700 mm double grouser

GUARDS AND COVERS

  • Cab guards
    • Full front guard, OPG Level 2 (ISO 10262)

OPERATOR ENVIRONMENT

  • Hydraulically operated access stairway
  • Hydraulic operated access stairway Field Installation Kit

UNDERCARRIAGE

  • PC1250SP-11
    • 39.4" 1000 mm double grouser track shoes
    • Track roller guard (Full length)

OTHER

  • Boom cylinders only

WORK EQUIPMENT

  • Booms
    • PC1250SP-11
      • 25'7" 7800 mm SP boom assembly
  • Arms
    • PC1250SP-11
      • 11'2" 3400 mm SP arm assembly
