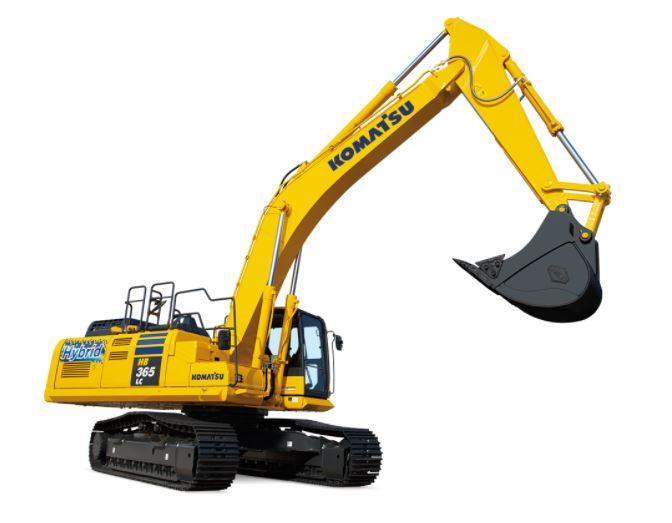

Komatsu HB365LC-3

New Komatsu HB365LC-3 Excavator for Sale

The HB365LC-3 is Komatsu’s latest generation hybrid excavator, utilizing a Komatsu SAA6D-114E-6 Tier 4 Final engine and electric swing drive to reduce fuel consumption by up to 20% (depending on the application). The electric swing motor-generator is more efficient than a conventional excavator, capturing wasted kinetic energy and storing it in a Komatsu ultra-capacitor. Stored energy from the ultra-capacitor is then sent to either the electric swing motor, or an engine mounted motor-generator to provide fast response from an ultra-low 700rpm idle speed. The new hybrid HB365LC-3 continues to raise the industry bar for hybrid technology and fuel savings with an excavator that has both power and efficiency, while reducing environmental impact.

Features

  • POWERFUL KOMATSU SAA6D114E-6 ENGINE: A powerful Komatsu SAA6D114E-6 engine provides a net output of 201 kW 269 HP. This engine is EPA Tier 4 Final emissions certified.
  • LARGE DISPLACEMENT HIGH EFFICIENCY PUMP: Large displacement hydraulic implement pumps provide high flow output at lower engine RPM as well as operation at the most efficient engine speed.
  • ELECTRIC SWING MOTOR-GENERATOR: An electric swing motor-generator recovers energy during swing braking. The motor-generator also accelerates the swing of the upper structure more efficiently than a conventional hydraulic motor and provides excellent swing performance. Dedicated lubrication and cooling systems are used for reliability and durability.
  • MOTOR GENERATOR: A motor-generator is positioned between the engine and hydraulic pumps to assist in rapid engine response from ultra low idle when required. The generator produces electric power and charges the capacitor when required.
  • ULTRA CAPACITOR ASSEMBLY: The ultra-capacitor assembly includes an inverter that switches the AC electricity from the generator motor and swing motor into DC electricity for storage in the capacitor. Since capacitors require migration of electrons and ions for charging and discharging, they can transfer power much faster than batteries, which use chemical reactions to produce electricity. The industrial quality designed inverter and capacitor provide long service life, and require no periodic maintenance.
  • ENERGY MANAGEMENT SCREEN: The hybrid system operating status can be easily displayed on the monitor to show how energy is flowing through the system components which include capacitor charging/ discharging and engine assist by the generator/motor.
  • VISCOUS FAN CLUTCH: A temperature controlled viscous fan clutch improves engine efficiency and reduces engine power requirements when operating in cooler temperatures.
  • OPTIONAL KOMVISION: Images from 4 camera's are combined to display a "birds eye" view of the area around the machine for improved operator awareness. A second display with selectable individual camera views of the left, rear, and right sides is easily changed using the F4 button. A red line continuously shows where the counterweight will be during swinging and a camera icon indicates which camera is being displayed on individual camera display screen.
Body
Frame Center: X-frame
Track: Box-section
Steering Two-lever with pedals
Dimensions
Length 36’7” (w/arm length 10’5”)
36’8” (w/arm length 13’2”)
Width 11’3”
Height 10’9” (w/arm length 10’5” to top of boom)
12’4” (w/arm length 13’2” to top of boom)
10’5” (to top of cab)
10’8” (to top of handrail)
Weight 85,495 lbs.
Ground Clearance 1’8”-3’11”
Fuel Tank Capacity 159.8 gal
Transport Length 19’6” (w/arm length 10’5”)
18’0” (w/arm length 13’2”)
Engine
Drive Type Fully hydrostatic
Engine Make Komatsu
Engine Model SAA6D114E-6
Engine Type Water-cooled, 4-cycle, direct injection
Cylinders 6
Horsepower 271 HP
Net Horsepower 269 HP
Cooling Water-cooled
Bore x Stroke 4.49” x 5.69”
Governor All-speed control, electronic
Rated RPM 1950 RPM
Aspiration Turbocharged, aftercooled, cooled EGR
Cycles 4
Piston Displacement 540 in³
Drivetrain
Drive Electric Drive
Brakes Service: Hydraulic lock
Parking: Mechanical disc
Gradeability 70%, 35°
Track Length 16’3”
13’3” (on ground)
Drawbar Pull 65,191 lbs.
Track Type Sealed
Track Rollers 8 (each side)
Ground Pressure 7.35 PSI (Shoes-33.5” & Weight-84,335 lbs.)
7.77 PSI (Shoes-31.5” & Weight-83,894 lbs.)
8.79 PSI (Shoes-28” & Weight-83,012 lbs.)
Grouser Height 1.4”
Carrier Rollers 2
Track Adjuster Hydraulic
Hydraulic
Pump Variable displacement capacity piston type; Pumps for Boom, arm, bucket, swing, and travel circuits
Std Pump Flow 141.3 gal/min
Control Valve Self-reducing valve
Hydraulic Tank Capacity 49.7 gal
Hydraulic Cylinders (Number of cylinders-bore x stroke x rod diameter)
Boom: 2-5.5” x 58.3” x 3.9”
Arm: 1-6.3” x 71.9” x 4.3”
Bucket for 10’5” & 13’2” Arms: 1-5.5” x 50.6” x 3.9”
Relief Valve Setting Implement & Travel circuits: 5540 PSI
Pilot circuit: 470 PSI
Travel Motor Axial piston motor, in-shoe design
Hydraulic Motors Travel: 2 x axial piston motors with parking brake
Swing: 1 x axial piston motor with swing holding brake
Hydraulics HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valves and pressure compensated valves
Operational
Dig Depth 24’3”-26’10”
Dig Height 33’6”-34’7”
Arm Length 10’5"
Dump Height 23’4”-24’7”
Bucket Capacity 0.89-2.56 yd
Travel Speed - Forward High: 3.4 mph
Mid: 2.8 mph
Low: 2.0 mph
Boom Length 21’3"
Tail Swing Radius 11’4”
Swing Torque 82,313 ft. lbs.
Swing Speed 9.5 rpm
Shoes 48
Shoe Width 33’5”
Track Gauge 8’6”
Swing Reduction Planetary gear
Swing Circle Lubrication Grease-bathed
Swing Lock Mechanical disc brake
Drive Method Fully hydrostatic
Swing System: Electric Drive
Hydraulic Type HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valves and pressure compensated valves
Digging Reach 36’5”-39’1”
35’10”-38’6” (at ground level)
  • ENGINE
    • Auto idle
    • Auto idle shut down programmable
    • Automatic engine warm-up system
    • Dry type air cleaner, double element
    • Engine, Komatsu SAA6D114E-6
    • Engine coolant to -25°C -13°F
    • Engine overheat prevention system
    • Fuel pre-filter (10 micron, with water separator)
    • Fuel priming pump
    • Viscous fan clutch, temperature controlled
  • HYBRID SYSTEM
    • Ultra capacitor with inverter
    • Electric swing motor/generator
    • Engine mounted motor/generator
    • Hybrid component cooling system
  • ELECTRICAL SYSTEM
    • Alternator, 24 V/90 A
    • Batteries, large capacity (2 x 12V)
    • Battery master disconnect switch
    • Electric horn
    • Power ports (2) 24V to 12V
    • Starting motor, 24 V/11 kW
    • Working lights, 2 (Boom and RH front)
  • HYDRAULIC SYSTEM
    • Arm holding valve
    • Boom holding valve
    • Power maximizing system
    • PPC hydraulic control system
    • Service valve, one additional function
    • Two-mode setting for boom
    • Working mode selection system
  • GUARDS AND COVERS
    • Carbody swivel guard
    • Pump/engine compartment partition
    • Revolving frame deck guards
    • Revolving frame under covers
    • Slip resistant plates
    • Thermal and fan guards
    • Track roller guards (center section)
  • UNDERCARRIAGE
    • 3 speed travel with auto shift
    • Carrier roller (2 each side)
    • Hydraulic track adjusters (Each side)
    • Track roller, 8 each side
    • Track shoe, triple grouser, 850 mm 33.5"
  • OPERATOR ENVIRONMENT
    • Auxiliary input (3.5 mm jack)
    • Automatic climate control/air conditioner/heater/defroster
    • High back air suspension seat with heat
    • Large high resolution 7" LCD monitor
    • Lock lever, work equipment
    • Mirrors (RH and LH)
    • Operator protective top guard (OPG), level 1
    • Rear view monitor system - one camera
    • ROPS cab (ISO 12117-2)
    • Seat belt indicator
    • Seat belt, retractable, 76 mm 3"
    • Secondary engine shut down switch
    • Skylight, opening
  • OTHER EQUIPMENT
    • AM/FM radio
    • Counterweight, 6320 kg 13,933 lb
    • Equipment Management Monitoring System (EMMS)
    • KOMTRAX® level 5.0
    • Operator identification system
    • Radiator and oil cooler removable debris screen
    • Rear reflector
    • Travel alarm

Arms:

  • 3185 mm 10'5" arm assembly
  • 3185 mm 10'5" arm assembly with piping
  • 4020 mm 13'2" arm assembly
  • 4020 mm 13'2" arm assembly with piping

Booms:

  • 6500 mm 21'3" HD boom assembly
  • 6500 mm 21'3" HD boom assembly with piping

Cab guards:

  • Lower front window guard
  • Full front guard, OPG Level 1
  • Full front guard, OPG Level 2
  • Bolt-on top guard, OPG Level 2

Other:

  • KomVision surround camera system
  • Hydraulic control unit, 1 actuator
  • Proportional control handles for auxiliary hydraulics
  • Rain visor
  • Revolving frame undercovers, heavy duty
  • Sun visor
  • Track roller guards, full length
  • Track shoes, triple grouser, 700 mm 28"
  • Track shoes, single grouser, 800 mm 31.5"
  • Working lights, front, two additional cab mounted
