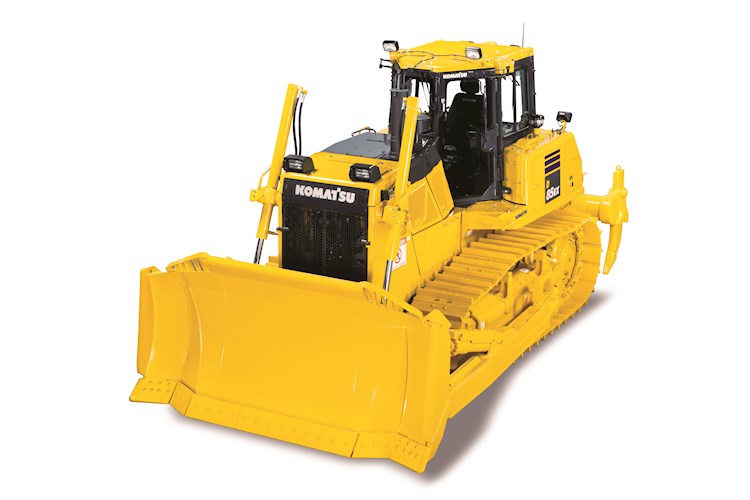

Need a powerful, economical dozer with outstanding floatation? You’ll appreciate the D85PX-18’s 11-liter engine, 14’ 4” straight tilt blade, fuel-efficient automatic transmission and expansive footprint for soft ground conditions. Optional extended wear life undercarriage with 36” wide PLUS (Parallel Link Undercarriage System) rotating bushing track shoes is available.
Custom build the dozer you need: All the dozers in the D65/85/155 family offer you outstanding power, economy and reliability. Customize yours with the blade (straight, Semi-U, Sigmadozer and Full U (D155 only)), track shoe width and horsepower combo best suited to your particular application.
Helps minimize fuel use: An advanced Tier 4 engine offers you a potent combo of power and fuel efficiency. An auto idle shutdown, adjustable from 5-60 minutes, also helps cut fuel use and emissions.
Controls help fight operator fatigue: Operators will enjoy the palm command electronic control joysticks that fit the natural relaxed shape of their hands. Auto-shift or manual-shift modes are easily selected with one push of a button for precision with less fatigue over the course of a shift.
Smooth, powerful handling: Your operators can execute smooth powerful turns with the hydrostatic steering system. It transmits engine power to both tracks without power interruption and minimizes turning radius with counter-rotation while in neutral.
Long-lasting undercarriage: Get the most from your dozer. The Parallel Link Undercarriage System (PLUS) with rotating bushings delivers up to twice the life of our conventional undercarriage with no pin and bushing turn required. Parts wear evenly and last longer before needing replacement.
Work with fuel-efficient power: Seek maximum work efficiency with a lock-up torque converter. It determines the appropriate gear based on load and conditions. The lockup mechanism then automatically transfers engine power directly to the transmission, helping boost drive train efficiency.
intelligent Machine Control (iMC): With automatic dozing, rough cut to finish grade, iMC-equipped machines make every pass count. Dozers “learn” operator blade input. In select situations, operators can opt for near-100% auto control. And, iMC helps new operators get up to speed quickly.
Help operators stay focused: Your operators perform best when they’re comfortable. That’s why they’ll love the air suspension seat with lumbar support and tilt. It’s easy for them to adjust to suit their needs, and electric heat helps them stay comfortable in the cold.
Situational awareness: A standard rear camera monitoring system displays the view behind the dozer on the large color monitor in the cab.
No-hassle DPF regeneration: Tier 4 machines use diesel particulate filters to burn off engine soot via regeneration. To help make sure it rarely impacts your operation, all D65/D85/D155 models use continuous passive regeneration, and active regeneration that typically doesn’t require the dozer to stop.
|Width||7 ft. 5 in. (2,250 mm)|
|Height||10 ft. 11 in. (3,328 mm)|
|Wheelbase||11 ft. 5 in. (3,480 mm)|
|Ground Clearance||1 ft. 6 in. (450 mm)|
|Turning Radius||7 ft. 3 in. (2.2 m)|
|Operating Weight||63,800 lbs.|
|Fuel Tank Capacity||124.1 gal. (470 l)|
|Frame Type||Track roller: Monocoque, large section, durable construction|
|Final Drive||Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth protects seals and improves durability.|
|Engine Type||4-cycle, direct injection|
|Net Horsepower||264 hp (197 kW) @ 1,900 rpm|
|Bore x Stroke||4.49 x 5.69 in. (125 x 150 mm)|
|Displacement||674 cu. in. (11.04 l)|
|Speed - Foreward||1st: 2.1 MPH
2nd: 3.8 MPH
3rd L: 4.8 MPH
3rd: 6.3 MPH
|Speed - Reverse||1st: 2.7 MPH
2nd: 5.0 MPH
3rd L: 5.7 MPH
3rd: 8.1 MPH
|Gross Horsepower||267 hp (199 kW) @ 1,900 rpm|
|Governor||All-speed and mid-range, electronic|
|Rated RPM||1900 RPM|
|Lubrication System||Method: Gear pump, force lubrication
|Aspiration||Komatsu variable geometry turbocharged, air-to-air aftercooled|
|Fan Drive Type||Hydraulic|
|Number of Speeds||3|
|Ground Pressure||5.77 PSI|
|Track Number||8 each side|
|Control Valve||Spool control valves for SIGMADOZER, semi-u tilt or straight tilt dozer
Blade lift-Raise, hold, lower, and float
Blade tilt-Right, hold, and left
Rear attachment-Raise, hold, and lower
|Hydraulic System||Closed-center load sensing system (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.|
|Hydraulic Cylinders||Number of Cylinders x Bore
Blade lift: 2 x 4.0”
Blade tilt: 1 x 5.9”
Blade angle: 1 x 5.9” (only SIGMADOZER)
Ripper lift: 2 x 5.1”
Pitch angle: 45°-51° (SIGMADOZER) & 52°-58° (Straight Tilt Dozer)
|Relief Valve Setting||3,270 PSI|
|Blade Width||14 ft. 4 in. (4,355 mm)|
|Blade Height||4 ft. 7 in. (1,400 mm)|
|Blade Capacity||7.7 yd³|
|Blade Tilt||1 ft. 8 in. (500 mm)|
|Dig Depth||Maximum Drop Below Ground:
1 ft. 10 in. (560 mm)
|Suspension||Oscillating equalizer bar and pivot shaft|
|Steering||Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn.
Hydrostatic Steering System (HSS) is powered by steering planetary units and a hydraulic pump and motor. Counterrotation turns are also available. Wet, multiple-disc, pedalcontrolled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.
|Shoes||45 each side
Lubricated tracks. Unique dust seals for preventing entry of foreign abrasives into pin-to-bushing clearance for extended service life. Track tension is easily adjusted with grease gun.
|Shoe Type||Single Grouser|
|Ground Contact||9,820 in²|
