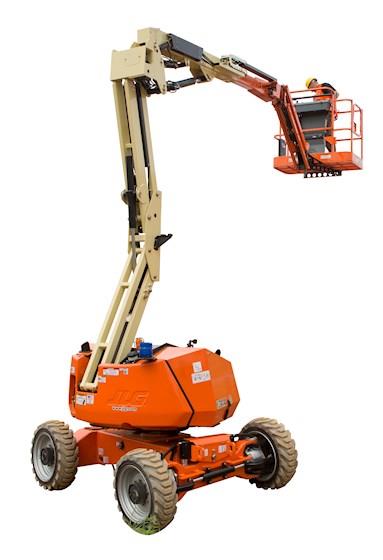

New JLG H340AJ Hybrid Articulating Boom Lift for Sale
The H340AJ Hybrid boom lift combines diesel-strength performance with the benefits of hybrid efficiency.
- Diesel-like performance – Four independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
- Hybrid technology – Runs completely on 8 x 12v 100 amp-hour AGM batteries, which are charged by the diesel generator
- Versatility – The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
- Low emissions – Experience reduced fuel use*, emissions, noise and maintenance
|
|
| Length |
18 ft. 2 in. (5.54 m) |
| Width |
6 ft. 4 in. (1.93 m) |
| Height |
6 ft. 7 in. (2.01 m) |
| Weight |
9,860 lbs. (4,472.42 kg) |
| Wheelbase |
6 ft. 2 in. (1.88 m) |
| Ground Clearance |
10 in. (0.26 m) |
| Turning Radius |
13' (Outside) |
| Platform Capacity |
500 lbs. |
| Engine Type |
Kubota diesel |
| Horsepower |
11.1 hp (8.28 kW) |
| Fuel Tank Capacity |
13 gal. (49.2 l) |
| Drive Speed |
3.7 MPH (Platform Lowered) |
| Hydraulic Tank Capacity |
20.6 gallons |
| Ground Bearing Pressure |
64 PSI |
| Battery |
8 x 12V, 100 Amp-Hour |
| Electrical System |
48 Volts DC |
| Jib |
139 Degrees (range of articulation) |
| Tires |
265/50 D20 Foam Filled |
| Gradeability |
45% |
| Rotation |
Horizontal Jib: 0° |
| Platform Height |
33 ft. 10 in. (10.29 m) |
| Platform Size |
Dimension A: 2'6"
Dimension B: 5' |
| Horizontal Reach |
19 ft. 11 in. (6.07 m) |
| Clearance Height |
Up and Over: 17 ft. (5.18 m) |
| Tail Swing Radius |
2" |
| Swing |
355 Degrees |
| Swing Type |
Non-Continuous |
- Diesel-like performance - 4 independent electric-drive motors and a Tier 4 Final diesel-powered generator provide exceptional terrainability on par with its diesel counterpart
- Hybrid technology - Runs completely on 8 x 12V 100 Ah AGM batteries, which are charged by the diesel generator
- Versatility - The power of a diesel machine combined with hybrid efficiency allows you to work both inside and outside
- Low emissions - Experience reduced fuel use, emissions, noise and maintenance
- ½” Air Line to Platform
- Ambient White Noise Alarm
- Cold Weather Package (includes Battery Blanket, Hydraulic Tank Heater, Engine Block Heater Pad)
- Hostile Environment Kit (Includes Console Cover, Boom Wipers and Cylinder Bellows)
- Hot Weather Package
- Inverter – 110V 1200W
- Light Package (Includes Platform Lights, Head and Tail Lights)
- Platforms
- Drop Bar, 30” x 36”, 30” x 48”, 30” x 60”
- Inward Self-Closing Swing Gate, 30” x 48”, 30” x 60”
- Platform Mesh to Mid or Top Rail (Requires Self-Closing Gate; Not Compatible with Platform Rail Extensions)
- Storage Tray – Center or Corner
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
