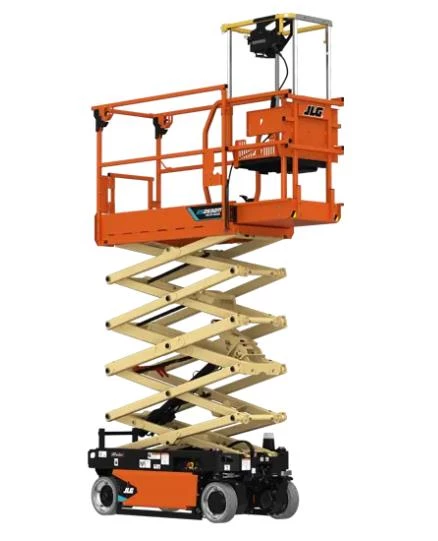

Kirby-Smith Machinery has new JLG ES2632M Micro-Sized Scissor Lift Series for Sale JLG® scissor lifts deliver long-lasting performance for a more productive day. With over 400,000+ scissor lifts sold, the next model is waiting for you. The Micro-Sized Series delivers peak performance in a compact footprint with an industry-exclusive zero turning radius to work in tight spaces. The standard leak containment system makes them ideal for indoor work on sensitive flooring, such as data centers and museums. Also rated for outdoor applications, these models are a perfect choice for maximized flexibility around the job site. Optional accessories – including an Integrated Mid-Rail Deck available on select models - enhance versatility and productivity. The ES2632M Micro-sized Scissor delivers compact design and peak maneuverability in congested work environments where access and efficiency are prioritized. The 25-ft 6-in (indoor) platform height and compact design with zero turn radius, progressive elevated drive and leak containment standard delivers versatility along with QuikFold Rails that fold down in seconds to traverse around the job site for efficiency.
|
| Dimensions | |
|---|---|
| Length | 71.8” |
| Width | 32” |
| Height | 29.1” |
| Weight | 4,611 lbs. |
| Wheelbase | 53” |
| Ground Clearance | 2.8” |
| Inside Turning Radius | Zero |
| Deck Height | 19.5” (integrated mid-rail) |
| Outside Turning Radius | 66” |
| Platform Capacity | 600 lbs. 265 Lbs. on platform extension |
| Drive Height | Fully Elevated |
| Platform Width | 29.1” |
| Platform Extension | 33.7” |
| Platform Rail Height | 43.3” |
| Deck Platform | 22” x 23” (integrated mid-rail) 23.7” (integrated mid-rail extension) |
| Engine/Drivetrain | |
|---|---|
| Drive | 24V DC |
| Drive Speed | 3 mph (lowered) 0.5 mph (elevated range) |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 1.3 Gallons |
| Hydraulic Pump | Fixed Displacement Gear |
| Operational | |
|---|---|
| Brakes | Electric, Friction |
| Ground Bearing Pressure | 192 PSI |
| Tilt Rating | Side-to-Side: 1.5° Fore and Aft: 3° |
| Number of Occupants | Indoor: 2 (when optional integrated mid-rail deck is in use, only one occupant) Outdoor: 1 |
| Battery | |
|---|---|
| Battery | 4 x 6V 220 Amp |
| Charger | 650W Delta Q |
| Performance | |
|---|---|
| Tires | 12.7 in/323 x 100-mm, Non-Marking |
| Gradeability | 24% |
| Platform Height | 25’6” (indoor) 18’ (outdoor) |
| Raise/Lower Time | 25/35 seconds (no load) 26/34 Seconds (rated load) |
| Platform Length | 33.7” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | JLG |
| MODEL | ES2632M |
