Why rent when you can own?
Call us to see if ownership makes economical sense for you and your organization.
When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

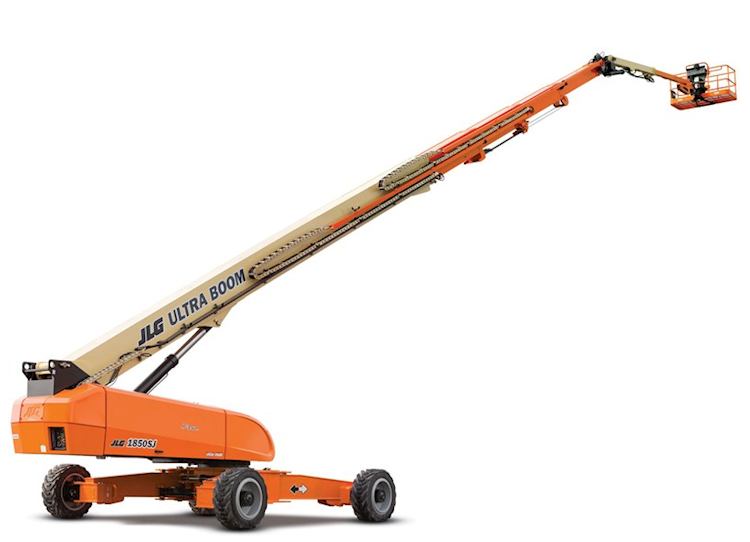

Dominate the job site with the JLG® Ultra Series. The ultra-strong 100,000 psi steel of the boom gives you the confidence and support you need to handle 1,000 pounds capacity. And the exclusive controlled arc regulates speeds at the edges of the work envelope so that you feel the same velocity in all positions for enhanced comfort.
|Length||63 ft. 10 in. (19.44 m)|
|Width||8 ft. 2 in. (2.49 m)|
|Height||10 ft. (3.05 m)|
|Weight||60,300 lbs. (27,351.62 kg)|
|Ground Clearance||1 ft. 4 in. (0.41 m)|
|Turning Radius||Axles Retracted: 31 ft. 3 in. (9.53 m)
Axles Extended: 21 ft. 8 in. (6.6 m)
|Engine Type||Deutz TD3.6L 99.8 hp diesel|
|Fuel Tank Capacity||53 gal. (199.9 l)|
|Hydraulic Tank Capacity||75 gal. (284.28 l)|
|Max Travel Speed||3 mph (4.83 km/h)|
|Capacity||Restricted: 1,000 lbs. (453.59 kg)
Unrestricted: 500 lbs. (226.8 kg)
|Rotation||Vertical Jib: 120°|
|Platform Height||185 ft. 7 in. (56.57 m)|
|Platform Size||3 x 8 ft. (0.91 x 2.44 m)|
|Horizontal Reach||80 ft. (24.38 m)|
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
