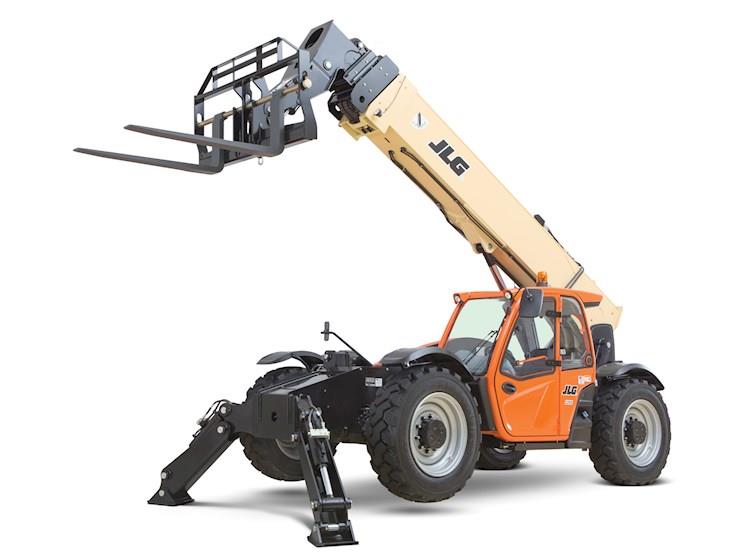

Comfort. Confidence. Serviceability. We wouldn't expect you to settle for anything less with JLG® telehandlers. The best-in-class cabs feature enhanced visibility, while a wide range of attachments allows for more versatility on the job site. Tier 4 Final engines are fuel-efficient with less environmental impact. And engine parts and other serviceable components are more easily accessible, so you can spend more time on the job and less time on routine maintenance.
|Frame Leveling||10 Degrees|
|Engine Model||QSF 3.8L Tier 4 Final|
|Max Travel Speed||20 mph (4-Speed)|
|Fuel Tank Capacity||38 gallons|
-Hydraulic power steering with manual backup.
-Operator selectable 4-wheel circle, 4-wheel crab, 2-wheel front.
|Rated RPM||1500 rpm|
|Maximum Lower Speed||13 seconds|
|Maximum Telescope Speed||In: 15 seconds
Out: 18 seconds
|Rated Capacity||12,000 lbs.|
|Transmission Type||Powershift 4-speed forward and 3-speed reverse.|
|Transmission||Nr Forward Gears Standard-4
Nr Reverse Gears-3
|Front Axle||Trunnion mounted planetary 45° steer axles. Integral steer cylinder. High bias limited slip differential on front axle.|
|Rear Axle||Planetary; Trunnion mounted planetary 45° steer axles. Integral steer cylinder.|
|Displacement||231.9 cu. in.|
|Pump||Load Sensing Dual Gear|
|Hydraulic Tank Capacity||49.9 gallons|
|Hydraulics||Load sense piston pump. Auxiliary hydraulics used for all attachments equipped with cylinders or other hydraulic components.|
|Brakes||Brakes: Service brakes are inboard wet disc brake on front and rear axles. Parking brakes are wet disc spring-applied hydraulic release on front axle.|
|Tires||Standard: 400/75-28, Optional: Foam-Filled or Solid|
|Max Lift Height||55’|
|Lift Capacity||Max: 12,000 lbs.
Full Height: 5000 lbs.
Max Reach: 3500 lbs.
|Lift Speed||Max: 16 seconds
Boom retracted: Up-16 seconds, Down-13 seconds
|Max. Load @ Max. Reach||3,500 lbs.|
|Max. Load @ Full Height||5,000 lbs.|
|Drawbar Pull||25,400 lbs.|
|Outriggers Up Max||Lift Height: 55’
Forward Reach: 42’
|Boom Speed||Extended: 18 seconds
Retracted: 15 seconds
