Hamm HD+ 90i VO-S

Hamm HD+ 90i VO-S

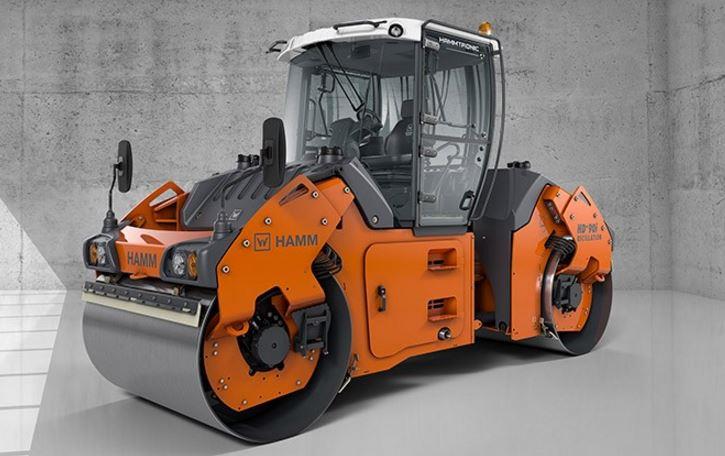

New Hamm HD+ 90i VO-S Compactor for Sale

Articulated tandem roller with vibratory and oscillating drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 189 in. (4,800 mm)
Width 70.9 in. (1,800 mm)
Height 117.3 in. (2,980 mm)
Weight 20,859.3lbs
Wheelbase 141.7 in. (3,600 mm)
Inside Turning Radius 232.3 in. (5,900 mm)
Steering Angle +/-30°
Drum Front: Smooth/Split
Rear: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 3.6 L4
Engine Type 4-cylinder
Horsepower 113.9 hp (85 kW) @ 2,300 rpm
Fuel Tank Capacity 45.7 gal. (173 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 66.14 in. (1,680 mm)
Drum Diameter 47.2 in. (1,200 mm)
Nominal Amplitude Front I / II: 0.024 / 0.016 in. (0.61 / 0.40 mm)
Vibration Frequency Front I / II: 2,520 / 3,300 vpm (42 / 55 Hz)
Centrigual Force Range Front I / II: 18,900 / 21,150 lbs. (84 / 94 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 220 gal. (834 l)
Application Asphalt
Static Linear Drum Load 162.7 lbs./in. (29.0 kg/cm) front
150.2 lbs./in. (26.8 kg/cm) rear
Weights
Operating Weight 20,682 lbs. (9,381 kg) with ROPS
Axle Load 10,755 lbs. (4,878 kg) front
9,927 lbs. (4,503 kg) rear
  • Description: Tandem roller with vibrating roller drum and oscillation drum
  • Exhaust emissions Category: EU Stage IV/EPA Tier 4
  • Total Length: 192.9”
  • Width: 70.9”
  • Total Height: 117.3”
  • Drum Width: 66.1” (front and rear)
  • Height, loading, min: 84.6”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Track offset, hydraulic
  • Spray system with spray bars front and rear
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating
  • Coming home lighting
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Edge pressing and cutting equipment
  • Protective roof
  • HCQ navigator
  • Steering column with comfort exit and tiltable dashboard
  • Multifunction armrest, right, foldable

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD+ 90i VO-S

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD+ 90i VO-S

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD+ 90i VO-S Compactor for Sale

Articulated tandem roller with vibratory and oscillating drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD+ 90i VO-S
Condition
NEW
Dimensions
Length
189 in. (4,800 mm)
Width
70.9 in. (1,800 mm)
Height
117.3 in. (2,980 mm)
Weight
20,859.3lbs
Wheelbase
141.7 in. (3,600 mm)
Inside Turning Radius
232.3 in. (5,900 mm)
Steering Angle
+/-30°
Drum
Front: Smooth/Split Rear: Smooth/Non-Split
Engine
Engine Make
Deutz
Engine Model
TCD 3.6 L4
Engine Type
4-cylinder
Horsepower
113.9 hp (85 kW) @ 2,300 rpm
Fuel Tank Capacity
45.7 gal. (173 l)
Drivetrain
Drive
Hydrostatic
Operational
Drum Width
66.14 in. (1,680 mm)
Drum Diameter
47.2 in. (1,200 mm)
Nominal Amplitude
Front I / II: 0.024 / 0.016 in. (0.61 / 0.40 mm)
Vibration Frequency
Front I / II: 2,520 / 3,300 vpm (42 / 55 Hz)
Centrigual Force Range
Front I / II: 18,900 / 21,150 lbs. (84 / 94 kN)
Travel Speed - Forward
0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity
220 gal. (834 l)
Application
Asphalt
Static Linear Drum Load
162.7 lbs./in. (29.0 kg/cm) front 150.2 lbs./in. (26.8 kg/cm) rear
Weights
Operating Weight
20,682 lbs. (9,381 kg) with ROPS
Axle Load
10,755 lbs. (4,878 kg) front 9,927 lbs. (4,503 kg) rear
