Hamm HD+ 90i PH VV-S

Hamm HD+ 90i PH VV-S

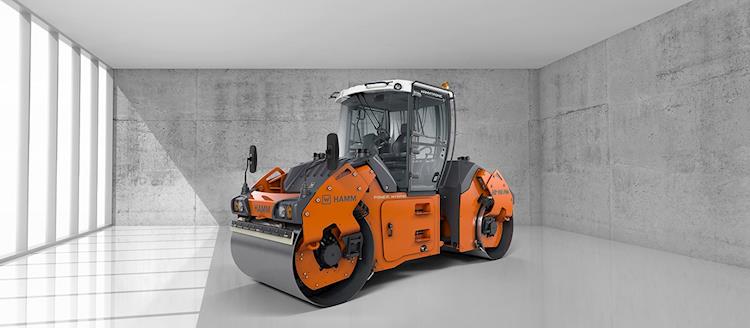

New Hamm HD+ 90i PH VV-S Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Hydrostatic all-wheel drive for excellent hill climbing ability
  • Crab steering to increase working width
Dimensions
Length 189”
Width 70.9”
Height 117.3”
Weight Max: 26,989 lbs.
W/Cab: 21,388 lbs.
W/ROPS: 21,014 lbs.
Wheelbase 141.7”
Ground Clearance 31.5”
Turning Radius 232.3”
Drum Smooth
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Cylinders 4
Horsepower 74.2 HP
Fuel Tank Capacity 45.7 Gallons
Emission Standards EU Stage IIIB/EPA Tier 4
Rated Power 2300 RPM
Drivetrain
Steering Articulated steering
Speeds Working gear: 0.0-3.7 mph
Transportation gear: 0.0-7.5 mph
Drive Regulation Hammtronic
Operational
Drum Width 66.1”
Drum Diameter 47.2”
Drum Shell Thickness 0.7”
Nominal Amplitude Amplitude, front/rear, I/II: 0.24”/0.16”
Vibration Frequency Vibration frequency, front/rear, I/II: 2,520 vpm/3,000 vpm
Centrigual Force Range Centrifugal force, front/rear, I/II: 18,900 lbs./17,550 lbs.
Water Tank Capacity 220.3 gallons
Static Linear Drum Load 159.6 lbs/in
Oscillation Angle 10
Sprinkler System Pressure
Drum Type smooth/divided
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 189”
  • Width: 70.9”
  • Total Height: 117.3”
  • Drum Width: 66.1” (front and rear)
  • Height, loading, min: 84.6”
  • 12 V outlet
  • Additional hydraulic performance support up to 20 kW
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Electrically powered cooling fan
  • Operating concept Easy Drive
  • Dashboard with displays, indicator lights and function key
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating and air conditioning
  • Working light
  • Telematics interface
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Compaction meter HCQ
  • Edge pressing and cutting equipment
  • Dashboard cover, lockable
  • HCQ navigator
  • Tachograph

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD+ 90i PH VV-S

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD+ 90i PH VV-S

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD+ 90i PH VV-S Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Hydrostatic all-wheel drive for excellent hill climbing ability
  • Crab steering to increase working width
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD+ 90i PH VV-S
Condition
NEW
Dimensions
Length
189”
Width
70.9”
Height
117.3”
Weight
Max: 26,989 lbs. W/Cab: 21,388 lbs. W/ROPS: 21,014 lbs.
Wheelbase
141.7”
Ground Clearance
31.5”
Turning Radius
232.3”
Drum
Smooth
Engine
Engine Make
Deutz
Engine Model
TCD 2.9 L4
Cylinders
4
Horsepower
74.2 HP
Fuel Tank Capacity
45.7 Gallons
Emission Standards
EU Stage IIIB/EPA Tier 4
Rated Power
2300 RPM
Drivetrain
Steering
Articulated steering
Speeds
Working gear: 0.0-3.7 mph Transportation gear: 0.0-7.5 mph
Drive Regulation
Hammtronic
Operational
Drum Width
66.1”
Drum Diameter
47.2”
Drum Shell Thickness
0.7”
Nominal Amplitude
Amplitude, front/rear, I/II: 0.24”/0.16”
Vibration Frequency
Vibration frequency, front/rear, I/II: 2,520 vpm/3,000 vpm
Centrigual Force Range
Centrifugal force, front/rear, I/II: 18,900 lbs./17,550 lbs.
Water Tank Capacity
220.3 gallons
Static Linear Drum Load
159.6 lbs/in
Oscillation Angle
10
Sprinkler System
Pressure
Drum Type
smooth/divided
