Hamm HD+ 80i VT-S

Hamm HD+ 80i VT-S

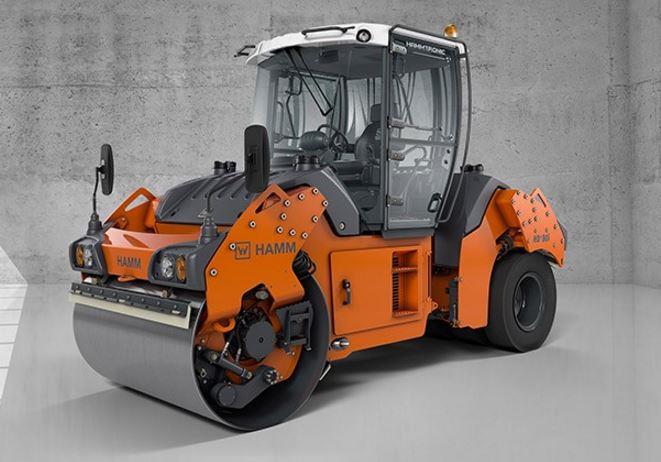

Articulated combi roller with vibratory drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 176.4 in. (4,480 mm)
Width 70.9 in. (1,800 mm)
Height 113.8 (2,890 mm)
Weight 16,625.7lbs
Wheelbase 131.5 in. (3,340 mm)
Inside Turning Radius 163 in. (4,140 mm)
Steering Angle +/-37°
Drum Front: Smooth/Split
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Engine Type 4-cylinder
Horsepower 74.2 hp (55.4 kW) @ 2,500 rpm
Fuel Tank Capacity 31.7 gal. (120 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 66.14 in. (1,680 mm)
Drum Diameter 45 in. (1,140 mm)
Nominal Amplitude Front I / II: 0.020 / 0.014 in. (0.52 / 0.36 mm)
Vibration Frequency Front I / II: 2,520 / 3,000 vpm (42 / 50 Hz)
Centrigual Force Range Front I / II: 14,175 lbs. (63 kN)
Travel Speed - Forward 0 - 5.9 mph (0 - 9.5 km/h)
Water Tank Capacity 185 gal. (700 l)
Application Asphalt
Static Linear Drum Load 136.1 lbs./in. (24.3 kg/cm) front
Weights
Operating Weight 16,248 lbs. (7,370 kg) with ROPS
Axle Load 9,017 lbs. (4,090 kg) front
7,605 lbs. (3,450 kg) rear
  •   Diesel engine with high power and low sound level
  •   Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  •   Ergonomic driver seat for perfect all-around visibility
  •   Driver seat including steering wheel and instrument panel can be rotated and moved
  •   Clear view of drum surface, its outer edge and working environment
  •   Crab steering to increase working width
  •   Hydrostatic all-wheel drive for excellent hill climbing ability

Equipment

  •   Access handles
  •   Battery main switch
  •   Spring-mounted driver seat
  •   Speedometer
  •   Indicator lights and emergency stop
  •   Multifunction drive lever to right of seat
  •   Comfort seat can be swiveled and moved
  •   Water level indicator
  •  All headlights also available in Xenon
  •   Exterior and interior mirrors
  •   Back-up alarm
  •   Drum lighting
  •   Driver seat
  •   Back extension
  •   Tachograph
  •   HCQ asphalt temperature meter
  •   Heat / air conditioning with dehumidification
  •   Crab steering to increase working width
  •   Interior lighting
  •   Cab, 4 headlights
  •   Edge pressing and cutting equipment
  •   Radio
  •   ROPS panoramic cab
  •   Rotating beacon
  •   Sound insulation
  •   Safety belt
  •   Sun roof
  •   Dust-free ventilation
  •   Fabric seat
  •   Second multifunction drive levers

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD+ 80i VT-S

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD+ 80i VT-S

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Articulated combi roller with vibratory drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD+ 80i VT-S
Condition
NEW
Dimensions
Length
176.4 in. (4,480 mm)
Width
70.9 in. (1,800 mm)
Height
113.8 (2,890 mm)
Weight
16,625.7lbs
Wheelbase
131.5 in. (3,340 mm)
Inside Turning Radius
163 in. (4,140 mm)
Steering Angle
+/-37°
Drum
Front: Smooth/Split
Engine
Engine Make
Deutz
Engine Model
TCD 2.9 L4
Engine Type
4-cylinder
Horsepower
74.2 hp (55.4 kW) @ 2,500 rpm
Fuel Tank Capacity
31.7 gal. (120 l)
Drivetrain
Drive
Hydrostatic
Operational
Drum Width
66.14 in. (1,680 mm)
Drum Diameter
45 in. (1,140 mm)
Nominal Amplitude
Front I / II: 0.020 / 0.014 in. (0.52 / 0.36 mm)
Vibration Frequency
Front I / II: 2,520 / 3,000 vpm (42 / 50 Hz)
Centrigual Force Range
Front I / II: 14,175 lbs. (63 kN)
Travel Speed - Forward
0 - 5.9 mph (0 - 9.5 km/h)
Water Tank Capacity
185 gal. (700 l)
Application
Asphalt
Static Linear Drum Load
136.1 lbs./in. (24.3 kg/cm) front
Weights
Operating Weight
16,248 lbs. (7,370 kg) with ROPS
Axle Load
9,017 lbs. (4,090 kg) front 7,605 lbs. (3,450 kg) rear
