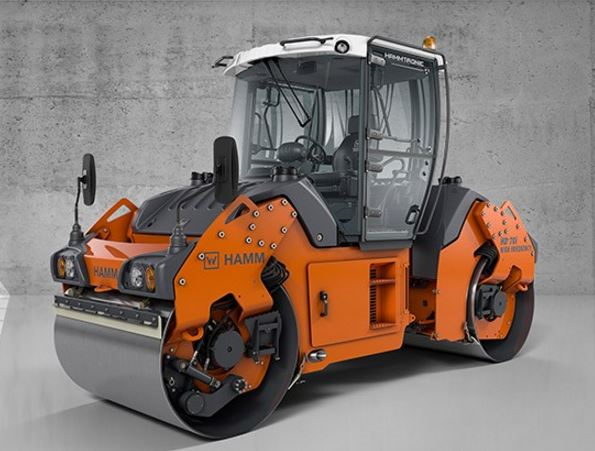

New Hamm HD+ 70i VV-HF Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 176.38 in
Width 63.78 in
Height 113.78 in
Weight 15,831.9 lbs (ROPS)
21,609 lbs (max)
Wheelbase 131.5 in
Ground Clearance Left/Right-29.53 in
Center-13.39 in
Inside Turning Radius 166.54 in
Steering Angle 37°
Drum Smooth/Nondivided
Lateral Overhang 2.36 in
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Cylinders 4
Horsepower 74.2 HP
Fuel Tank Capacity 31.7 gal
Drivetrain
Steering Type-Articulated steering
Actuation-Hydrostatic, steering wheel
Speeds Working Gear: 0-3.73 mph
Transportation Gear: 0-7.46 mph
Hydrostatic Drive Front/Rear-Wheel Motor
Climbing ability Vibration On-35%
Vibration Off-40%
Drive Regulation Hammtronic
Operational
Drum Width 64.37 in
Drum Diameter 44.88 in
Drum Shell Thickness 0.67 in
Nominal Amplitude Front/Rear I-0.02 in
Front/Rear II-0.01 in
Vibration Frequency Front/Rear I-2700 vpm
Front/Rear II-4020 vpm
Centrigual Force Range Front/Rear I-16,650 lbs
Front/Rear II-20,700 lbs
Water Tank Capacity 184.92 gal
Static Linear Drum Load 139.99/134.39 lbs/in
Oscillation Angle 10°
Sprinkler System Type-Pressure
Actuation-Interval/Manual
Weights
Operating Weight 16,206.75 lbs
Axle Load Front-8,257.72 lbs
Rear-7,949.02 lbs
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: Eu Stage IIIB/EPA Tier 4
  • Total Length: 176.4”
  • Width: 63.8”
  • Total Height: 113.8”
  • Drum Width: 59.1” (front and rear)
  • Height, loading, min: 81.9”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-insulated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Tiltable dashboard
  • Dashboard with displays, indicator lights and switches
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Edge pressing and cutting equipment
  • Protective roof
  • Additional drive lever, left
  • Steering column with comfort exit and tiltable dashboard
