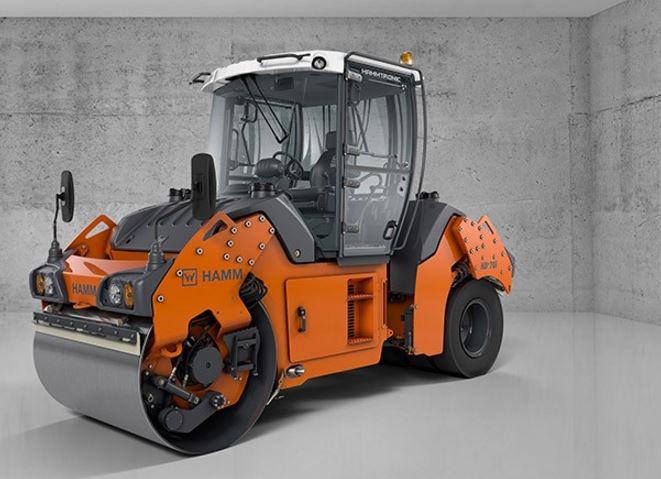

Hamm HD+ 70i VT

Hamm HD+ 70i VT

Articulated combi roller with vibratory drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 176.4 in. (4,480 mm)
Width 63.8 in. (1,620 mm)
Height 113.8 (2,890 mm)
Weight 15,512.17lbs
Wheelbase 131.5 in. (3,340 mm)
Inside Turning Radius 166.5 in. (4,230 mm)
Steering Angle +/-37°
Drum Front: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4
Engine Type 4-cylinder
Horsepower 74.2 hp (55.4 kW) @ 2,500 rpm
Fuel Tank Capacity 31.7 gal. (120 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 59 in. (1,500 mm)
Drum Diameter 44.88 in. (1,140 mm)
Nominal Amplitude Front I / II: 0.025 / 0.014 in. (0.63 / 0.35 mm)
Vibration Frequency Front I / II: 2,880 / 3,480 vpm (48 / 58 Hz)
Centrigual Force Range Front I / II: 17,325 / 14,175 lbs. (77 / 63 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 185 gal. (700 l)
Application Asphalt
Static Linear Drum Load 138.6 lbs./in. (24.7 kg/cm) front
Weights
Operating Weight 15,335 lbs. (6,956 kg) with ROPS
Axle Load 8,175 lbs. (3,708 kg) front
7,160 lbs. (3,248 kg) rear
  • Description: Tandem roller with vibrating roller drum and set of tires
  • Exhaust emissions Category: EU Stage IIIB/EPA Tier 4
  • Total Length: 176.4”
  • Width: 63.8”
  • Total Height: 113.8”
  • Drum Width: 59.1”
  • Height, loading, min: 81.9”
  • 12 V outlet
  • 2 large working and rear view mirrors
  • Foldable scraper
  • Dashboard with displays, indicator lights and switches
  • Tiltable dashboard
  • Pressure water sprinkling with interval switch
  • ECO mode
  • Operator’s platform with entry from both sides
  • Speed-controlled water sprinkling system
  • Speed preselect
  • Vibration-insulated operator’s platform
  • Track offset, hydraulic
  • Spray system with spray bars front and rear
  • Water filtering (triple)
  • Water tank front and rear, can be filled from both sides
  • Central water drain
  • Heating
  • Steering column with comfort exit and tiltable dashboard
  • Additional drive lever, left
  • Protective roof
  • Edge pressing and cutting equipment
  • Automatic engine-off function
  • HAMM Temperature Meter (HTM)
  • Track offset display
  • Back-up alarm
  • Working light
  • Rotating beacon

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD+ 70i VT

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD+ 70i VT

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Articulated combi roller with vibratory drum

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD+ 70i VT
Condition
NEW
Dimensions
Length
176.4 in. (4,480 mm)
Width
63.8 in. (1,620 mm)
Height
113.8 (2,890 mm)
Weight
15,512.17lbs
Wheelbase
131.5 in. (3,340 mm)
Inside Turning Radius
166.5 in. (4,230 mm)
Steering Angle
+/-37°
Drum
Front: Smooth/Non-Split
Engine
Engine Make
Deutz
Engine Model
TCD 2.9 L4
Engine Type
4-cylinder
Horsepower
74.2 hp (55.4 kW) @ 2,500 rpm
Fuel Tank Capacity
31.7 gal. (120 l)
Drivetrain
Drive
Hydrostatic
Operational
Drum Width
59 in. (1,500 mm)
Drum Diameter
44.88 in. (1,140 mm)
Nominal Amplitude
Front I / II: 0.025 / 0.014 in. (0.63 / 0.35 mm)
Vibration Frequency
Front I / II: 2,880 / 3,480 vpm (48 / 58 Hz)
Centrigual Force Range
Front I / II: 17,325 / 14,175 lbs. (77 / 63 kN)
Travel Speed - Forward
0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity
185 gal. (700 l)
Application
Asphalt
Static Linear Drum Load
138.6 lbs./in. (24.7 kg/cm) front
Weights
Operating Weight
15,335 lbs. (6,956 kg) with ROPS
Axle Load
8,175 lbs. (3,708 kg) front 7,160 lbs. (3,248 kg) rear
