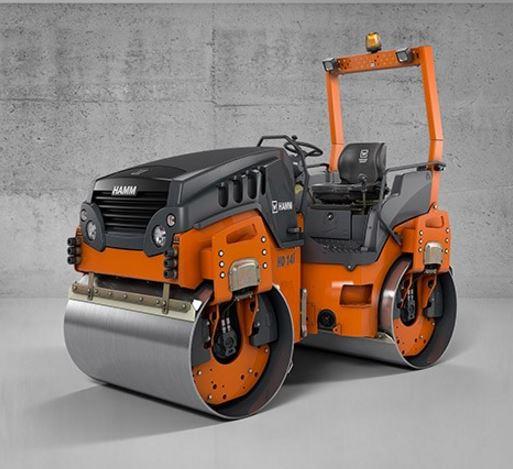

Hamm HD 14i VV

Hamm HD 14i VV

New Hamm HD 14i VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Good visibility — optimum view of drum's outer edges
Dimensions
Length 114”
Width Total: 59.3”
Max. Working: 56.3”
Height w/cab: 107.1”
w/ROPS: 102.0”
Loading, min.: 71.7”
Wheelbase 76.8”
Ground Clearance Left/Right: 28.3”
Inside Turning Radius 104.33"
Drum Front/Rear: smooth/nondivided
Engine
Engine Make Kubota
Engine Model V2403-CR
Cylinders 4
Horsepower 50.1 HP
Fuel Tank Capacity 19.3 Gallons
Emission Standards EU Stage V/EPA Tier 4
Drivetrain
Steering Articulated Steering
Speeds 0-6.84 mph
Climbing ability Vibration on/off: 30/40
Operational
Drum Width 54.33"
Drum Diameter Front/Rear: 35.43"
Drum Shell Thickness Front/Rear: 0.67"
Nominal Amplitude Front/Rear I/II: 0.02"/0.01"
Vibration Frequency Front/Rear I/II: 3600/3060 vpm
Centrigual Force Range Front/Rear I/II: 14,400 lbs/8,775 lbs
Water Tank Capacity 68.7 Gallons
Static Linear Drum Load Front/Rear: 91.28/88.48 lbs/in
Oscillation Angle +/-: 8°
Sprinkler System Water Sprinkler: Pressure
Track Offset Left: 0.0”
Right: 2.0”
Weights
Operating Weight w/ROPS: 9,779 lbs.
Max: 12,414 lbs.
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 116.7”
  • Width: 59.3”
  • Total Height: 102”
  • Drum Width: 54.3” (front and rear)
  • Height, loading, min: 71.7”
  • 12 V outlet
  • CompactLine front suspension eyelet
  • Central water drain
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • V-belt protection
  • Left and right drive lever
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Drum edge lighting
  • Tool kit
  • Additional mirror
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working light
  • Telematics system, interface
  • Back-up alarm
  • HAMM Temperature Meter (HTM)
  • Compaction meter HCQ
  • Chip spreader
  • Edge pressing and cutting equipment
  • Protective roof
  • Radio
  • Safety belt monitoring device
  • ROPS cabin with heating
