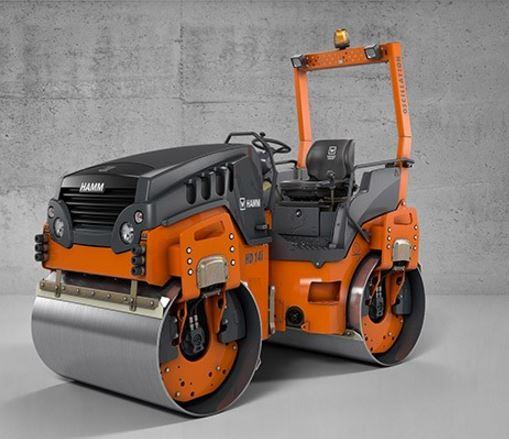

Hamm HD 14i VO

Hamm HD 14i VO

Articulated tandem roller with vibratory and oscillating drum

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Good visibility — optimum view of drum's outer edges
Dimensions
Length 112.6"
Width 59.29"
Height 101.97"
Weight 101.97"
Wheelbase 76.77"
Ground Clearance Left/Right: 28.35"
Inside Turning Radius 104.33"
Drum Front/Rear: Smooth/Nondivided
Engine
Engine Make Kubota
Engine Type V2403-CR
Cylinders 4
Horsepower 49.3 HP
Fuel Tank Capacity 19.28 Gal
Drivetrain
Steering Articulated Steering
Speeds 0-6.84 mph
Climbing ability Vibration On/Off: 30/40
Operational
Drum Width 54.33"
Drum Diameter 35.43"
Drum Shell Thickness 0.67"
Vibration Frequency Front, I/II: 3600/3060 vpm
Centrigual Force Range Front, I/II: 14,400 lbs/8,775 lbs
Water Tank Capacity 75.29 Gal
Static Linear Drum Load Front/Rear: 91.28/92.4 lbs/in
Oscillation Angle Force, Rear, I/II: 16,200 lbs/9,675 lbs
Frequency, Rear, I/II: 2,340/1,800 vpm
Tangential amplitude, Rear, I/II: 0.05"
Weights
Operating Weight 12,634.65 lbs
  • Description: Tandem roller with vibrating roller drum and oscillation drum
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 116.7”
  • Width: 59.3”
  • Total Height: 102”
  • Drum Width: 54.3” (front and rear)
  • Height, loading, min: 71.7”
  • 12 V outlet
  • CompactLine front suspension eyelet
  • Central water drain
  • Water filtering (triple)
  • Automatic vibration system
  • Track offset, mechanical
  • Mechanical battery isolation switch
  • V-belt protection
  • Left and right drive lever
  • Operator’s platform with entry from both sides
  • Pressure water sprinkling with interval switch
  • Dashboard cover, lockable and weather-resistant
  • Dashboard with displays, indicator lights and switches
  • 3-point articulation
  • Plastic scraper, foldable
  • Drum edge lighting
  • Tool kit
  • Additional mirror
  • Bonnet with sound insulation
  • Battery isolating switch
  • Rotating beacon
  • Working light
  • Telematics system, interface
  • Back-up alarm
  • HAMM Temperature Meter (HTM)
  • Compaction meter HCQ
  • Chip spreader
  • Edge pressing and cutting equipment
  • Protective roof
  • Radio
  • Safety belt monitoring device
  • ROPS cabin with heating

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 14i VO

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 14i VO

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Articulated tandem roller with vibratory and oscillating drum

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Good visibility — optimum view of drum's outer edges
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 14i VO
Condition
NEW
Dimensions
Length
112.6"
Width
59.29"
Height
101.97"
Weight
101.97"
Wheelbase
76.77"
Ground Clearance
Left/Right: 28.35"
Inside Turning Radius
104.33"
Drum
Front/Rear: Smooth/Nondivided
Engine
Engine Make
Kubota
Engine Type
V2403-CR
Cylinders
4
Horsepower
49.3 HP
Fuel Tank Capacity
19.28 Gal
Drivetrain
Steering
Articulated Steering
Speeds
0-6.84 mph
Climbing ability
Vibration On/Off: 30/40
Operational
Drum Width
54.33"
Drum Diameter
35.43"
Drum Shell Thickness
0.67"
Vibration Frequency
Front, I/II: 3600/3060 vpm
Centrigual Force Range
Front, I/II: 14,400 lbs/8,775 lbs
Water Tank Capacity
75.29 Gal
Static Linear Drum Load
Front/Rear: 91.28/92.4 lbs/in
Oscillation Angle
Force, Rear, I/II: 16,200 lbs/9,675 lbs Frequency, Rear, I/II: 2,340/1,800 vpm Tangential amplitude, Rear, I/II: 0.05"
Weights
Operating Weight
12,634.65 lbs
