Hamm HD+ 140i VV-HF

Hamm HD+ 140i VV-HF

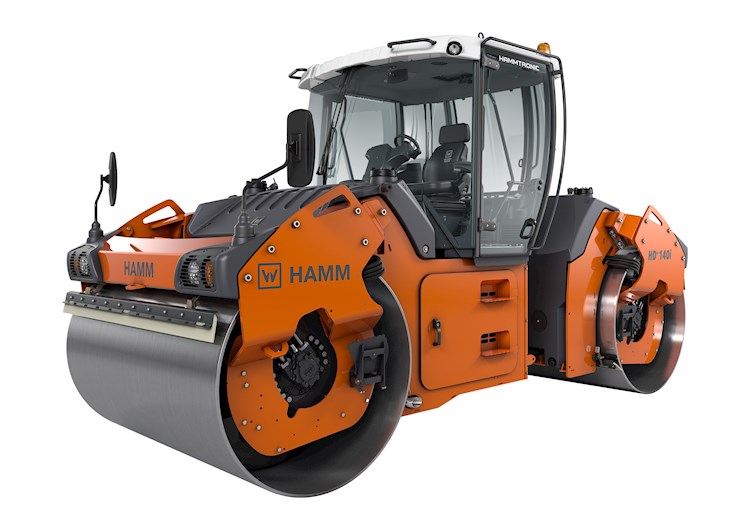

New Hamm HD+ 140i VV-HF Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 204.72 in
Width 88.98 in
Height 117.32 in
Weight 27,639.67 lbs (ROPS)
30,186.45 (max)
Wheelbase 149.61 in
Ground Clearance Left/Right-35.43 in
Center-13.39 in
Inside Turning Radius 235.43 in
Steering Angle 30°
Drum Smooth/nondivided
Lateral Overhang 2.36 in
Engine
Engine Make Deutz
Engine Model TCD 4.1 L4
Cylinders 4
Horsepower 154.1 HP
Fuel Tank Capacity 68.68 gal
Drivetrain
Steering Type-Articulated steering
Actuation-Hydrostatic, steering wheel
Speeds Working Gear: 0-3.73 mph
Transportation Gear: 0-7.46 mph
Hydrostatic Drive Wheel motor
Climbing ability Vibration On: 35%
Vibration Off: 40%
Drive Regulation Hammtronic
Operational
Drum Width 84.25 in
Drum Diameter 55.12 in
Drum Shell Thickness 0.75 in
Nominal Amplitude Front/Rear I-0.03 in
Front/Rear II-0.01 in
Vibration Frequency Front/Rear I-2,580 vpm
Front/Rear II-4,020 vpm
Centrigual Force Range Front/Rear I-40,500 lbs
Front/Rear II-33,750 lbs
Water Tank Capacity 302.48 gal
Static Linear Drum Load Front-167.99 lbs/in
Rear-166.31 lbs/in
Oscillation Angle 10°
Sprinkler System Type-Pressure
Actuation-interval/manual
Weights
Operating Weight 28,168.87 lbs
Axle Load Front-14,134.05 lbs
Rear-14,034.82 lbs
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 208.7”
  • Width: 89”
  • Total Height: 117.3”
  • Drum Width: 84.3” (front and rear)
  • Height, loading, min: 84.3”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Working light
  • Cutting disc
  • Compaction meter HCQ
  • Rotating beacon
  • Radio
  • Automatic engine-off function
  • Heating and air conditioning
  • Edge pressing and cutting equipment
  • Track offset display
  • HCQ navigator
  • Fire extinguisher
  • Tachograph
  • Coming home lighting
  • Tool kit
  • Back-up alarm
  • Drum edge lighting
  • ROPS cabin with non-split doors
  • Dashboard cover
  • HAMM Temperature Meter (HTM)
  • Locking device

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD+ 140i VV-HF

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD+ 140i VV-HF

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD+ 140i VV-HF Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD+ 140i VV-HF
Condition
NEW
Dimensions
Length
204.72 in
Width
88.98 in
Height
117.32 in
Weight
27,639.67 lbs (ROPS) 30,186.45 (max)
Wheelbase
149.61 in
Ground Clearance
Left/Right-35.43 in Center-13.39 in
Inside Turning Radius
235.43 in
Steering Angle
30°
Drum
Smooth/nondivided
Lateral Overhang
2.36 in
Engine
Engine Make
Deutz
Engine Model
TCD 4.1 L4
Cylinders
4
Horsepower
154.1 HP
Fuel Tank Capacity
68.68 gal
Drivetrain
Steering
Type-Articulated steering Actuation-Hydrostatic, steering wheel
Speeds
Working Gear: 0-3.73 mph Transportation Gear: 0-7.46 mph
Hydrostatic Drive
Wheel motor
Climbing ability
Vibration On: 35% Vibration Off: 40%
Drive Regulation
Hammtronic
Operational
Drum Width
84.25 in
Drum Diameter
55.12 in
Drum Shell Thickness
0.75 in
Nominal Amplitude
Front/Rear I-0.03 in Front/Rear II-0.01 in
Vibration Frequency
Front/Rear I-2,580 vpm Front/Rear II-4,020 vpm
Centrigual Force Range
Front/Rear I-40,500 lbs Front/Rear II-33,750 lbs
Water Tank Capacity
302.48 gal
Static Linear Drum Load
Front-167.99 lbs/in Rear-166.31 lbs/in
Oscillation Angle
10°
Sprinkler System
Type-Pressure Actuation-interval/manual
Weights
Operating Weight
28,168.87 lbs
Axle Load
Front-14,134.05 lbs Rear-14,034.82 lbs
