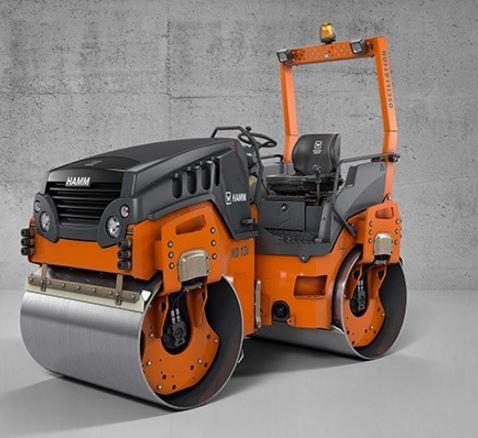

New Hamm HD 13i VO Compactor for Sale
Articulated tandem roller with vibratory and oscillating drum
- 3-point swivel joint for optimum driving comfort
- Ergonomic driver platform
- Low machine height
- Convenient maintenance and service
- Modern instrument panel
- Optimum front view due to concaving front end
- Good visibility — optimum view of drum's outer edges
|
|
| Length |
112.6" |
| Width |
56.14" |
| Height |
101.97" |
| Wheelbase |
76.77" |
| Ground Clearance |
Left/Right: 28.35" |
| Inside Turning Radius |
105.91" |
| Drum |
Front/Rear: Smooth/nondivided |
| Engine Make |
Kubota |
| Engine Type |
V2403-CR |
| Cylinders |
4 |
| Horsepower |
49.3 HP |
| Fuel Tank Capacity |
19.28 gal |
| Steering |
Articulated Steering |
| Climbing ability |
Vibration on/off: 30/40 |
| Drum Width |
51.18" |
| Drum Diameter |
Front/Rear: 35.43" |
| Drum Shell Thickness |
Front/Rear: 0.67" |
| Vibration Frequency |
Front I/II: 3600/3060 vpm |
| Centrigual Force Range |
Front I/II: 14,400 lbs/8,775 lbs |
| Water Tank Capacity |
75.29 gal |
| Static Linear Drum Load |
Front/Rear: 91.28 lbs/in |
| Sprinkler System |
Water Sprinkler-Pressure |
| Operating Weight |
9,338.17 lbs |
- Description: Tandem roller with vibrating roller drum and oscillation drum
- Exhaust emissions Category: EU Stage V/EPA Tier 4
- Total Length: 116.7”
- Width: 56.1”
- Total Height: 102”
- Drum Width: 51.2” (front and rear)
- Height, loading, min: 71.7”
- 12 V outlet
- CompactLine front suspension eyelet
- Central water drain
- Water filtering (triple)
- Automatic vibration system
- Track offset, mechanical
- Mechanical battery isolation switch
- V-belt protection
- Left and right drive lever
- Operator’s platform with entry from both sides
- Pressure water sprinkling with interval switch
- Dashboard cover, lockable and weather-resistant
- Dashboard with displays, indicator lights and switches
- 3-point articulation
- Plastic scraper, foldable
- Drum edge lighting
- Tool kit
- Additional mirror
- Bonnet with sound insulation
- Battery isolating switch
- Rotating beacon
- Working light
- Telematics system, interface
- Back-up alarm
- HAMM Temperature Meter (HTM)
- Compaction meter HCQ
- Chip spreader
- Edge pressing and cutting equipment
- Protective roof
- Radio
- Safety belt monitoring device
- ROPS cabin with heating
