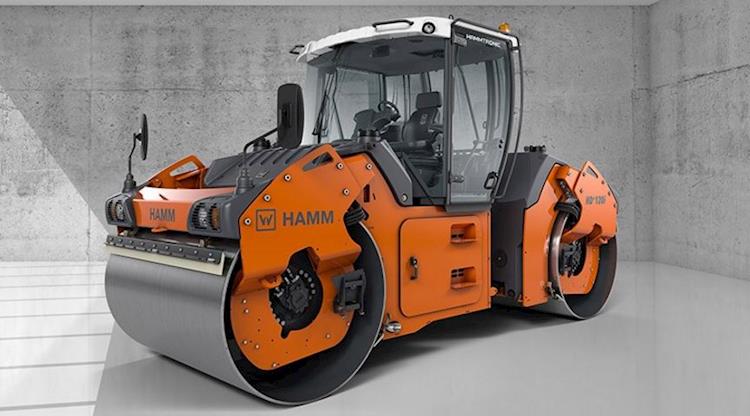

New Hamm HD+ 120i VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 204.7 in. (5,200 mm)
Width 84.5 in. (2,145 mm)
Height 117.3 in. (2,980 mm)
Weight 27,286.87lbs
Wheelbase 149.6 in. (3,800 mm)
Inside Turning Radius 238.6 in. (6,060 mm)
Steering Angle +/-30°
Drum Front & Rear: Smooth/Non-Split
Engine
Engine Make Deutz
Engine Model TCD 4.1 L4
Engine Type 4-cylinder
Horsepower 154.1 hp (115 kW) @ 2,300 rpm
Fuel Tank Capacity 68.7 gal. (260 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 77.95 in. (1,980 mm)
Drum Diameter 55.1 in. (1,400 mm)
Nominal Amplitude Front I / II: 0.035 / 0.019 in. (0.89 / 0.49 mm) Front I / II: 0.03 / 0.02 in. (0.81 / 0.47 mm) Front I / II: 0.03 / 0.02 in. (0.81 / 0.47 mm) Front and Rear I / II: 0.03 / 0.02 in. (0.81 / 0.47 mm)
Vibration Frequency Front I / II: 2,400 / 3,000 vpm (40 / 50 Hz)
Centrigual Force Range Front I / II: 38,925 / 33,075 lbs. (173 / 147 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 302.5 gal. (1,145 l)
Application Asphalt
Static Linear Drum Load 173.5 lbs./in. (31.0 kg/cm) front
172.1 lbs./in. (30.8 kg/cm) rear
Weights
Operating Weight 26,954 lbs. (12,226 kg) with ROPS
Axle Load 13,531 lbs. (6,137 kg) front
13,423 lbs. (6,089 kg) rear
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 208.7”
  • Width: 84.4”
  • Total Height: 117.3”
  • Drum Width: 78” (front and rear)
  • Height, loading, min: 84.3”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Spray system with spray bars front and rear
  • Track offset, hydraulic
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Working light
  • Cutting disc
  • Compaction meter HCQ
  • Rotating beacon
  • Radio
  • Automatic engine-off function
  • Heating and air conditioning
  • Edge pressing and cutting equipment
  • Track offset display
  • HCQ navigator
  • Fire extinguisher
  • Tachograph
  • Coming home lighting
  • Tool kit
  • Back-up alarm
  • Drum edge lighting
  • ROPS cabin with non-split doors
  • Dashboard cover
  • HAMM Temperature Meter (HTM)
  • Locking device

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
