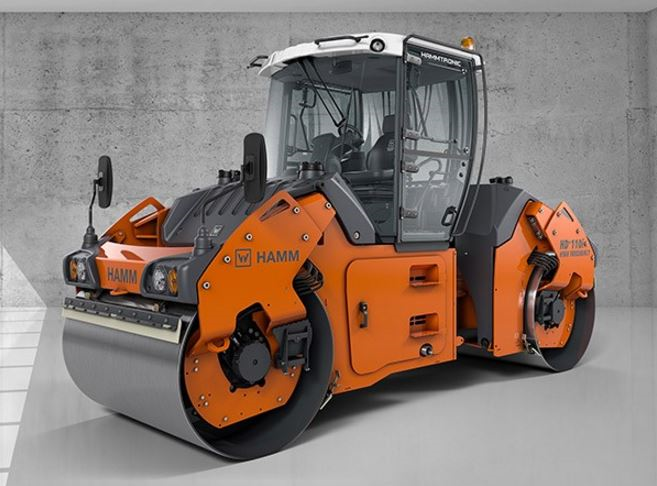

New Hamm HD+ 110i VV-HF Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • Diesel engine with high power and low sound level
  • Pressure sprinkler system with 2 water pumps, spray nozzles visible from driver seat
  • Driver seat including steering wheel and instrument panel can be rotated and moved
  • Clear view of drum surface, its outer edge and working environment
  • Crab steering to increase working width
  • Hydrostatic all-wheel drive for excellent hill climbing ability
Dimensions
Length 192.91 in
Width 70.87 in
Height 117.32 in
Weight 22,491 lbs (ROPS)
28,488.6 (max)
Wheelbase 145.67 in
Ground Clearance Left/Right-31.5 in
Center-13.39 in
Inside Turning Radius 238.19 in
Steering Angle 30°
Drum Smooth/nondivided
Lateral Overhang 2.36 in
Engine
Engine Make Deutz
Engine Model TCD 3.6 L4
Cylinders 4
Horsepower 113.9 HP
Fuel Tank Capacity 45.7 gal
Drivetrain
Steering Type-Articulated Steering
Actuation-Hydrostatic, steering wheel
Speeds Working Gear: 0-3.73 mph
Transportation Gear: 0-7.46 mph
Hydrostatic Drive Wheel motor
Climbing ability Vibration On-35%
Vibration Off-40%
Drive Regulation Hammtronic
Operational
Drum Width 66.14 in
Drum Diameter 47.24 in
Drum Shell Thickness .87 in
Nominal Amplitude Front/Rear I-0.03 in
Front/Rear II-0.01 in
Vibration Frequency Front/Rear I-2,700 vpm
Front/Rear II-4,020 vpm
Centrigual Force Range Front/Rear I-33,075 lbs
Front/Rear II-28,880 lbs
Water Tank Capacity 220.32 gal
Static Linear Drum Load Front-175.83 lbs/in
Rear-169.67 lbs/in
Oscillation Angle 10°
Sprinkler System Type-Pressure
Actuation-interval/manual
Weights
Operating Weight 22,865.85 lbs
Axle Load Front-11,642.4 lbs
Rear-11,223.45 lbs
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage IV/EPA Tier 4
  • Total Length: 192.9”
  • Width: 70.9”
  • Total Height: 117.3”
  • Drum Width: 66.1” (front and rear)
  • Height, loading, min: 84.6”
  • 12 V outlet
  • Central water drain
  • Water tank front and rear, can be filled from both sides
  • Water filtering (triple)
  • Track offset, hydraulic
  • Spray system with spray bars front and rear
  • Vibration-isolated operator’s platform
  • Speed preselect
  • Speed-controlled water sprinkling system
  • Operator’s platform with entry from both sides
  • ECO mode
  • Pressure water sprinkling with interval switch
  • Operating concept Easy Drive
  • Foldable scraper
  • 2 large working and rear view mirrors
  • Heating
  • Coming home lighting
  • Rotating beacon
  • Working light
  • Back-up alarm
  • Track offset display
  • HAMM Temperature Meter (HTM)
  • Automatic engine-off function
  • Edge pressing and cutting equipment
  • Protective roof
  • HCQ navigator
  • Steering column with comfort exit and tiltable dashboard
  • Multifunction armrest, right, foldable
