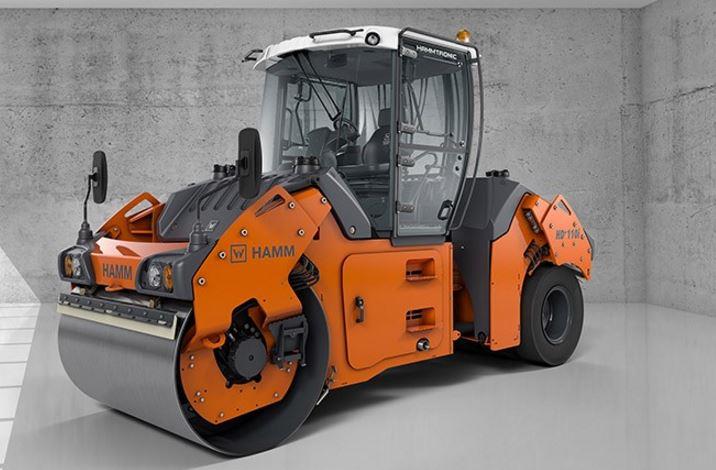

Articulated combi roller with vibratory drum
- Diesel engine with high power and low sound level
- Pressure sprinkler system with 2 water pumps; spray nozzles visible from driver seat
- Driver seat including steering wheel and instrument panel can be rotated and moved
- Clear view of drum surface, its outer edge and working environment
- Crab steering to increase working width
- Hydrostatic all-wheel drive for excellent hill climbing ability
|
|
Length |
189 in. (4,800 mm) |
Width |
70.9 in. (1,800 mm) |
Height |
117.3 in. (2,980 mm) |
Weight |
20,936.47lbs |
Wheelbase |
141.7 in. (3,600 mm) |
Inside Turning Radius |
232.3 in. (5,900 mm) |
Steering Angle |
+/-30° |
Drum |
Front: Smooth/Non-Split |
Engine Make |
Deutz |
Engine Model |
TCD 3.6 L4 |
Engine Type |
4-cylinder |
Horsepower |
113.9 hp (85 kW) @ 2,300 rpm |
Fuel Tank Capacity |
45.7 gal. (173 l) |
Drum Width |
66.14 in. (1,680 mm) |
Drum Diameter |
47.2 in. (1,200 mm) |
Nominal Amplitude |
Front I / II: 0.032 / 0.019 in. (0.81 / 0.47 mm) |
Vibration Frequency |
Front I / II: 2,520 / 3,000 vpm (42 / 50 Hz) |
Centrigual Force Range |
Front I / II: 27,000 / 22,275 lbs. (120 / 99 kN) |
Travel Speed - Forward |
0 - 7.5 mph (0 - 12 km/h) |
Water Tank Capacity |
220 gal. (834 l) |
Application |
Asphalt |
Static Linear Drum Load |
174.3 lbs./in. (31.1 kg/cm) front |
Operating Weight |
20,759 lbs. (9,416 kg) with ROPS |
Axle Load |
11,521 lbs. (5,226 kg) front 9,238 lbs. (4,190 kg) rear |
- Description: Tandem roller with vibrating roller drum and set of tires
- Exhaust emissions Category: EU Stage IV/EPA Tier 4
- Total Length: 192.9”
- Width: 70.9”
- Total Height: 118.5”
- Drum Width: 66.1”
- Height, loading, min: 87.6”
- 12 V outlet
- Central water drain
- Water tank front and rear, can be filled from both sides
- Water filtering (triple)
- Track offset, hydraulic
- Spray system with spray bars front and rear
- Vibration-isolated operator’s platform
- Speed preselect
- Speed-controlled water sprinkling system
- Operator’s platform with entry from both sides
- ECO mode
- Pressure water sprinkling with interval switch
- Operating concept Easy Drive
- Foldable scraper
- 2 large working and rear view mirrors
- Heating
- Coming home lighting
- Rotating beacon
- Working light
- Back-up alarm
- Track offset display
- HAMM Temperature Meter (HTM)
- Automatic engine-off function
- Edge pressing and cutting equipment
- Protective roof
- HCQ navigator
- Steering column with comfort exit and tiltable dashboard
- Multifunction armrest, right, foldable
