Hamm HD 10 VV

Hamm HD 10 VV

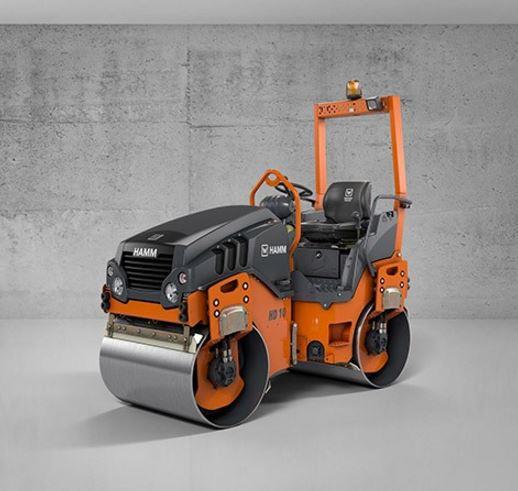

New Hamm HD 10 VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Central suspension point
Dimensions
Length 96.8 in. (2,460 mm)
Width 43.7 in. (1,110 mm)
Height 94 in. (2,390 mm)
Weight 5,457.37lbs
Wheelbase 67 in. (1,700 mm)
Inside Turning Radius 97.2 in. (2,470 mm)
Steering Angle +/-32°
Drum Smooth/non-split
Engine
Engine Make Kubota
Engine Model D1503-M-E3B
Engine Type 3-cylinder
Horsepower 30.7 hp (22.9 kW) @ 2,700 rpm
Fuel Tank Capacity 11 gal. (42 l)
Drivetrain
Drive Hydrostatic
Operational
Drum Width 39.37 in. (1,000 mm)
Drum Diameter 28.3 in. (720 mm)
Nominal Amplitude Front I / II: 0.021 in. (0.54 mm)
Vibration Frequency Front I / II: 3,120 / 4,020 vpm (52 / 67 Hz)
Centrigual Force Range Front I / II: 6,300 / 10,350 lbs. (28 / 46 kN)
Travel Speed - Forward 0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity 47.6 gal. (180 l)
Application Asphalt
Static Linear Drum Load 67.4 lbs./in. (12.1 kg/cm) front
71.1 lbs./in. (12.7 kg/cm) rear
Weights
Operating Weight 7,033 lbs. (3,190 kg) maximum
5,456 lbs. (2,475 kg) with ROPS
Axle Load 2,656 lbs. (1,205 kg) front
2,800 lbs. (1,270 kg) rear
  • Description: Tandem roller with two vibrating roller drums
  • Exhaust emissions Category: EU Stage V/EPA Tier 4
  • Total Length: 99.6”
  • Width: 43.7”
  • Total Height: 97.4”
  • Drum Width: 39.4” (front and rear)
  • Height, loading, min: 69”
  • 12 V outlet
  • 3-point articulation
  • Dashboard with displays, indicator lights and switches
  • Dashboard cover, lockable and weather-resistant
  • Pressure water sprinkling with interval switch
  • Operator’s platform with entry from both sides
  • Left and right drive lever
  • Mechanical battery isolation switch
  • Vibration-isolated operator’s platform
  • Track offset, mechanical
  • Automatic vibration system
  • Water filtering (triple)
  • Central lifting bracket
  • Central water drain
  • Plastic scraper, foldable
  • ROPS, foldable
  • Protective roof, plastic tarpaulin
  • Edge pressing and cutting equipment
  • Back-up alarm
  • Working light
  • Battery isolation switch operated with external activation
  • V-belt protection

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Hamm
MODEL HD 10 VV

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Hamm HD 10 VV

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Hamm HD 10 VV Compactor for Sale

Articulated tandem roller with 2 vibratory drums

  • 3-point swivel joint for optimum driving comfort
  • Ergonomic driver platform
  • Low machine height
  • Convenient maintenance and service
  • Modern instrument panel
  • Optimum front view due to concaving front end
  • Central suspension point
GENERAL INFORMATION
Manufacturer
Hamm
Model Year
Model
HD 10 VV
Condition
NEW
Dimensions
Length
96.8 in. (2,460 mm)
Width
43.7 in. (1,110 mm)
Height
94 in. (2,390 mm)
Weight
5,457.37lbs
Wheelbase
67 in. (1,700 mm)
Inside Turning Radius
97.2 in. (2,470 mm)
Steering Angle
+/-32°
Drum
Smooth/non-split
Engine
Engine Make
Kubota
Engine Model
D1503-M-E3B
Engine Type
3-cylinder
Horsepower
30.7 hp (22.9 kW) @ 2,700 rpm
Fuel Tank Capacity
11 gal. (42 l)
Drivetrain
Drive
Hydrostatic
Operational
Drum Width
39.37 in. (1,000 mm)
Drum Diameter
28.3 in. (720 mm)
Nominal Amplitude
Front I / II: 0.021 in. (0.54 mm)
Vibration Frequency
Front I / II: 3,120 / 4,020 vpm (52 / 67 Hz)
Centrigual Force Range
Front I / II: 6,300 / 10,350 lbs. (28 / 46 kN)
Travel Speed - Forward
0 - 7.5 mph (0 - 12 km/h)
Water Tank Capacity
47.6 gal. (180 l)
Application
Asphalt
Static Linear Drum Load
67.4 lbs./in. (12.1 kg/cm) front 71.1 lbs./in. (12.7 kg/cm) rear
Weights
Operating Weight
7,033 lbs. (3,190 kg) maximum 5,456 lbs. (2,475 kg) with ROPS
Axle Load
2,656 lbs. (1,205 kg) front 2,800 lbs. (1,270 kg) rear
