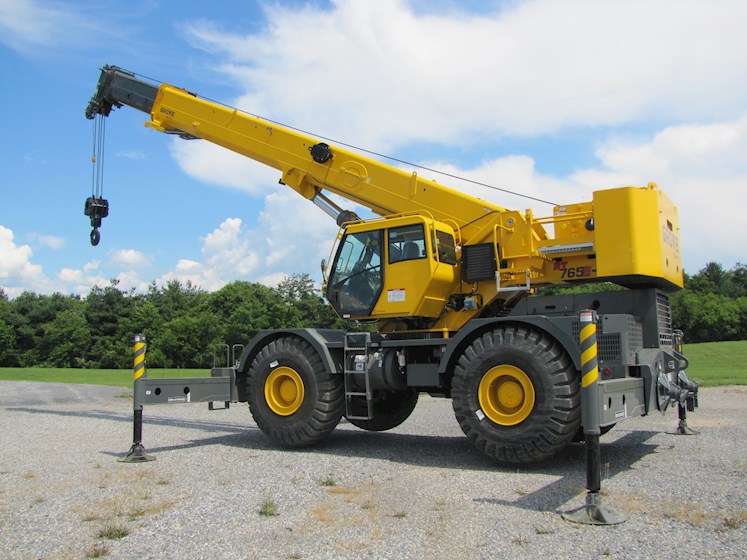

Grove RT765E-2

Grove RT765E-2

The RT765E-2 provides strong lifting performance, along with quick and intuitive operation thanks to the 33,5 m (110 ft) four-section, full power MEGAFORM™ boom. The full vision cab ensures maximum visibility and operator comfort, while higher permissible line pull and faster line speed than competitive cranes allow for less rigging, higher efficiency and productivity on the jobsite.

MEGAFORM™ boom: The superstructure features a full-power four-section MEGAFORM™ boom that can reach to a maximum tip height of 36,4 m (119 ft). The sequence synchronized extension features telescopic boom sections via a pedal or single lever control.

Extensions: An optional bi-fold swingaway lattice extension easily stows on the side of the base boom for easy transport while providing on-board extension from 10,1 m - 17,1 m (33 ft - 56 ft) for a maximum tip height of 53,2 m (174.5 ft). By adding inserts of 6,1 m (20 ft) or 12,2 m (40 ft), the maximum tip height on the RT765E-2 can be extended even further to 59,1 m (194 ft) or 65,2 m (214 ft).

Smooth operation: The RT765E-2 has a quick-reeve boom nose and swingaway alignment device to help operators set up smoothly.

CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data.  Visit www.cranestar.com for more information.
Body
Chassis Box section frame fabricated from high-strength, low alloy steel. Integral outrigger housings and front/rear towing, lifting, and tie down lugs
Cab Full-vision, all-steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat incorporates armrestmounted hydraulic single-axis controllers. Tilt/telescoping steering wheel with various controls incorporated into the steering column. Other standard features include:, hot water heater, cab circulating air fan, sliding side and rear windows, sliding skylight with electric wiper and sunscreen, electric windshield wash/ wipe, fire extinguisher, seat belt, air conditioning, and dual cab mounted work light.
Dimensions
Length 44’7.7”
Width 10.9’
Height 11’10”
Weight 93,925 lbs.
Turning Radius 23’4”
Capacity 65 T (60 t)
Max Tip Height 214 ft
Engine
Engine Make Cummins
Engine Model QSB 6.7 l
Engine Type Diesel, turbo-charged with Cummins Compact Catalyst (CCC) & selective catalytic reduction (SCR) combo muffler, using diesel exhaust fluid (DEF) injection
Cylinders 6
Horsepower 260 HP
Torque Maximum torque: 729 ft lb. at 1500 r.p.m
Max Travel Speed 23 mph (37 km/h)
Fuel Tank Capacity 74 gal. (280 l)
Drivetrain
Drive 4 x 4
Axles Front: Drive/steer with differential and planetary reduction hubs rigid-mounted to frame.
Rear: Drive/steer with differential and planetary reduction hubs pivot-mounted to frame.
Automatic full hydraulic lockouts on rear axle permit 203 mm (8 in) oscillation only with boom centered over the front.
Transmission Rangeshift with 6 forward and 6 reverse speeds (3 speeds high and 3 speeds low). Front axle disconnect for 4 x 2 travel
Hydraulic
Hydraulic Capacity 134 Gallons
Hydraulic System Three main gear pumps with a combined capacity of 465 LPM (123 GPM). Two individual post pressure compensated valve banks. Return line type filter with full flow by-pass protection and service indicator. Replaceable cartridge with micron filtration rating of 5/12/16. Integral oil cooler. System pressure test ports.
Maximum Pressure 4000 PSI
Operational
Brakes Full hydraulic split circuit brakes operating on all wheels. Spring-applied, hydraulically released axle-mounted parking brake
Tires 29.5 x 25 - 28PR bias earthmover type.
Steering Fully independent power steering:
Front: Full hydraulic, steering wheel controlled.
Rear: Full hydraulic, switch controlled.
Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer centered indicating light
Outriggers Four hydraulic telescoping single-stage double box beam outriggers with inverted jacks and integral holding valves. Three position settings, 100%, 50% and fully retracted. All steel fabricated, quick-release type round outrigger floats, 610 mm (24 in) diameter. Maximum outrigger pad load: 41 731 kg (92,000 lb). Outrigger position monitoring system (required for North American, Canada, and E.U. Countries).
Counterweight 14,365 lb. pinned to superstructure.
Gradeability 130% (Based on 42 594 kg [93,902 lb] GVW) 29.5 x 25 tires, pumps engaged, 33,6 m (110 ft) boom, bi-fold extension, aux. hoist and cable, and 66 USt hook block.
Swing Planetary swing with foot-applied multi-disc brake. Spring applied, hydraulically-released swing brake and plunger-type, one position, mechanical house lock operated from cab. *Optional 360° mechanical swing lock.
Swing Speed 2.5 RPM
Outrigger Controls Controls and crane level indicator located in cab
Boom
Boom Type 4-section, full-powered sequenced synchronized boom
Max Boom Length 36 ft - 110 ft
Max Tip Height-Boom 119'
Boom Rotation 360°
Lift Speed 502 fpm (153 mpm)
Hoist Planetary reduction with automatic spring applied multi-disc brake. Grooved drum. Electronic hoist drum rotation indicator and hoist drum cable followers.
Boom Elevation One double-acting hydraulic cylinder with integral holding valve provides elevation from -3° to 78°.
Max Capacity 65 USt
Boom Nose Four nylatron sheaves mounted on heavy-duty tapered roller bearings with removable pin-type rope guards. Quick-reeve type boom nose. *Optional removable auxiliary boom nose with removable pin type rope guard.
Hoist Line Pull Hoist maximum single line pull: 18,134 lb
Maximum single line speed: 502 fpm
Maximum permissible line pull: 16,800 lb. with 35 x 7 class rope
Electrical
Electrical System Three 12-volt maintenance free batteries. 12-volt starting and lighting, circuit breakers, battery disconnect switch.
Lighting Full lighting package including turn indicators, head, tail, brake and hazard warning lights.
  • Four-section, full power MEGAFORM™ boom – Fast and efficient operation on the jobsite.
  • 10,1 m to 17,1 m (33 ft to 56 ft) bi-fold swingaway provides additional reach and versatility to win more jobs.
  • 7620 kg (16,800 lb.) permissible line pull and up to 153 m/min (502 fpm) single line speed - Less rigging, higher efficiency and productivity.
  • Hoist access platform – Better accessibility for rigging and routine maintenance.
  • Full vision cab with a high-output heating & air conditioning system that maximizes operator comfort
  • Single Axis hydraulic controls for smooth operation.
  • Cummins QSB6.7L Tier 4 Final or Tier 3 diesel engine – Powerful and reliable performance.
  • Four modes of steering increase jobsite maneuverability and makes crane positioning easier.
  • Inverted outrigger jacks provide additional protection and ensure maximum reliability.
  • Hydraulic disc brakes on all wheels – No additional air system, lower maintenance costs
  • Auxiliary Hoist Package includes auxiliary hoist with electronic hoist drum rotation indicator, hoist drum cable follower, 152 m (500 ft) of 19 mm (3/4 in) 35 X 7 class wire rope, auxiliary single sheave boom nose.
  • Auxiliary Light and Convenience Package: includes  superstructure mounted amber flashing light, in-cab LMI light  bar, and dual base boom mounted floodlights, rubber mat for  stowage trough
  • “CE” Mark Conformance (sound abatement foam kits, 3rd  wrap indicator, emergency auxiliary steering, dual axis joystick  controllers)
  • Cross axle differential locks (front and rear)
  • Manual pump disconnect
  • Pintle hook - rear
  • 360⁰ positive swinglock
  • Hydraulic removable counterweight
  • 3rd wrap indicator with function lockout for main hoist or  main and auxiliary hoist
  • Wireless windspeed indicator
  • -29° C (-20° F) Cold weather package
  • -40°C (-40° F) Arctic Weather package
  • Vertical LMI light tower (externally mounted)
  • Synthetic rope for main and/or auxiliary hoist
  • Spare tire/wheel
  • CraneSTAR asset management system
