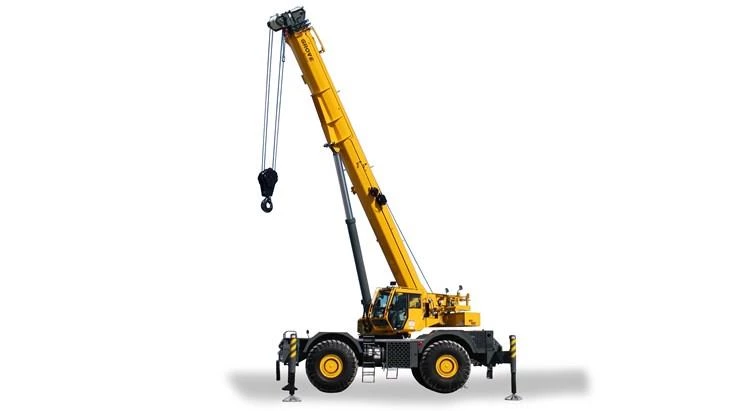

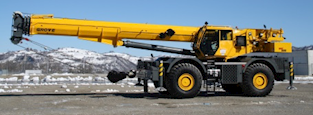

The GRT880 comes with a 12,5 m to 41 m (41 ft to 134.5 ft) four-section, full power boom that provides unmatched lifting performance in its class. This combined with a strong permissible line pull, powerful hoists, Cummins QSB6.7L engine with ECO mode, load sensing hydraulic system and Manitowoc’s Crane Control System (CCS) ensure that the GRT880 will deliver unmatched efficiency on the jobsite. And just like all GRT models, we are so confident in the performance and reliability of the GRT880 that we are backing it with a two-year standard warranty.
Cab: The cab is designed with operator comfort and productivity in mind with full-vision design and 20° tilt for improved viewing at high boom angles. The tilt/telescoping steering wheel can be positioned for optimum use.
Control system: The new Crane Control System (CCS) offers a user-friendly interface, two full graphic displays mounted vertically for easier viewing and a jog dial for easier navigation and data input. The system allows the electronic controllers to be reprogrammed by the operator for specific speed and reaction. Parts commonality across Grove, Manitowoc and Potain product lines enhances operator familiarization and serviceability.
Boom: Lifting performance is enhanced by the 12,6 m – 41,1 m (41.2 ft – 134.7 ft) four-section, full-power boom with sequenced, synchronized extension capability
Backing up our promise: We stand behind our new line of GRT cranes, and we are willing to prove it. With new three-, four- or five-year extended warranty programs as well as a new two-year standard warranty; our GRT line of cranes are built to be GROVE REAL TOUGH.
|Chassis||Parallel box section fabricated from high-strength, low-alloy steel with integral outrigger boxes, front and rear lift, tie-down, and towing lugs.|
|Cab||Operator-controlled 20° hydraulic tilt, full vision, all steel fabricated with acoustical lining and tinted safety glass throughout. Deluxe seat with headrest incorporates armrest-mounted electronic programmable single-axis or dual axis controllers and a jog dial for easier data input. Tilt/telescoping steering wheel with various controls incorporated into the steering column. Other standard features include hot water heater, cab circulating air fan, sliding side and opening rear window, sliding skylight with electric wiper and sunscreen, electric windshield wash/wipe, fire extinguisher, seat belt, air conditioning, and dual cab mounted work lights|
|Turning Radius||Outside 4WS coordinated steer radius: 23.9’
Inside 4WS coordinated steer radius: 16’
|Operating Vehicle Weight||115,632 lb|
|Max Tip Height||223'|
|Engine Model||QSB 6.7 L|
|Engine Type||Diesel, turbo-charged w/Cummins Compact catalyst (CCC) and Selective Catalytic Reduction (SCR) combo muffler, using diesel exhaust fluid (DEF) injection|
|Torque||Maximum torque: 730 lb/ft at 1500 rpm|
|Max Travel Speed||15 MPH w/counterweight installed|
|Fuel Tank Capacity||82 gal|
|Control System||“Graphic Display” RCL load moment and anti-two block system with audio-visual warning and control lever lockout. This system provides electronic display of boom angle, boom length, load radius, boom tip height, maximum permissible load, actual load and warning of impending two-block condition. The work area definition system allows the operator to pre-select and define safe working areas. If the crane approaches the pre-set limits, audio-visual warnings aid the operator in avoiding job site obstructions. ECO mode system to control engine R.P.M. to lower noise and improve fuel consumption|
|Axles||FRONT: Drive / steer with differential and planetary reduction hubs rigid mounted to frame.
REAR: Drive / steer with differential and planetary reduction hubs pivot mounted to frame. Automatic full hydraulic lockouts on rear axle permits 254 mm (10 in) of oscillation only with boom centered over the front
|Transmission||Rangeshift with six forward and six reverse speeds. (Three speeds high and three speeds low). Front axle disconnect for 4 x 2 drive|
|Hydraulic System||Two main pumps  variable displacement piston and  gear with a combined output capacity of 496 L/min (131 gal/min). Return line in-tank filter with full flow by-pass protection and service indicator. Replaceable cartridge with 4 micron filtration rating per ISO cleanliness level of 17/15/12. Carrier mounted oil cooler with thermostatically controlled hydraulic motor driven fan / air to oil. System pressure test ports.|
|Maximum Pressure||4000 PSI|
|Brakes||Full hydraulic split (dual) circuit dry disc operating on all wheels with dual calipers. Parking brake is spring applied / hydraulically released on the front axle input shaft.|
|Tires||29.5 x 25 – 34 bias ply rating|
|Steering||Fully independent power steering.
Front: Fully hydraulic steering wheel controlled.
Rear: Fully hydraulic via separate momentary switch provides 4 steering
modes, front only, rear only, coordinated and crab.
Rear steer not aligned indicator
|Outriggers||Four hydraulic telescoping single stage double box beam outriggers with inverted jack cylinders and integral jack holding valves. Three position settings, 0%, 50%, and fully extended. Aluminum fabricated outrigger floats 609,6 mm (24 in) diameter. Outrigger monitoring system with outrigger beam position display on RCL. screen. Maximum outrigger pad load: 57 244 kg (126,200 lb)|
|Counterweight||Standard 9979 kg (22,000 lb). Hydraulically installed and removed. Controls located on superstructure.vvvv|
|Gradeability||104% to drive train stall based on 52 524 kg (115,797 lb) GVW with 29.5 x 25 tires, standard counterweight, auxiliary hoist and manual bi-fold extension.|
|Swing||Variable speed, planetary swing drive with foot applied multi-disc proportional wet brake. Spring applied, hydraulically released s|
|Swing Speed||2.0 RPM|
|Outrigger Controls||Controls and crane leveling indicator located in cab. Extension and retraction are through the CCS system|
|Max Boom Length||41.2’-134.7’|
|Max Tip Height-Boom||41.2'-134.7'|
|Hoist||Planetary reduction driven by axial piston motor. Grooved drum with automatic spring applied multi-disk wet brake. Electronic hoist drum rotation indicator. Third wrap indictor with hoist function cut-out standard|
|Boom Elevation||One double–acting hydraulic cylinder with integral holding valve provides elevation from -3° to +80°.|
|Max Capacity||80 USt|
|Boom Nose||Five nylatron sheaves mounted on heavy-duty tapered roller bearings with removable pin-type guards. Quick-reeve type boom nose. Removable single sheave auxiliary boom nose with removable pin type rope guard.|
|Hoist Line Pull||Maximum hoist single line pull:
1st layer: 24,100 lb.
3rd layer: 20,600 lb.
6th layer: 16,900 lb.
Maximum permissible single line pull: 17,160 lb. with 35 x 7 class rope
Maximum hoist single line speed (no load): 430 ft/min
|Electrical System||Two 12 V maintenance-free batteries with disconnect. 24 V system / 24 V lighting|
|Lighting||Full lighting including turn indicators, head, tail, brake, and hazard warning, and two work lights mounted on cab front|
