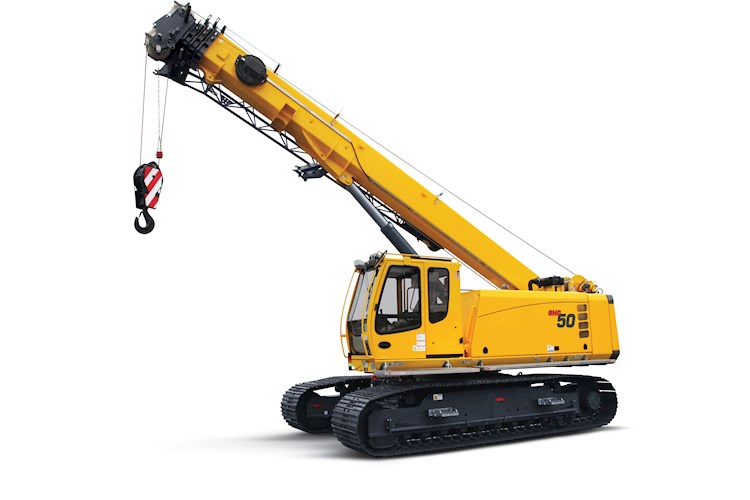

A compact powerhouse the GHC50 transports to the jobsite in one truck with low gross vehicle weight and ground-bearing pressure with a boom measuring 9.4 m - 30.4 m (30 ft 10 in – 99 ft 9 in).
Comfort redefined: Operator cab is designed to deliver maximum comfort while incorporating conveniently located joystick controls for precise operation. Cab comes equipped with an integrated rated capacity limiter, air suspension seat, color monitor for up to four cameras and precise climate control. The cab can tilt up to 15° providing the operator additional comfort when working at long boom and extension lengths.
Travel made easy: Transportation to the jobsite can easily be accomplished in one load. Once on the jobsite, the GHC50’s narrow dimensions provide excellent maneuverability in confined areas. The strong undercarriage provides 100 percent pick and carry capability and work up to 4° of inclination. The hydraulically extendable tracks allow for three working gauges for maximum flexibility on the job.
Strong telescopic boom: The GHC50 comes equipped with a robust fullpower four-section boom that allows for telescoping under load. The main boom offers 9,4 m – 30,4 m (30 ft 10 in – 99 ft 9 in) of reach. This paired with the standard 6,5 m (21 ft 4 in) offsettable swingaway extension provides a maximum tip height of 39,3 m (129 ft).
CraneSTAR is an exclusive and innovative crane asset management system that helps improve your profitability and reduce costs by remotely monitoring critical crane data. Visit www.cranestar.com for more information.
|Cab||Large capacity operator´s compartment that includes an air suspended operator’s seat with lumbar support, heated seat, headrest, 3 inch safety belt, ergonomic control panels, load sensing electric dual axis joystick controls, travel pedals and levers, exceptional sound insulation, sliding door (includes sliding window), excellent all around visibility, tinted safety glass, front tilt window, large skylight w/ sun protection, windshield and roof wiper/washer system, radio w/ CD player, climate control (A/C, heat and defrost), fire extinguisher, and 15˚ tilt capability for improved overhead vision and ergonomic posture. Also equipped with a 7 inch monitor in cab for rear view, right side and hoist cameras.|
|Frame||Durable all steel welded construction with extendable cross members.
Side Frame: Four steel side frame beams that can be hydraulically extended or retracted via controls in the cab. 900 mm (36 in) triple bar maintenance free track shoes.
Retracted gauge: 2,60 m (8 ft 6 in)
Intermediate gauge: 3,30 m (10 ft 10 in)
Extended gauge: 4,10 m (13 ft 6 in)
*Note: These widths are from centerline to centerline of crawlers.
|Capacity||50 T (45 t)|
|Transport Length||421.6 in. (10,700 mm)|
|Transport Height||125.2 in. (3,180 mm)|
|Transport Width||137.8 - 196.9 in. (3,500 - 5,000 mm)|
|Max Tip Height||149 ft|
|Engine Model||QSB 4.5 l|
|Engine Type||Diesel, turbocharged with Cummins Diesel Oxidation Catalyst (DOC) exhaust and Selective Catalytic Reduction (SCR)|
|Horsepower||173 hp (129 kW)|
|Max Travel Speed||0.85-1.55 MPH|
|Fuel Tank Capacity||95 Gallons|
|Hydraulic Capacity||134 Gallons|
|Hydraulic System||Load sensing / LUDV hydraulic system with hydraulic and pilot controlled work functions, and load limit sensing control. Single variable-displacement piston pump with a two-section gear pump. High performance, 3 micron filtration system with water absorption contamination indicator for higher oil purity and extended oil service life.|
|Maximum Pressure||4786 PSI|
|Counterweight||8900 kg (19,621 lb) total (2 pieces)|
|Swing||Two-speed, compact planetary gears with slant axis hydraulic motor and integrated brake valves. Sealed, externally geared slewing ring that allows for 360˚ of continuous rotation. Electronically applied service brake operated via foot pedal. Spring applied, hydraulically released parking brake. One position, manually pinned house lock.|
|Swing Speed||0-2 RPM, variable|
|Boom Extensions||21 ft. 4 in. (6.5 m) offsettable, lattice, 1-piece swingaway|
|Boom Type||4-section, full power, sequenced-synchronized, telescopic boom|
|Max Boom Length||99 ft. 9 in. (30.4 m)|
|Max Tip Height-Boom||107'|
|Hoist||Two-speed hoists driven via an axial piston hydraulic motor with compact planetary gear. Spring-loaded disc brake. Grooved drum with drum rotation indicator for both hoists that is located in the joystick controls.|
|Boom Elevation||One double-acting hydraulic cylinder with integral holding valves. Elevation: -6˚ to 80˚|
|Max Capacity||50 USt|
|Boom Nose||Five nylatron sheaves on heavy-duty roller bearings with removable rope guards. Quick reeve type boom nose. Equipped with removable auxiliary boom nose|
|Hoist Line Pull||Maximum hoist pull (first layer): 14,230 lb.
Maximum permissible single line pull: 11,000 lb.
Maximum single line speed: 400 ft/ min
|Electrical System||24 volt with two 12-volt, maintenance-free batteries. Includes battery disconnect switch.|
|Lighting||Lighting package includes two halogen lights integrated into the front side of the cab roof and one LED headlight on the upper carriage, right side|
