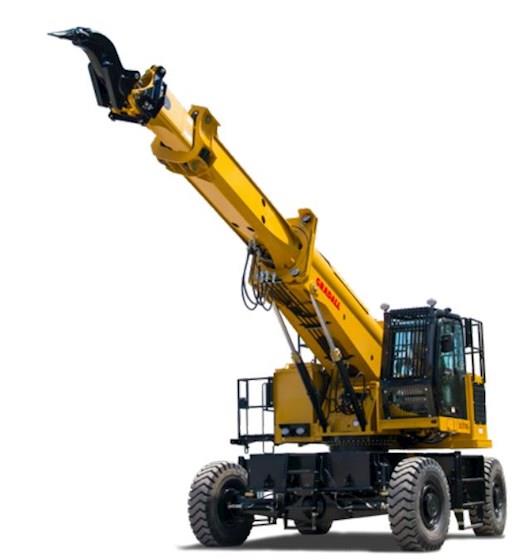

Gradall XL 7310 V Wheeled Steel Mill Excavator

On crawler or rubber tire undercarriages, Gradall steel mill maintenance machines are designed for full versatility, efficiently performing steel mill maintenance work in hot, challenging conditions. Tough enough to handle the vigorous pounding and vibrations typically experienced in steel mills, these Gradall machines set the global standard for durability and productivity.
Body
Cab All-weather cab with tinted safety glass windows, acoustical lining, four-way adjustable operator’s seat, AM/FM radio, filtered fresh air heater, defroster and A/C. Front window has heat resistant glass. Rearview mirrors on right and left sides. Standard equipment includes operator’s seat belt and swing lights.
Dimensions
Length 41’3” (wo/scaling hook)
43’5” (w/scaling hook)
Width 13’4”
Height 13’8”
Weight 77,500 lbs.
Wheelbase 12’6”
Ground Clearance 1’4”
Turning Radius 38’
Fuel Tank Capacity 90 Gallons
Transport Length W/Scaling Hook-43'0"
Transport Height W/Scaling Hook-13’8”
Transport Width 13'4"
Working Height Max: 14’3” (Boom below grade)
Maximum Slope 30°
Engine
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f
Cylinders 4
Horsepower 173 HP
Net Horsepower 153 HP
Cooling Liquid cooled
Torque 590 ft lb.
Air Cleaner Two-stage dry type air cleaner w/centrifugal pre-cleaner and safety element
Rated RPM 2200 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Axles Rigid mount rear axle
Oscillating front steer axle with automatic lock-out cylinders
Transmission Full-time 4 x 4 drive with 2-speed Powershift transmission
Starter 24 volt starter
Brakes Four-wheel enclosed sealed wet-disc brakes
Tires 16.00 x 25 (28 ply)
Gradeability 47%
Alternator 100 amp alternator
Hydraulic
Pump One load-sensing, axial piston pump; oil flow 0-110 gpm (0-416 L/min)
Tandem gear pump (steering, brake/pilot) 10 gpm (38 L/min), 6 gpm (23 L/min)
Operating Pressure Hoist: 4,900 PSI
Tilt: 2,400 PSI
Swing: 4,500 PSI
Tool: 4,900 PSI
Telescope: 3,300 PSI
Propel: 4,900 PSI
Pilot System: 550 PSI
Braking & Steering: 2,400 PSI
Hydraulic Cylinders Six Cylinders:
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist cylinders: 4.25” ID, 3.0” rod, 53.43” stroke
One telescope: 5.0” ID, 3.25” rod, 13’6” stroke
Two single-acting axle oscillation cylinders: 4.528” ID, 4.528” rod, 6.25” stroke
Oil Capacity 61 Gallons
Hydraulic Motors Swing: 68 HP
Tilt: 28 HP
Propel motor: 113 HP
Operational
Dig Depth 11’
Travel Speed - Forward 11 mph
Boom Rotation Torque: 18,375 ft. lb.
Speed: 5.3 RPM
Max. Radius 47’10” (at Groundline)
Boom Telescope 13’6”
Boom Tilt 360°
Boom Force 27,700 lbs.
Rated Ripper Tooth Force 19,888 lbs.
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Clearance 10'0"
Tool Pivot Angle 165°
Max. Work Height 14’3”
Boom Pivot Angle 75°
Battery
Battery Two SAE #C31-S 1000 CCA batteries



  • CHASSIS DESIGN
    • Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
    • Crawler or rough terrain rubber tire undercarriage
    • On crawler models, dual range high torque piston motor powers each track, along with three-stage planetary drive, integral speed limiting valve and automatic spring-set hydraulic release wet disc parking brake
    • Triple grouser crawler excavator pads available in a choice of widths enhance tracking ability, with high range travel speeds up to 3.4 mph
    • Tracks counter-rotate to pivot machine about the swing centerline
    • Single-point lifting yoke available
    • Stainless steel braided hose and fire sleeves
    • Crawler tracks and foam filled or solid rubber tires are fire resistant
    • Heat resistant shields protect rubber tires
    • Wheeled models have oscillation lock cylinders and strong box plate construction, enabling work in any direction without outriggers
  • BOOM
    • Heavy-duty boom rollers, along with an exceptionally rugged boom and tilt motor at rear end of the boom
    • Full boom performs 360° continuous rotation for efficient prying action at any angle
    • Internal metal hose and tube clamps
    • No loss of power to attachment tilting capability
    • Consistent boom force
    • Rugged boom telescopes out up to 52’
    • Low profile telescoping action, reaching deep into furnaces
    • Full-length boom visibility during the entire dig cycle
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
    • Excellent visibility of the boom through the entire working cycle
    • Standard air conditioning
    • Window guards
    • High temperature glass
  • ADVANCED SYSTEMS
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
    • Combined electrical system for chassis and excavator delivers advanced, effective operation
  • PERFORMANCE
    • Short tail swing to maneuver and work in tight quarters
    • Heavy frame for lateral support
    • Heavy boom cradle
    • Crawlers have thicker grouse pads for work at the side of the carrier
    • Triangular telescoping boom design delivers full power and speed through the working range
    • Electronic joysticks provide precise control over boom and attachment positioning
  • ATTACHMENTS
    • Hydraulic Hammers
    • Pneumatic Hammers
    • Tap Hole Drill
    • Double Tooth Steel Mill Ripper
    • Single Tooth Steel Mill Ripper
    • Core Drill
    • Rippers
    • Excavating Buckets (28”, 36”, 48”)
  • OPERATOR CAB
    • Optional rollover protection
